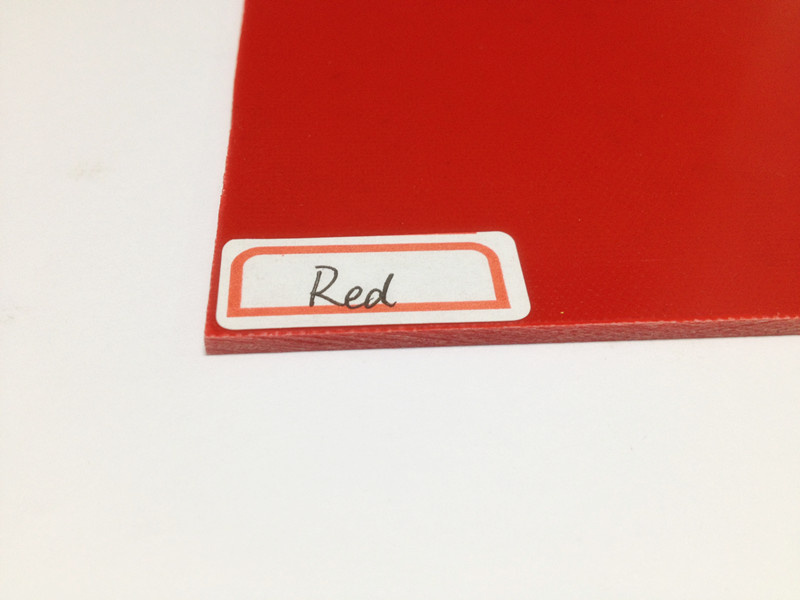

Red G10 for Knife Handle Makers
Product Specifications
| Prod Model: |
G10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sheet Size: |
915*1220/1020*1220mm |
| Thickness: |
0.5-200mm |
| Application: |
Switch Baseplate |
| Type: |
Solid |
| Material: |
Fiberglass |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
20KV~100KV |
| Brand: |
Nova |
Product Description
Advantages:
Our G10 is first quality with good structure, absolutely no foreign matter or defects of any kind, very closed thickness tolerance, flat and straight panel, smooth and clean surfaces.* very bright color, especially suitable for fins application.* absolutely no foreign matter or defects of any kind.* very closed thickness tolerance, flat and straight panel suitable for CNC machining.* high flexural & impact strength.* good structure with clear layer.* customize color available.Applications:Our Colored G10 has high flexural & impact strength, good machining quality, and bright color,Especially be suitable for Surfboard fins, Knife handle, and other sport appliances.Colored G10 Epoxy Laminate can be made into Single colors or Multi-layered colors (G10 Mixed Color).Usual colors available in: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, and many others.We also can customize colors according to sample or color code.Specifications:1) Grade: G102) Usual Colors: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, etc.3) Thickness Range: 0.5mm to 50mm4) Sheet Size: 915*1220mm; 1020*1220mm5) Min. Order Quantity: 250 kgs in a lotElectrical Data
Dielectric Breakdown-A --------------------------- 45 kV
Dielectric Breakdown-D48/50 ------------------- 45 kV
Permittivity-A ---------------------------------------- 4.5
Permativity-D24/23 -------------------------------- 4.8
Dissipation Factor-A ------------------------------ 0.022
Dissipation Factor-D24/23 --------------------- 0.031
| Epoxy glass fabric laminated sheet G10/FR4 |
| Physical Data |
| Density ----------------------------------------------- 1.95 g/cm 3 |
| Water Absorption -.125" ------------------------- 0.12 % |
| Temperature Index -------------------------------- 140± 5 °C |
| Rockwell Hardness -------------------------------- 110 M scale |
| Bond Strength--------------------------------------- 2200 Lbs |
| Flexural Strength-LW-A-.125" ------------------ 457 MPa |
| Flexural Strength-LW-E 1/150 ----------------- N/A |
| Izod Impact Strength-LW ------------------------ 7 Ft-lbs/in |
| Compressive Strength-Flatwise ---------------- 60000 Psi |
| Flammability------------------------------------------94V0 |
Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.
We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.
Nova supplies the following products:
1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)
2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)
3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)
4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.
Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.
Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
