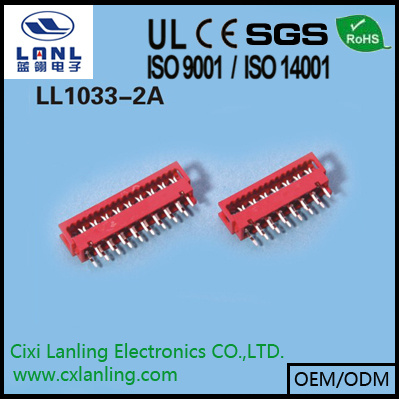

Red IDC Socket Micro Match Connector
Product Specifications
| Prod Model: |
LL1033-2A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Red IDC Socket Micro Match Connector: |
Red IDC Socket Micro Match Connector |
| Plastic: |
PBT |
| Contact: |
Copper |
| Plating: |
Gold,Sn |
| Pin: |
4--26pin |
| Application: |
Red IDC Socket Micro Match Connector |
| Gender: |
Male |
Product Description
Red idc socket micro match connector
www.cxlanling.com
1. High quality
2. Good prices
3. Fast delivery
4. Prompt feedback
Our products include Pin Header, Female Header, Box Header, Shrouded Header, IDC Socket, Ribbon Flat Cable, Card Edge Connector, Zif Socket, Machine Pin Series, IC Socket, DIN41612, Mini Jumper, D-Sub Connector, D-Sub Metal&Plastic Hoods, Dip Switches, PLCC Socket, Circular Micro Jack Connector, Waterproof Connector, Breadboard
|
Material: |
|
Insulator:Polyester,Nylon 46,UL94V-0 |
|
Contacts:Brass/Phosphor Bronze T=0.25 |
|
Plating:Tin plated |
|
Electrical Characteristics: |
|
Contact Resistance:20MΩ max.at DC100mA |
|
Insulation Resistance:1000MΩ min.at 500V DC |
|
Withstanding Voltage:500V AC/rms 50Hz For 1 min |
|
Current Rating:1AMP |
|
Operating Temperature:-40-105°C |
Cixi Lanling Electronic Co., Ltd is a professional manufacture engages in R&D and marketing in the field of Smart Electrical Meter, Industry Computer, Consumer Electronics, Telecommunication etc. LANLING has passed through ISO9001: 2008 quality management system and ISO14001: 2004 environment management system certification. Most of our products have passed through CE, UL certification etc. Via continuous innovation and effort, LANLING is becoming more competitive.
Our products include Pin Header, Female Header, Box Header, Shrouded Header, IDC Socket, Ribbon Flat Cable, Card Edge Connector, Zif Socket, Machine Pin Series, IC Socket, DIN41612, Mini Jumper, D-SUB Connector, D-SUB Metal&Plastic Hoods, DIP Switches, PLCC Socket, Circular Micro Jack Connector, Waterproof Connector, Breadboard etc. All of our products fit for the standard of EU RoHS environmental protection. All the products we manufacture are sent to Shanghai SGS test institute at regular intervals every year. Otherwise, we have independent lab, which can complete the performance test of electronics, machinery and environment. Testing instruments include humidity tester, automatic pull & push tester, micro hardness tester, CCD image measuring apparatus, elongation force tester, temperature rise tester, salt spray tester, dielectric withstanding voltage tester, contact resistance tester, insulation resistance tester, pressure measuring apparatus, rockwell, IR reflow machine and vibration tester etc.
With high quality, competitive prices & fast delivery, our products have been favored by merchants both at home and abroad. Up to now, we have established a long and strong business relationship with many domestic and overseas importers and wholesalers all over the world.
We appreciate your care and support, and let us, hand by hand, create a brilliant future together!
