Hangzhou Zihui New Materials Co., Ltd. >> Reducer Eccentric Pipe

Reducer Eccentric Pipe

Name: Reducer Eccentric Pipe
Brand: China-Manufacturer-Directory.com
SKU: 730695515
Availability: InStock
Rating: 4.8 (111 reviews)

Supplier:	Hangzhou Zihui New Materials Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	; ; ; Reducer eccentric pipe
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	HDPE

Product Description

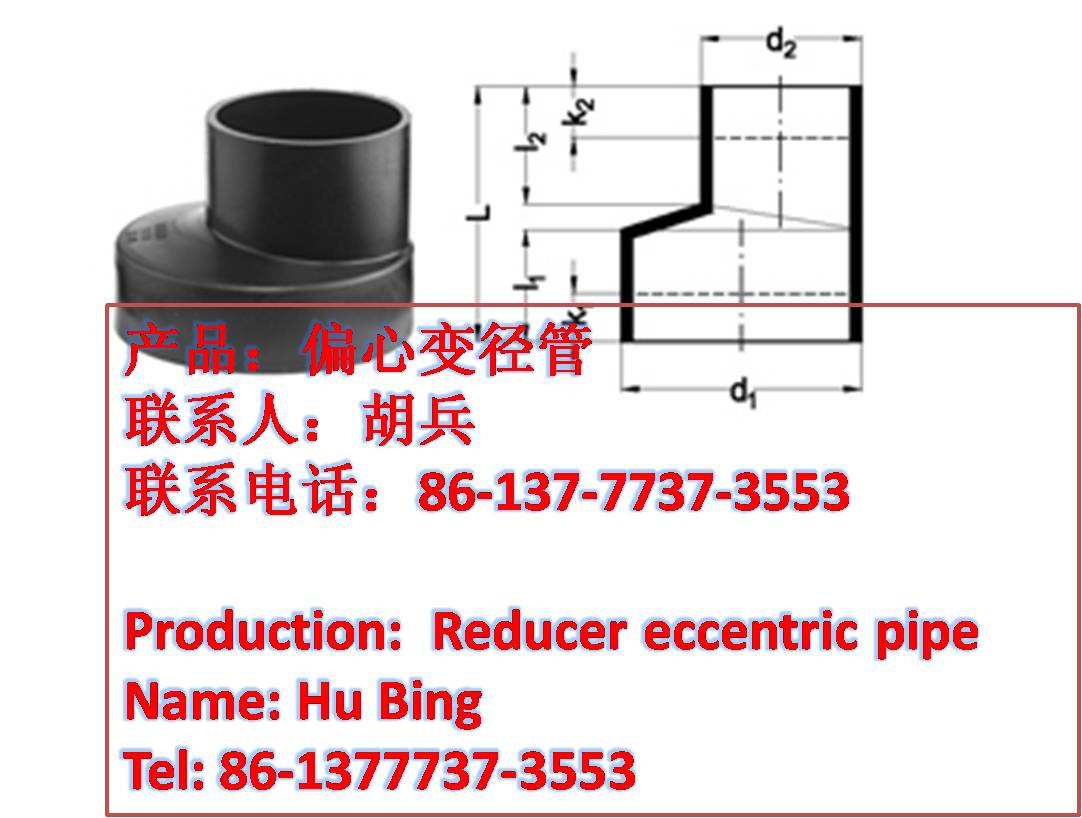

Specification(mm) Related data please correspond to the root diagram
D1 d2 L l1 l2 k1 k2 kg
50 40 80 35 37 20 20 0, 0333
56 40 80 35 37 20 20 0, 0366
56 50 80 35 37 20 20 0, 0385
63 40 80 35 37 20 20 0, 0422
63 50 80 35 37 20 20 0, 044
63 56 80 35 37 20 20 0, 0451
75 40 80 35 30 20 20 0, 0493
75 50 80 35 37 20 20 0, 0488
75 56 80 35 37 20 20 0, 0518
75 63 80 35 37 20 20 0, 0535
90 40 80 30 33 20 20 0, 0643
90 50 80 30 34 20 20 0, 0659
90 56 80 30 36 20 20 0, 0685
90 63 80 30 39 20 20 0, 069
90 75 80 30 44 20 20 0, 0699
110 40 80 31 34 20 20 0, 0875
110 50 80 31 34 20 20 0, 0951
110 56 80 31 35 20 20 0, 0948
110 63 80 31 34 20 20 0, 0955
110 75 80 31 36 20 20 0, 0951
110 90 80 31 41 20 20 0, 1049
125 50 80 35 37 20 20 0, 11
125 56 80 35 37 20 20 0, 11
125 63 80 35 37 20 20 0, 12
125 75 80 35 30 20 20 0, 1254
125 90 80 35 32 20 20 0, 1282
125 110 80 36 36 20 20 0, 1374
160 110 80 28 36 20 20 0, 2163
160 125 80 32 36 20 20 0, 2252

(mm) Specification(mm) Related data please correspond to the root diagram
d₁	d₂	L	l₁	l₂	k₁	k₂	kg
50	40	80	35	37	20	20	0,0333
56	40	80	35	37	20	20	0,0366
56	50	80	35	37	20	20	0,0385
63	40	80	35	37	20	20	0,0422
63	50	80	35	37	20	20	0,044
63	56	80	35	37	20	20	0,0451
75	40	80	35	30	20	20	0,0493
75	50	80	35	37	20	20	0,0488
75	56	80	35	37	20	20	0,0518
75	63	80	35	37	20	20	0,0535
90	40	80	30	33	20	20	0,0643
90	50	80	30	34	20	20	0,0659
90	56	80	30	36	20	20	0,0685
90	63	80	30	39	20	20	0,069
90	75	80	30	44	20	20	0,0699
110	40	80	31	34	20	20	0,0875
110	50	80	31	34	20	20	0,0951
110	56	80	31	35	20	20	0,0948
110	63	80	31	34	20	20	0,0955
110	75	80	31	36	20	20	0,0951
110	90	80	31	41	20	20	0,1049
125	50	80	35	37	20	20	0,11
125	56	80	35	37	20	20	0,11
125	63	80	35	37	20	20	0,12
125	75	80	35	30	20	20	0,1254
125	90	80	35	32	20	20	0,1282
125	110	80	36	36	20	20	0,1374
160	110	80	28	36	20	20	0,2163
160	125	80	32	36	20	20	0,2252

Hangzhou Zihui New Materials Co., Ltd is an enterprise incorporating industry and trading. Our company is located in the southpart of QianTang River(HangZhou) which is next to Hangzhou XiaoShan International Airport and the bases of logistics. Zihui has its self-support Import and Export power.

Zihui is a specialized manufacturer of PPR and HDPE pipe fittings and HDPE Drainage system fittings. Our Main products are Reducer Eccentric, Bend 45° , Bend 90° , Y-Branch 45° , Electrocution coupler, Branch 88.5° , Solvent fittings, Clean out 90° Fittings, Expansion socket, U-staps, P-staps, Floor drain, Rain strainer and so on.

Our tenet is "quality first, sevice is supreme". We sincerely welcome customers to cooperate with us to build a brighter future!
