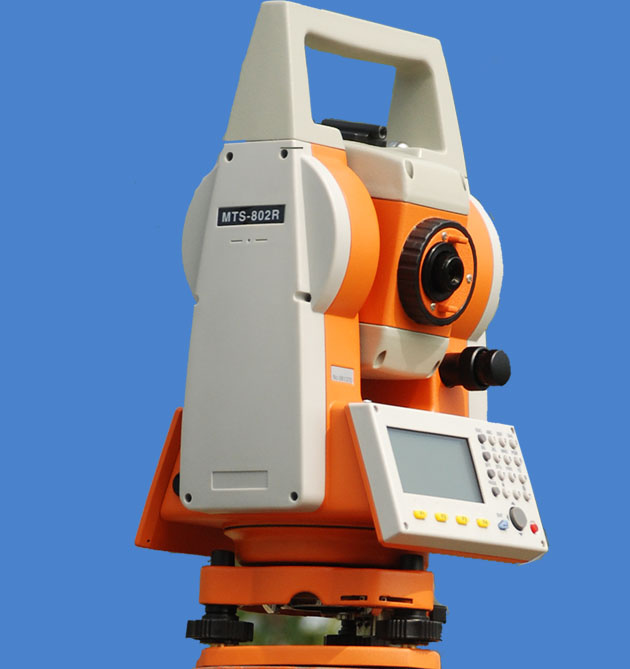

MATO Reflectorless Total Station MTS 802R
1.Avaiable three colour : green , yellow , orange and white
2. Two language version: english , Portuguese
3.Reasonable prcies and high quality
4. Measurement range 250m Reflectorless
5.perfect colour :orange and white
MAIN SPECIFICATION
MODEL MTS-802R
Telescope
Image Erect
Magnification 30X
Effective Aperture 45mm(DTM 50mm)
Resolving Power 4"
Field Of View 1° 30'
Minimum Focus 1.5m
Distance Measurement(under Fair Weather Condition)
Range 1P 5.0km
Sheet 800m
Accuracy 2mm+2ppmxD
Minimum Count 1mm
Distance Unit ft. Or m selectable
Measuring Time
Fine 1.8sec. (first time2.5sec. )
Tracking 0.4 Sec.
Maximum display 999999.999m
Atmospheric Correction
Temperature C or F
Atmospheric Pressure hPa/mmH/inHg
Atmospheric Deflection &
Earth Curvature Correction k=0.14/0.20/0
Prism Constant 0 mm / 30 mm
Angle Measurement
Measurement Method Incremental Photoelectronic Encoder
Detection Method
Horizontal Dual
Vertical Dual
Accuracy 2"
Minimum Readout 1"and 5"
Sensitivity of Vials
Plate Vial 30"/2mm
Circular Vial 8'/2mm
Vertical Compensation Available
Type Liquid-electric detection/Plate level
Compensation Range +/-3'
Resolution 1"
Optical Plummet
Image Erect
Magnification 3X
Focus Rang 0.5m-infinity
Display Double Side, LCD, Four-line Display
Data Port RS-232
Battery Lithium Rechargeable
Voltage 7.4VDC
Operation Time Distance and angle measurement: 8.5 hours; Angle measurement 30 hours
Charging Tine 2 hours
