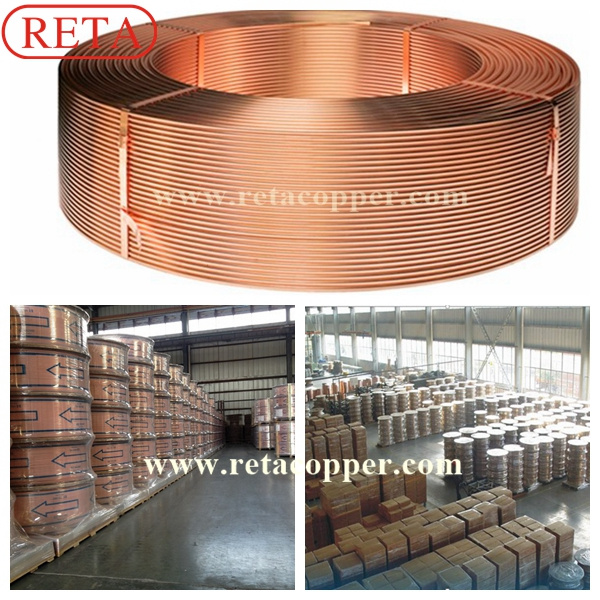

Refrigeration Level Wounded Coil
| Price: |
US $ 6.0Kg |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Packaging & Delivery
| Packaging Details: | Ends capped,in shrinking-wrapped bag,then into cardboard box Can be customized Plastic Bag Packing Carton Packing (with drier) Wooden Pallet Plastic Film Packing |
| Delivery Detail: | 12~28 days |
Packing of Copper Tube
|
- Plastic film package
- Plastic wrapping
- Wooden pallet
- and according customer request
|
Capping&Marking of Copper Tube
|
- silicone cap
- lable
- print words
- and according customer request
|
Chemical and Mechanical Property of Copper Tube
|
| Copper Alloy No. | Chemical Composition | Temper | Mechanical Property | | Copper %(min) | Phosphorus % | Tensile Strength (Mpa) | Elongation % | | C12200 | 99.90 | 0.015-0.040 | O60 | ≥205 | ≥40 | | C12200 | 99.90 | 0.015-0.040 | O50 | ≥245 | / |
|
Specification(for reference)
|
| Type | size (inch) | O.D. (mm) | W.T. (mm) | Alloy No. | Temper | Tensile strength (MPa) | Elongation (%) | Burst pressure (MPa) | |
| Coil | 1/4 | 6.35 | 0.7 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 3/8 | 9.53 | 0.8 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 1/2 | 12.70 | 0.8 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 5/8 | 15.88 | 1.0 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 3/4 | 19.05 | 1.0 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 1/4 | 6.35 | 0.6 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 3/8 | 9.53 | 0.6 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 1/2 | 12.70 | 0.7 | T2 TP2 | M | ≥205 | ≥40 | 4.2 | | 5/8 | 15.88 | 0.9 | T2 TP2 | M | ≥205 | 10-30 | 4.2 | | 3/4 | 19.05 | 1.0 | T2 TP2 | M | ≥205 | 10-30 | 4.2 | | Straight length | 7/8 | 22.23 | 1.1 | T2 TP2 | Y2 | 245-320 | 10-30 | 4.2 | | 1 | 25.40 | 1.1 | T2 TP2 | Y2 | 245-320 | 10-30 | 4.2 | | 1 1/8 | 28.58 | 1.2 | T2 TP2 | Y2 | 245-320 | 10-30 | 4.2 | | 1 1/4 | 31.75 | 1.2 | T2 TP2 | Y2 | 245-320 | 10-30 | 4.2 | | 1 3/8 | 34.93 | 1.3 | T2 TP2 | Y2 | 245-320 | 10-30 | 4.2 | | 1 1/2 | 38.10 | 1.4 | T2 TP2 | Y2 | 245-320 | 10-30 | 4.2 | | 1 5/8 | 41.28 | 1.5 | T2 TP2 | Y2 | 245-320 | 10-30 | 4.2 | | Remarks | Metric specifications above case, take approximation. |
|
| Prod Model: |
Refrigeration LWC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Range: |
4.76mm ~ 22.23mm |
| Wall Thickness: |
0.25mm ~ 1.5mm |
| Type: |
LWC |
| Shape: |
Round |
| Application: |
Oil Cooler Pipe |
| Alloy: |
Alloy |
| Certification: |
RoHS |
| Grade: |
TP2 |
| State: |
Soft |
| Customized: |
Customized |
| Standard: |
ASTM B280 , ASTM B68, Jish 3300 |
Reta Copper Industries Co., Ltd, established in 2002 year. We're specialized in HVACR copper
Tube, environmental protection copper water tubes and copper fittings. Our company owned modernized production lines, first-class facilities, management and R&D team. After 8-years steady exploitation and expansion, our export turnover is exceeding 300 millions in US dolloars, and our main customers are the world famous companies in refrigeration field, such as YORK, CPS, WAPCO AND FRIGO etc.
The main products are: LWC(Plain), LWC(Inner-Grooved), Pancake Coils, ACR Straight Tubes,
Capillary Tubes, Copper Water Tubes, Copper Fittings, Insulated Copper Tubes and Plastic-
Coated Copper Tubes, all products are produced strictly according to ASTM, EN, BS, JISH, GB/T
Standard and widely used for HVACR and fluid transmission.
Reta Copper Industrial Co., Ltd which located in Ningbo which transportation is very convient.
45minutes to Hangzhou and 80 minutes to Shanghai by CRH Express Train.
We sincerely hope Long Term and Mutual Benefit cooperation could be entered with all of Customers from various parts of the World. You will find our products will sell very well with its Superior in Quality, Moderate in Price and attractive design on packings.
As for more detail, please refer to our website: www.retacopper.com
Welcome Inquiry us and visit our company.
