Product Specifications
| Prod Model: |
IG-016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
500~1200mm |
| Width: |
500~1000mm |
| Thickness: |
0.8~2.0mm |
| Standard: |
Standard |
| Usage: |
Valve |
| Material: |
Asbestos |
Product Description

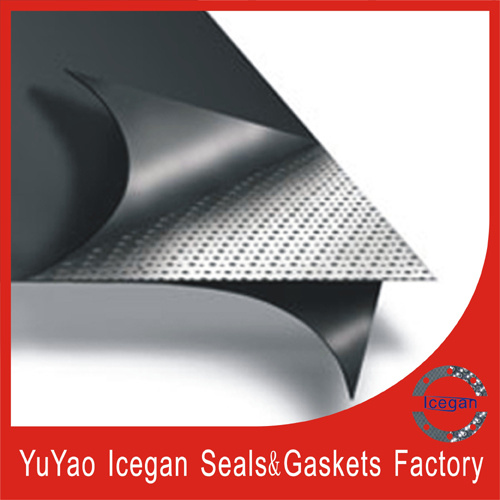

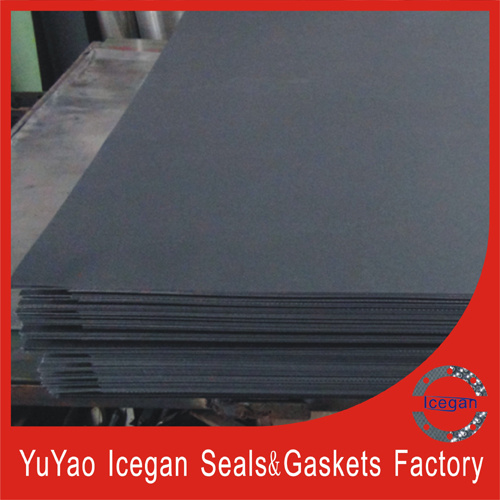

Reinforced non-asbestos composite sheet is to use two sides non-asbestos copy board and middle 0.18 ~ 0.25 mm carbon steel tinplate sprint composites.The product has good properties, such as swelling, sealing and long service life.Composite structure:Non-asbestos copy paper + blunt tooth tin + non-asbestos copy paper.
Quick DetailsPlace of Origin:Ningbo, China (Mainland)
Brand Name:ICEGAN
Model Number:IG-016
Material:Non-Asbestos with inside metal,non-asbestos and Metal
Shape:Flat Gasket
Standard or Nonstandard:Standard
Type:Non-asbestos Gasket Sheet
Technical parameters:
Density:> 1.40 g/cm3
Compression ratio:8% - 12%
Resilient rate:> 50%
75 # aviation kerosene (23 ~ 30 ºC (5 h)
Oil absorption rate:< 10%
Thickening rate:< 10%
Soak 20 # aviation lubricating oil (150 ºC (5 h)
Oil absorption rate:< 15%
Thickening rate:< 10%
Regular size:
Length:500 mm, 1000 mm, 1200 mm, 1500 mm
Width:500 mm, 512 mm, 800 mm, 1000 mm
Thickness:1.0 -- 2.5 mm
Reinforced non-asbestos composite sheet can be cut into various types of gaskets, mainly used in automobile, agricultural machinery, motorcycles, engines, water pumps and air conditioners, etc., can also be used for high strength gasket and the cylinder gasket, etc.
Packaging & Delivery
Packaging Details:1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.
Delivery Detail:15-30 days after received your deposit
We,YuYao IceGan Seals & Gaskets Factory specialize in manufacturing and exporting of cylinder head gaskets materials and metal anchors.We have the advanced design team and morden production line together.Gasket material include:Reinforced graphite materials for the cylinder head gaskets;Graphite gasket filler materials,reinforced asbestos and non-asbestos gasket sheet,reinforced graphite gasket,compressed non-asbestos fiber gasket sheet,pure cooper gaskets,non-asbestos gasketing paper/latex sheet,PTFE/Teflon sealing material;Asbestos tape/cloth;Glass fiber tape/cloth;Gland packing and Sprial Wound Gaskets etc..YuYao IceGan Seals & Gaskets FactoryAdd:XunQiao,LuCheng Village,DiTang Str.YuYao City,Ningbo,Zhejiang,China.315490Http://www.Icegan.ComTel:0086-574-81391083Fax:0086-574-62265652
We, YuYao IceGan Seals & Gaskets Factory specialize in manufacturing and exporting of cylinder head gaskets materials and metal anchors. We have the advanced design team and modern production line together.
Gasket material include: Reinforced graphite materials for the cylinder head gaskets; Graphite gasket filler materials, reinforced asbestos and non-asbestos gasket sheet, reinforced graphite gasket, compressed non-asbestos fiber gasket sheet, pure cooper gaskets, non-asbestos gasketing paper/latex sheet, PTFE/Teflon sealing material; Asbestos tape/cloth; Glass fiber tape/cloth; Gland packing and Sprial Wood Gaskets etc.
Metal stamping parts include: Hollow wall anchor, hammer steel anchor with plasterboard, Hammer nail anchor, key-shaped ceiling anchor etc. We also have the ability to develop and make the special products according to the customer's requirements and drawing.
Our factory is located in the south of HangZhou Bay which is very near to Ningbo Port and Shanghai Port. All the convenient conditions offer the prompt delivery.
All the IceGan people heartily welcome your visiting and cooperation for mutual interests.
