Product Specifications
| Prod Model: |
DYWM961232 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Galvanized |
| Application: |
Filter |
| Material: |
Galvanized Iron Wire |
| Hole Shape: |
Square |
| Weave Technique: |
Welded |
Product Description

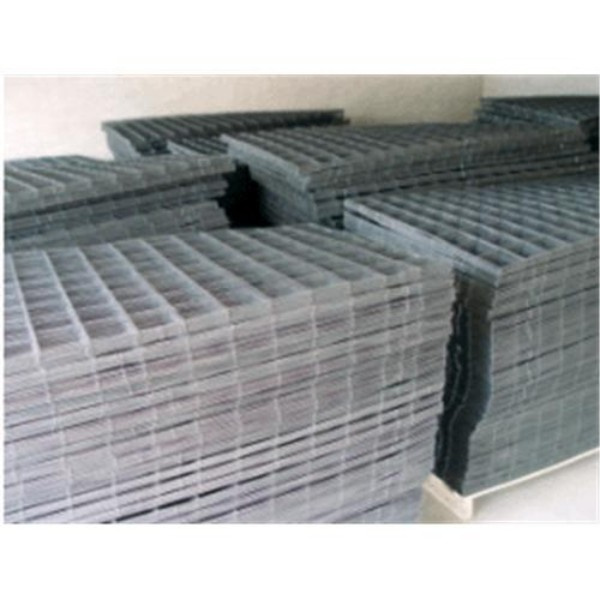

Reinforcement Wire Mesh
Features: Steel bar grating costs less time and labor in work. It saves about 50 to 70 percent work time compared with common binding wire mesh. The use of bar grating can also strengthen the concrete parts to reduce surface breaking ratio. Welded bar grating for reinforcement is especially suitable for big area concrete engineering. Using of welded bar reinforcement can save about 10 percent of the total cost of the project.
Technical Info: Wire diameter for welded steel bar panel ranges from 5mm to 16mm.
Welded bar panel opening: 75mm to 300mm.
Panel length: 100cm to 1400cm.
Panel width: 100cm to 300cm.
Applications: Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
|
Number |
Spacing |
Specification |
Cross-sectional area |
Weight |
|
longitudinal |
cross |
longitudinal |
cross |
longitudinal |
cross |
|
A12 |
200 |
200 |
12 |
12 |
566 |
566 |
8.88 |
|
A11 |
200 |
200 |
11 |
11 |
475 |
475 |
7.46 |
|
A10 |
200 |
200 |
10 |
10 |
393 |
393 |
6.16 |
|
A9 |
200 |
200 |
9 |
9 |
318 |
318 |
4.99 |
|
A8 |
200 |
200 |
8 |
8 |
252 |
252 |
3.95 |
|
A7 |
200 |
200 |
7 |
7 |
193 |
193 |
3.02 |
|
A6 |
200 |
200 |
6 |
6 |
142 |
142 |
2.22 |
|
A5 |
200 |
200 |
5 |
5 |
98 |
98 |
1.54 |
|
B12 |
100 |
200 |
12 |
12 |
1131 |
252 |
10.90 |
|
B11 |
100 |
200 |
11 |
11 |
950 |
252 |
9.43 |
|
B10 |
100 |
200 |
10 |
10 |
785 |
252 |
8.14 |
|
B9 |
100 |
200 |
9 |
9 |
636 |
252 |
6.97 |
|
B8 |
100 |
200 |
8 |
8 |
503 |
252 |
5.93 |
|
B7 |
100 |
200 |
7 |
7 |
385 |
193 |
4.93 |
|
B6 |
100 |
200 |
6 |
6 |
283 |
193 |
3.73 |
|
B5 |
100 |
200 |
5 |
5 |
196 |
193 |
3.05 |
|
C12 |
150 |
200 |
12 |
12 |
754 |
566 |
10.36 |
|
C11 |
150 |
200 |
11 |
11 |
634 |
475 |
8.70 |
|
C10 |
150 |
200 |
10 |
10 |
523 |
393 |
7.19 |
|
C9 |
150 |
200 |
9 |
9 |
423 |
318 |
5.82 |
|
C8 |
150 |
200 |
8 |
8 |
335 |
252 |
4.61 |
|
C7 |
150 |
200 |
7 |
7 |
257 |
193 |
3.53 |
|
C6 |
150 |
200 |
6 |
6 |
189 |
142 |
2.60 |
|
C5 |
150 |
200 |
5 |
5 |
131 |
98 |
1.80 |
|
D12 |
100 |
100 |
12 |
12 |
1131 |
1131 |
17.78 |
|
D11 |
100 |
100 |
11 |
11 |
950 |
950 |
14.91 |
|
D10 |
100 |
100 |
10 |
10 |
785 |
785 |
12.32 |
|
D9 |
100 |
100 |
9 |
9 |
636 |
636 |
9.98 |
|
D8 |
100 |
100 |
8 |
8 |
503 |
503 |
7.90 |
|
D7 |
100 |
100 |
7 |
7 |
385 |
385 |
6.04 |
|
D6 |
100 |
100 |
6 |
6 |
283 |
283 |
4.44 |
|
D6 |
100 |
100 |
5 |
5 |
196 |
196 |
3.08 |
|
E12 |
150 |
150 |
12 |
12 |
754 |
754 |
11.84 |
|
E11 |
150 |
150 |
11 |
11 |
634 |
634 |
9.95 |
|
E10 |
150 |
150 |
10 |
10 |
523 |
523 |
8.22 |
|
E9 |
150 |
150 |
9 |
9 |
423 |
423 |
6.66 |
|
E8 |
150 |
150 |
8 |
8 |
335 |
335 |
5.26 |
|
E7 |
150 |
150 |
7 |
7 |
257 |
257 |
4.03 |
|
E6 |
150 |
150 |
6 |
6 |
189 |
189 |
2.96 |
|
E5 |
150 |
150 |
5 |
5 |
131 |
131 |
2.05 |
