Product Specifications
| Prod Model: |
XA-WM005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Diameter: |
0.3-2.5mm |
| Hole Size: |
1/4"-2.5" |
| Width: |
0.5-2m |
| Length: |
10-30m Per Roll |
| Zinc Coating: |
10-200g/Mm2 |
| Samples: |
Avaiable |
| Certification: |
SGS |
| Mesh Size: |
1/4 Inch |
| Type: |
Welded Mesh |
| Surface Treatment: |
Galvanized |
| Application: |
Sieving Mesh |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Weave Technique: |
Plain Weave |
| Condition: |
New |
| Color: |
Green |
Product Description

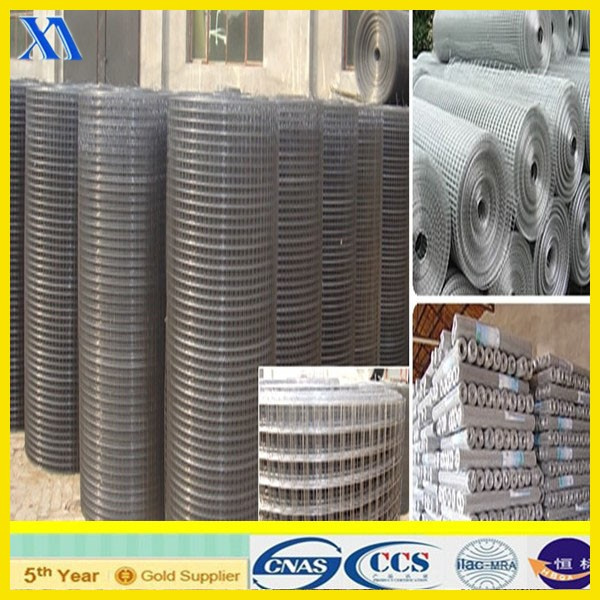

Stainless Steel Welded Wire Mesh/Galvanized Welded Wire Mesh/Hot dipped Galvanized Welded Wire Mesh/ PVC coated Welded Wire Mesh/Painting Welded Wire Mesh/Welded Wire Mesh Panel
Material: High quality low carbon steel wire, galvanized steel wire, PVC coated wire, stainless steel wire,
It can be divided into two kinds: Galvanizing after welding, galvanizing before welding
According to the surface treatment, it can be divided into several species:
Hot dip galvanized welded wire mesh
Electro galvanizing welded wire mesh
PVC sprayed coating welded wire mesh
Stainless steel welded wire mesh
Non galvanized welded wire mesh
Specification
Width: 0.5-2m (3', 1m is the most common)
Length: 10-30m/roll
For the panel: 1-4.5m
Aperture: 1/4", 1/3", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3", 4"(this is for the roll)
For the panel: 2*3cm, 2*4cm, 5*10cm, 5*8cm, 6*12cm customer's choice is avaliable
Properties: High anti corrosion, aging resistance, acid proof, alkaline resisting, elegant appearance,
Application:
Widely used in industry, agriculture, building, transportation, mine, field, lawn, cultivation, enclosure fence, decoration, machine protection, etc.
|
Mesh |
Wire Dia. |
Assortments available:
Hot-dipped galvanized after welding;
Hot-dipped galvanized before welding;
Electro galvanized after welding;
Electro galvanized before welding;
Welded mesh, PVC-coated;
Welded mesh made of stainless steel. |
|
1/4"X1/4" |
BWG23 |
|
3/8"X3/8" |
BWG19,20,21,22 |
|
1/2"X1/2" |
BWG16,17,18,19,20,21,22,23,24 |
|
3/4"X3/4" |
BWG16,17,18,19,20,21,22 |
|
1"X1/2" |
BWG16,17,18,19 |
|
1"X1" |
BWG14,15,16,17,18,19,20,21 |
|
1"X2" |
BWG14,15,16 |
|
2"X2" |
BWG14,15,16,18 |
