Product Specifications
| Prod Model: |
HPZS-1113 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Gauge: |
Bwg12-Bwg24 |
| Standard Panel Length: |
6m(5.8m) to 12m(11.5m) |
| Width: |
1.8m to 2.0m |
| Reference Weight Kg/M2: |
4.44-15.99 |
| Type: |
Welded Mesh |
| Certification: |
BV |
| Application: |
Decorative Mesh |
| Surface Treatment: |
Galvanized |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Condition: |
New |
| Mesh Size: |
as Customer's Request |
| Weave Technique: |
Welding |
| Color: |
as Customer's Request |
Product Description

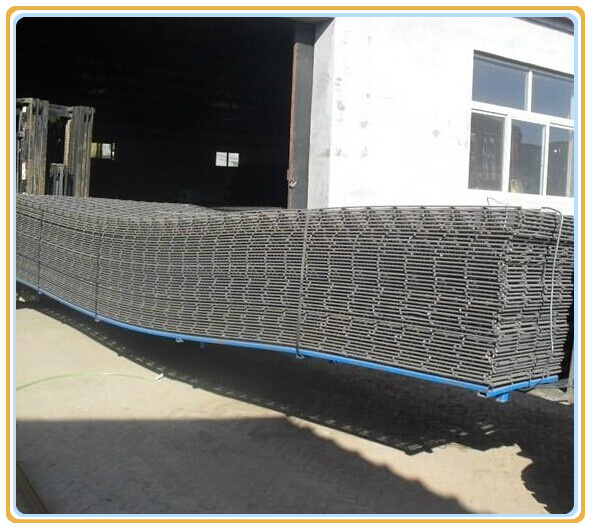

Concrete Reinforcing Mesh/Reinforcement Mesh
material:ribbed steel, smooth steel
The welded steel reinforcing mesh use the high quantity cold-drawing rebar (Ribbed or light round) as raw material, welded together by the welding machine after the straightening. It has a strong and firm body, can bear the high pressure from the concrete and exterior. The reinforcing mesh can save much man-haur, reduce the material cost in the process. The reinforcing mesh can design by the project requirement, improve the efficiency and bond to the concrete can meet the special construct needs.
Application: Welded steel reinforcing mesh is widely use in airport, tunnel, bridge, highway and wharf, also in the construction of building floor, wall, roof and balcony. We can produce the welded steel reinforcing mesh as per your special requirement.
With many years experience in the production of reinforcing mesh, we are a leading supplier of customised reinforcing products to most industry sectors.
We have ourself factory, we manufacture welded mesh panel machine and reinforcing mesh machine by ourself, at present, we have two kinds of reinforcing mesh machine to produce. One is 2.5mm---6mm reinforcing mesh machine, another is 6mm---12mm reinforcing mesh machine.
WIPE DIAMETER |
WIRES NUMBER |
PITCH OF WIRES |
SHEET DIMENSION |
(SQM) |
Edge wires |
(kg)
SHEET |
(kg/SQM)
|
MESH SHEET |
TYDE |
LONG |
CROSS |
LONG |
CROSS |
LONG |
CROSS |
WIDTH |
LENGTH |
AREA |
|
WEIGHT |
|
Sqaure Mesh |
SL52 |
4.77 |
4.77 |
10 |
30 |
200 |
200 |
2400 |
6000 |
14.40 |
|
20.000 |
1.4000 |
SL62 |
6.00 |
6 |
10 |
30 |
200 |
200 |
2400 |
6000 |
14.40 |
4x4.24@100 |
33.000 |
2.292 |
SL72 |
6.75 |
6.75 |
10 |
30 |
200 |
200 |
2400 |
6000 |
14.40 |
4x4.77@100 |
41.000 |
2.778 |
SL81 |
7.60 |
7.60 |
25
|
60 |
100 |
100 |
2400 |
6000 |
14.40 |
0
|
105.000 |
7.100 |
SL82 |
7.6 |
7.6 |
10 |
30 |
200 |
200 |
2400 |
6000 |
14.40 |
4X5.37@100 |
52.000 |
3.611 |
SL92 |
8.6 |
8.6 |
10 |
30 |
200 |
200 |
2400 |
6000 |
14.40 |
4x6.00 @100 |
66.000 |
4.514 |
SL102 |
9.5 |
9.5 |
10 |
30 |
200 |
200 |
2400 |
6000 |
14.40 |
4X6.75@100 |
80.000 |
5.556 |
SL63 |
6 |
6 |
6 |
30 |
300 |
300 |
2300 |
6000 |
13.80 |
4X4.00@100 |
21.000 |
1.594 |
SL53 |
4.77 |
4.77 |
6 |
20 |
300 |
300 |
2300 |
6000 |
13.80 |
4X4.00@100 |
15.000 |
1.000 |
Welded Wire Mesh /Welded Wire Mesh panel / Welded wire / Welded wire mesh sheet /PVC coated welded wire mesh / Galvanized welded wire mesh/floor heating mesh
weaving and characteristic:including gavanizining after weaving. gavanizining before weaving.
it is divided to hot-dipped eletroplate gavanizing.PVC coating.plastic-soaked.special eletric welded wire mash.
Surface finish: electro galvanized ,Hot-dipped galvanized,Powder spraying coated,Power dipped coated,PVC coated
Features: With uniform surface, firm structure and precise opening, welded wire mesh panel has good property of corrosion-resistance and oxidation-resistance.
Uses:used wide in industry.agriculture.building.transportation.mine.field.lawn.etc.
Materials: Low carbon steel wire,stainless steel wire,iron wire,Galavanized steel wire,PVC coated iron wire in blue,green,yellow and other colors. Low carbon steel wire,stainless steel wire,iron wire,Galavanized steel wire,PVC coated iron wire in blue,green,yellow and other colors.
specification:
Standard Welded Wire Mesh (in 30m length, Width of 0.5m-1.8m) |
Mesh |
Wire Gauge (BWG) |
Inch |
MM |
1/4" x 1/4" |
6.4mm x 6.4mm |
22-24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19-22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16-23 |
5/8" x 5/8" |
16mm x 16mm |
18-21, |
3/4" x 3/4" |
19.1mm x 19.1mm |
16-21 |
1" x 1/2" |
25.4mm x 12.7mm |
16-21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14-19 |
1" x 2" |
25.4mm x 50.8mm |
14-16 |
2" x 2" |
50.8mm x 50.8mm |
12-16 |
1/4" x 1/4" |
6.4mm x 6.4mm |
12-16 |
Galvanized Fencing Mesh |
Opening |
Wire Diameter |
In inch |
In metric unit(mm) |
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
3" x 3" |
75mm x 756mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
3. PVC coated welded wire mesh: is made by electric galvanized or hot dip galvanized then coated with plastic in high temperature
Used as fence panels, machine guards, partitions, barrier, and processed into various wire mesh containers and animal cages
PVC Coated Welded Mesh: |
Opening |
Wire Diameter |
In inch |
In metric unit(mm) |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
|
