Product Specifications
| Prod Model: |
AHC15A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo, Shanghai, Other |
| Delivery Time: |
20-25 Days |

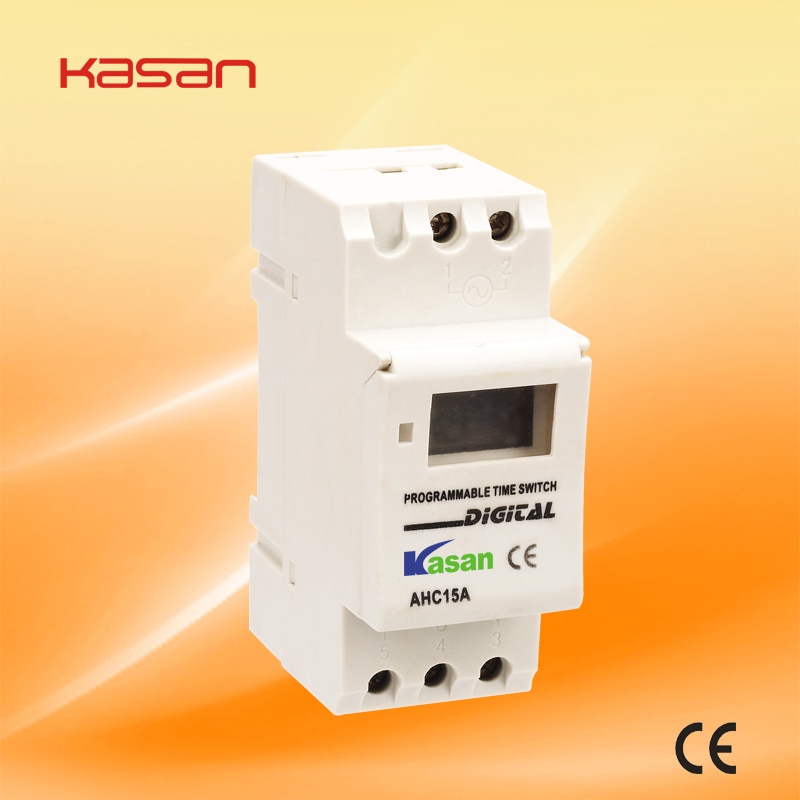

Product Description
CLASSIFICATION
TIMER digital time switch
Weekly programmable
MODEL
AHC15A
DIMENSIONS (mm)
82*36*66
FULL TIMING RANGE
Per week or per day cycle
RATED VOLTAGE
AC 110, 220-250V 50/60Hz 85%-110%
CONTACT CAPACITY
16A 110, 220-250V AC
CONTACT FORM
1P
ACCURACY
≤ 2S/DAY
EXPECTANCY DISPLAY
LCD
MOUNTING FORM
Front-panel, DIN rail 35mm
PROGRAMMABLE
10 times / week or day 10 on 10 off
MOUNTING
DIN rail 35mm or other
| Model No: AHC15A |
| Product name: Weekly programmable Electronic Timer |
| Operating Voltage: 220~240V AC, 50Hz/60Hz, 85%~110% |
| Power Consumption: 4.5VA |
| Ambient Temperature: -10~+50º C |
| Accuracy: ≤ 2 s/day 25º C |
| Minimum Setting Unit: 1 min |
| Time setting Range: 1 min~168 hours |
| Contact Capacity: AC 250V, 12A |
| Contact Form: 1 Z |
| Working reserve time: 48 hours charged can lasts 15 days |
| Expectancy Display: LCD |
| Mounting Form: Front-panel, DIN rail |
| Life: | Electrical ≥ 10 5 Times |
| Mechanical ≥ 10 5 Times |
| Operating Mode: -20º C~+50º C |
| Programmable: 10 Time/week or day |
| Full Timing Range: Per week or per day cycle |
Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.
in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.
We Wish to Make Friends with All Over The World to Expand Our Products Market.
