Product Specifications
Product Description
Product Type:

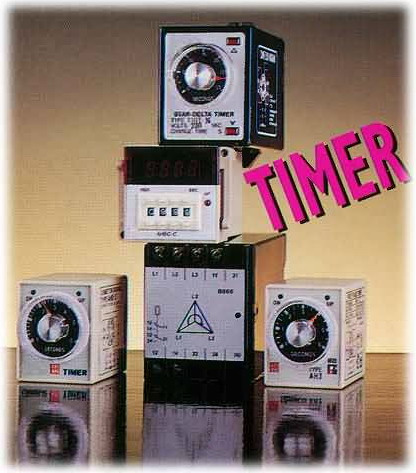

Relay, Level Controller, High Power Relay, Electric motor protector, Time Relay, Counter Relay, General-purpose Relays, Miniature Electromagnetic Relays, Power Relays, Solid State Relays,
1)JS14A
Overall dimension: 125x47x84
Operating mode: Power on time lag
Time lag scope: 1s, 5s, 10s, 30s, 60, 120s 180s, 240s, 300s, 600s, 900s
Rated voltage: DC(V): 24 AC(V): 36, 110, 127, 220, 38050/60Hz
Number of contact: 2group of transfer contact
Contact capacity: AC250V 5A resistance property
Time lag accuracy: <5%
Ambent temperature: -10~45
Service life: Mechanical 5x10
6 Electrical 10
5
Installation pattern: Fitting type
2) Timers Relays AH Series
Voltage: AC12V-380V 50/60Hz DC12V-24V
Contact: AH3-1: Timed SPDT
AH3-2: Timed 2PDT
AH3-3: On-delay with inst. Contact
Timing Range: 1S. 2S. 6S. 12S. 30S. 60S. 3M. 6M. 12M. 30M. 60M.
3H. 6H. 12H. 24H
3)Floatless Controllers & Time Accumulator
Model: 61F-G C61F-GP
Voltage: AC220V ± 10% 50/60Hz
Operating Temperature: -20 to 50
4)Miniature Electromagnetic Relay & Power Relays
Modes: JQC-8F(T76)
Size(mm): 22.5x16.8x11.1
Terminal layout: 1Z, 1H
Contact capacity: 20A 125VAC/ 10A 220VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 500MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
5)Timers Relays & Counter
Model: AH5R
Voltage: AC12V-240V 50/60Hz DC12V-24V
Contact: Time Limit 2C Time Limit 1C
Instant. 1C Time Limit 1C 1+4 Gate, 1+3 Reset
Operation: On-delay
Timing Range: 1M-99H99M 1S-99.99S
6)Conditioning Relays
Model: JK9171 JK9261 M1TVR
Voltage: AC24V-220V 50/60Hz
Operating Temperature: -10 to 50
Timing Range: 5m-15min
7)Power Relays
Model: JQX Series
Size(mm): 29.6x21.7x17.1
Terminal layout: 1Z, 1H
Contact capacity: 30A 125VAC/ 30A 250VAC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 100MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
8)General-purpose Relays
Model: HH64P(LY4)
Size(mm): 41x27.4x34.9
Terminal layout: 4Z
Contact capacity: 10A 220VAC/ 10A 28VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 100MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
JQX-14FC-1Z
Size(mm): 29x13.5x25.5
Terminal layout: 1Z, 1H, 1D
Contact capacity: 10A 220VAC/ 10A 28VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 1000MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
MK-3P
Size(mm): 34x34x50.5
Terminal layout: 3P
Contact capacity: 10A 220VAC/ 10A 28VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 500MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
55.12
Size(mm): 20.5x27.5x35.3
Terminal layout: 2Z
Contact capacity: 5A 250VAC/ 5A 30VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 100MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
JQX-14FC-2Z
Size(mm): 29x13.5x25.5
Terminal layout: 2Z, 2H, 2D
Contact capacity: 5A 250VAC/ 5A 30VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 1000MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
JQX-53F-2Z
Size(mm): 35.8x36x47
Terminal layout: 2Z
Contact capacity: 10A 220VAC/ 10A 28VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 500MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
RH1B-U
Size(mm): 27.8x14x42
Terminal layout: 1Z
Contact capacity: 10A 240VAC/ 10A 30VDC
Contact resistance: ≤ 50MΩ
Insulation resistance: ≥ 500MΩ
Dielectric strength: BOC 1000VAC/ BCC 1500VAC
For more informations pls kindly visit our website or send mail to us.
Sunshine Electric Co., is a manufacturer of electron & electric products. Our products range includes over 500 mdels. Through our free PDF catalog and this full-featured web site, we are able to offer the most practical industrial automation products at the industry's lowest prices.
We follow that up with a super-efficient organization that ships in few days the day you order them and then provides technical support that has been rated among no1s in the industry. Use the links left to find out part of Sunshine Electric.
Sunshine Electric has been exported his products to more than 20 countries and regions, which enjoy high reputation in the world markets, because of superior quality, favorable prices and excellent services.
We look forward to serving you using our skills, experience and engineering knowledge. We guarantee you the best of our services!
