Remote Car GPS Tracking System with Fuel Monitoring / Camera

Product Specifications

Prod Model:	GP4000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	0.5mm
Input Voltage:	10~30V
Statistic Storage:	43200PCS
Temperature Operating:	-40~85 Centigrade
Geo Fence:	64 PCS
Tracker Dimension:	103*71*26mm
Weight:	750g
GSM:	850/900/1800/1900
Backup Power:	8.4V 400mAh
Power Consumption:	60mA~100mA
Type:	Monitoring System
Feature:	High Definition
Video Transmission System:	Network Cable Transmission
Software Function:	Monitoring+Control
Software Usage:	Vehicle Monitoring Software
Client Software:	Client Software
Model:	Monitor Type
Horizontal Resolution:	480tvl
Application:	Location Monitoring, Fuel Consumption Monitoring
Video Capture System:	Camera
Sensor:	Camera, Fuel Level Sensor
Kind:	Camera
Technology:	GPRS

Product Description

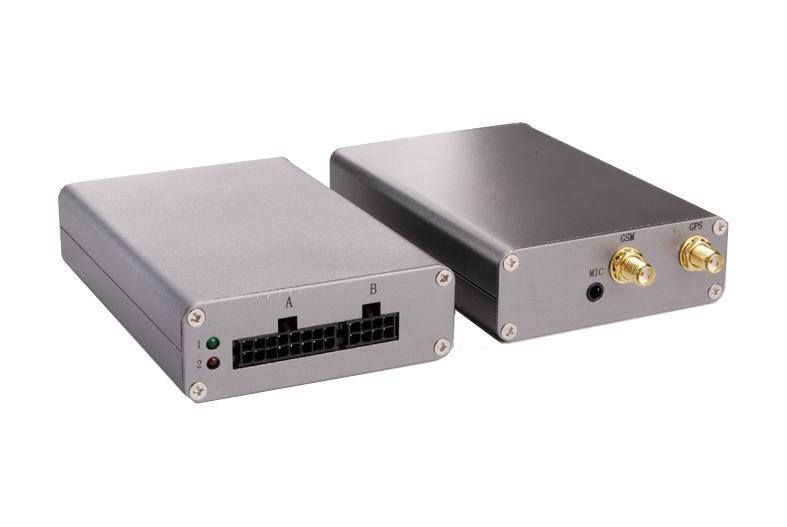

Remote Car GPS Tracking System with Fuel monitoring / Camera

Model: GP4000

Introduction:
GP4000 is intelligent vehicle GPS tracker with high performance but competitive price, its stable performance has been strictly tested over 55 countries under different applications.
It has been widely used in remote monitoring of logistics fleet, mixers, refrigerator trucks, taxies and construction machines
The feature of 8 I/O signal input, 6 signal output, 1 RS232 serial port, more than 10 kinds external devices supported, enable GP4000 to be used in different vehicles and applications.
Features:
1.      Low power consumption, wide range power input
2.      Intelligent multi-mode for data uploading, angle data uploading supported
3.      Build-in 3D G sensor for harsh braking, and more customized application.
4.      Road and polygon shaped GEO-FENCE  supported,
Alarm for road deviation, road speeding, zone speeding, zone over time parking is available.
5.      More than 20 alarms are available (SMS, GPRS)
6.      More than 10 kinds of external devices are supported, excellent redevelopment frame.
7.      43,200 pieces history data, with feature of broken-point continuingly-transferring.
8.      OTA
Specification:

Type	Description
Basic function	Transmission Mode	TCP/UDP/SMS
	Data upload	Time interval / Distance interval / Angle change
	Data flow control / Power saving mode	Factory Setting / Define by user / GPS module power off
	Intelligent time management of data uploading	Time reference / Week Reference /Day Reference
	Motion detection	Build-in 3D G sensor
	OTA	broken-point continuingly-transferring
	Mileage Statistics	GPS mileage / electronic mileage
	Remotely Listen-in	Active / Passive
	Geo-fence	64
	Road / Polygon zone Geo-fence	100
	Hotspot	100
	Alarm type	GPRS/SMS/EMAIL
	Domain name supported / build-in backup IP supported
	Blind area data uploading / history data intelligent uploading (43,200 pieces)
	GPS open/short circuit detection / GPS signal uploading in real time.
	Self-check, self-recovery, self-protection, build-in back up battery
	Alarms	20 kinds
Alarm function	Enter/Exit Geo-fence alarm, overtime parking alarm, fatigue driving alarm, over speed alarm, SOS (panic button) alarm, backup battery starting alarm, illegal ignition alarm, harsh braking alarm, vehicle sliding in neutral gear alarm, fuel level change alarm, seat belt unfasten alarm, vibration alarm, tow alarm, hotspot alarm, deviation from the route alarm, over speed in certain road alarm, over speed in zone alarm, late alarm, earlier arrival alarm, temperature change alarm, tire pressure change alarm.
External Devices	MDT (dispatching board)	Two way voice/SMS communication, dispatching.
	Camera
	RFID
	High precision fuel level sensor
	Tire pressure monitoring sensor
	Temperature & Humidity sensor
	Numeric keypad
	Taxi meter
	Two way voice box
	Magnetic door sensor
	Mixer drum sensor
Control Function	Remotely cutting off the fuel pump / 5 output control define by user
I/O Port	6 Switch signal input
	1 Analog signal input(0-5v)
	1 pulse signal input(<3.8v,2KHZ )
	5 switch signal output
	1  RS232 Serial port
Parameters	Dimension(L×W×H)	103×71×26mm
	Weight	750g  (with standard accessories)
	Working current	60-100mA
	Working voltage	10-30V
	Backup battery	8.4V  400mAh  NI-MH battery
	GPS chip	SIRF Star III
	GSM	850/900/1800/1900 Mhz


Fuel level sensor:

Model: JT606X

JT606X is developed based on JT606. It keeps the good features of JT606 like cuttable, flange design, stable performance, high resolution , anti explosion, but also have make the cover sealed to achieve 100% waterproof. This can prevent the humidity affection in the long time usage and make the fuel sensor even more durable and robust.

Features

1.    Wide Power Voltage Input
DC: 4-70V, while DC: 4-36V is recommended to ensure the long term stability.
2.    Cuttable due to the fuel tank size
It can be cut due to the fuel tank size & installation place in spot, the cut part' length can not over one third of the fuel senor length (before cutting), and it need to be calibrated after cutting.
3.    Easy installation
By adopting the unique flange, it just need to drill one hole in the fuel tank to finish the installation, the details is with reference to the installation instruction.


NO.	Item	Performance parameters
1	Collection principle	Capacitance
2	Size	100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) There have 3mm blind area of bottom fuel sensor can't be detected.
3	Electrical parameters	DC: 4-70V, better DC: 4-36V (Over voltage protection, reverse Voltage protection)
4	Power Consumption	0.200W/5V,0.286W/12V,0.571W/24V
5	Signal output	RS232,RS485, 0-5V
6	Communication baud	2400,4800,9600,57600,115200
7	Resistance ouput	10~500Ω
8	Detection of liquid type	Diesel, biodiesel, kerosene, etc.
9	Resolution	Less than 1mm
10	Accuracy	±0.5%
11	Use of the environment	Work temperature:-40ºC~+75ºC
		Save temperature:-40ºC~+85ºC
12	Humidity	0~99%
13	Detector material	Aluminium alloy
14	Protection class	IP67

Working Current

Test Voltage	Current	Power consumption
24V	23.8mA	0. 571W
12V	23.8mA	0. 286W
9V	23.7mA	0. 213W
5V	40mA	0.200W


Camera:

with RS232 /RS485  output

Taking photo ways:
1.  Triggered by alarms
2.  Hand operating
3.  by seting time point
