Product Specifications
| Prod Model: |
F21-E1B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial Machinery |
Product Description

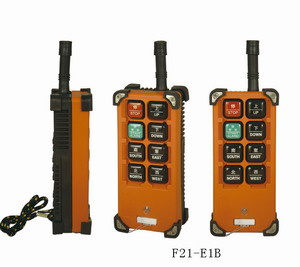

F21-E1B Transmitter
Dimension: 164*75*46 mm
Weight: 380g (without batteries)
Receiver
Dimension: 185 x 85 x 85mm
Weight: 550g
Features
Low power consumption transmitter 2 AA batteries last up to 4 months
Safety code: Over 4.3 billions unique ID code available.
Temperature range -40° C~ +85° C
Enclosure protection class IP 65
Microsoft Windows based software for easy customize configuration
Structure:
Glass-Fiber
8 operation buttons,
7 single-speed buttons and one 'STOP'
9 commands
With battery voltage warning device, the power is cut off during low power.
Safety key switch to prevent from unauthorized user
Set the internal functions by computer interface
Up/down, east/west, north/south can be set as to mutual inhibition or not.
Spare key can be set to start, acceleration, toggle switch, general or other functions.
Control distance is up to 100 meters
Transmitter power: 3V DC
Receiver power: 380V/220V AC or 12V/24V DC
Output contact capacity: 5A sealed relay output (AC 250V/10Arelays, 5A fuse contacts).
Standard Configuration
One transmitter
One receiver with 1 meter cable
Receiver with 1 meter cable
Operation and maintain manual
Application
Single-hook, single-speed electric hoist or hoist-type traffic and industrial remote control with less than 9 contacts
Receiver: F21-RXC |
Applications |
Doors, entrance, gates, winches, pumps, crushers, lighting, conveyor belts, hydraulics etc |
Working frequency |
315 MHz |
High-frequency channels |
64 |
Unique codes |
4.3 billions |
Power supply |
110/ 220V/380V/VAC, or 12/24/36/48 VDC. |
Power consumption |
20~400m A |
Protection |
IP65 |
Temperature |
-40° C ~ 85° C |
Control distance |
Approx. 100M |
Recommended transmitter |
F21 series transmitters |
