Remote Multi-Jet Pulse Water Meter (JH-WM-LXS)

Name: Remote Multi-Jet Pulse Water Meter (JH-WM-LXS)
Brand: china-manufacturer-directory.com
SKU: 773545575
Availability: InStock
Rating: 4.9 (108 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 10-55/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	JH-WM-LXS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Level Measurement:	a,B
Medium Temperature:	Cold or Hot Water
Material:	Gray Iron/Brass
Flow Range:	0-15m3/H
Accuracy:	?à0.6-1%
Main Application:	Water
Sensor:	Plug-in
Measuring Media:	Liquid
Measuring Principle:	Mechanics
Size:	Dn15-50
Application:	Civil
Type:	Water Meter

Product Description

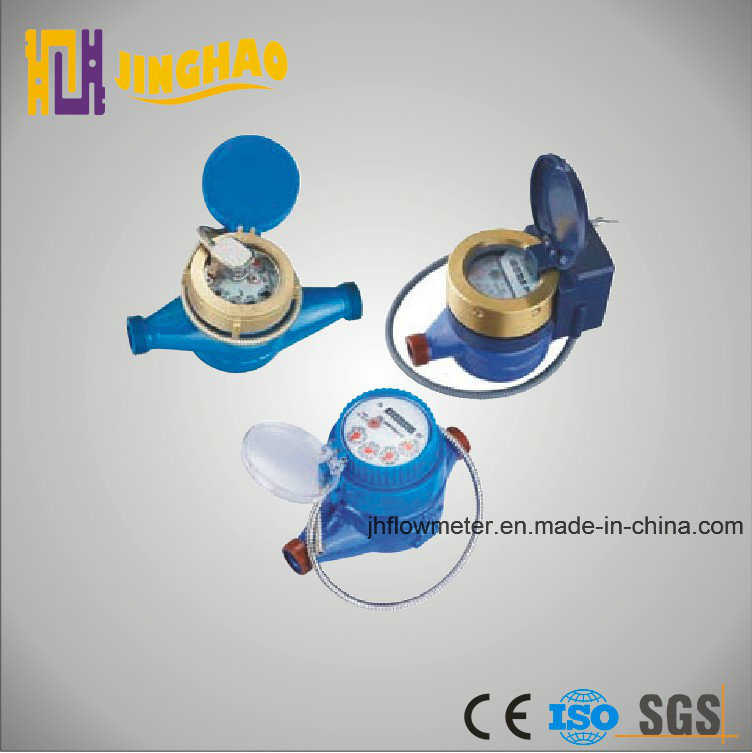

LXS Multi-jet pulse Water Meter

Set of moving device that fitted into a closed conduit driven directly by water flow. Its turbine rotor
rotates about the axis which is perpendicular to water flow.

Application:
--Measuring the volume of cold (hot) water passing through the pipeline

Features:
-Selected sensitive read-type pluses;
-Resistance to interference;
-Keep its fundamental function;

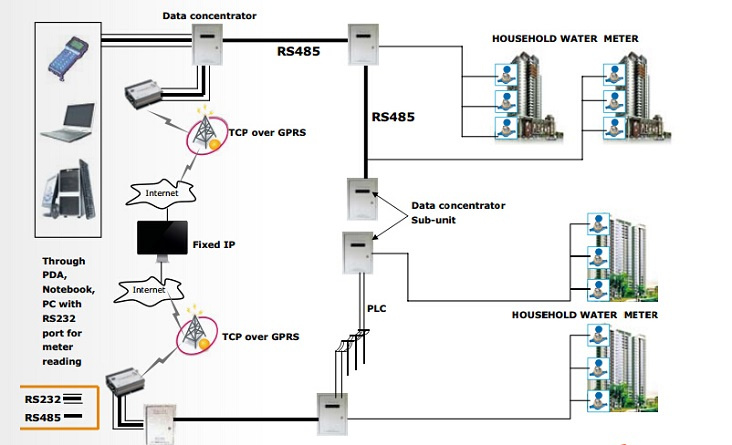

-Consumption can be collected by remote transit with accurate and reliable reading;
-Can be connected with compter , for management;
-All technical figures are conformed with GB/T778.1~3-1996 which is equivalent to ISO4064 Standard Class B.

Working condition:
Water temperature: 0.1ºC~40ºC ( 0.1ºC~90ºC for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)

Technical parameters:

Type	Size	Class	Qs Max Flow(m3/h)	Qp Nominal Flow	Qt Transitional Flow(L/H)	Qmin Min.Flow (L/H)	Min. Reading M3	Max. Reading
LXS-15F	15	B	3	1.5	120	30	0.0001	9999
LXS-20F	20	B	5	2.5	200	50	0.0001	9999
LXS-25F	25	B	7	3.5	280	70	0.0001	9999
LXS-32F	32	B	12	6	480	120	0.0001	9999
LXS-40F	40	B	20	10	800	200	0.0001	9999
LXS-50F	50	B	30	15	1200	300	0.0001	9999
