Remote Temperature Monitoring Heat Sensor Alarm

Name: Remote Temperature Monitoring Heat Sensor Alarm
Brand: China-Manufacturer-Directory.com
SKU: 741276015
Availability: InStock
Rating: 4.6 (144 reviews)

Supplier:	Shenzhen Asenware Test and Control Technology Co., Ltd.
Price:	US $ 4-5.5/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AW-CTD805
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	155kg
Operating Voltege:	24V
Operating Voltage Range:	9 to 28VDC
Wiring Method:	2 Bus System
Installation Temperatures:	14°f to 122°f (-10°c To50°c)
Installation:	Wall Mounted
Certificate:	CE SGS ISO9001
Color:	White
Matched Host Machine:	Fire Alarm Control Panel
Height:	55m with Base
Type:	Industry Alarm
Application:	Outdoor
Signal Transmission:	Wired Alarm
Working Mode:	Active
Sensor Type:	Electric Alarm
Working Principle:	Electro-Optical Type
Usage:	Smoke

Product Description

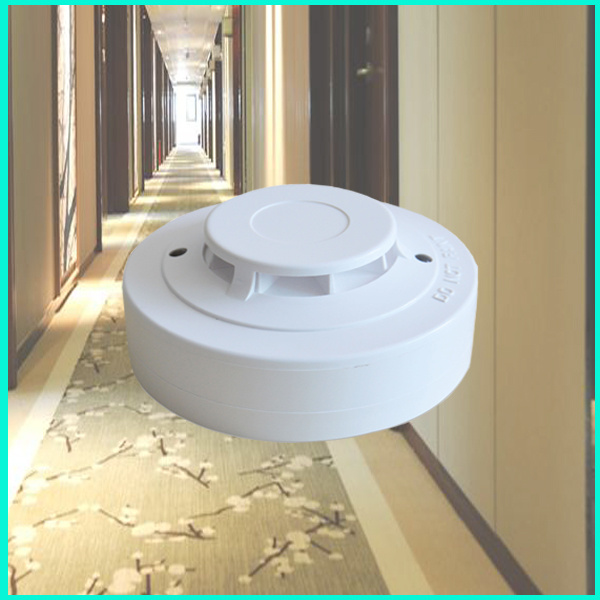

The device fire alarm heat detector is intelligent sensors that utilize a state-of-the-art thermistor sensing circuit for fast response. These sensors are designed to provide open area protection with 50 foot spacing capability. The device is a rate-of-rise temperature sensor with 135° F fixed temperature alarm. Thermal detector utilizing a state-of-the-art dual thermistor sensing circuit. These detectors are designed to provide open area protection with 50-foot spacing capability, and are to be used with compatible control panels only. Two LEDs on each detector light to provide 360° Visibility of the detector indication.

Height	2.2 (55 mm) installed in Base
Diameter	4.0 (103 mm)
Weight	5.5 oz. (155 g)
Installation Temperatures	14°F to 122°F (-10°C to50°C)
Operating Voltage Range	9 to 28VDC Volts Non-polarized
Standby Current	40μA @ 24 VDC
Maximum Alarm Current (LED on: )	≤30mA @ 24 VDC
Fixed Temperature Rating	135°F (57°C)
