Product Specifications
| Prod Model: |
R2PNF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Shape, Material and Color

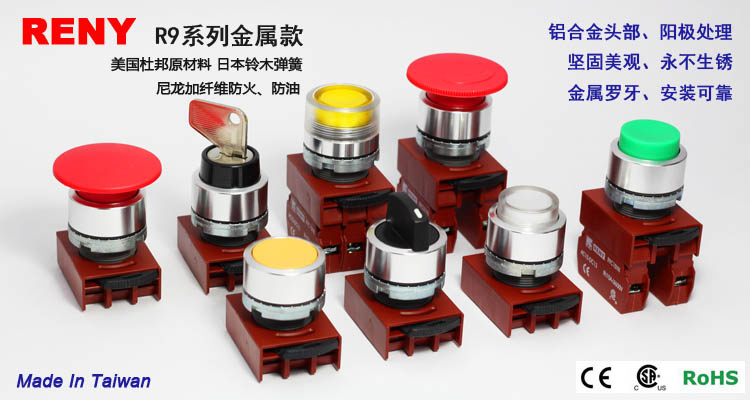

The R9 series consists of 3 different types of combinations.
Round, 22m/m, made of nylon, fiber and fireproof material
Round, 30m/m, gray color, made of nylon, fiber and fireproof material
Square, 22m/m, gray color, made of nylon, fiber and fireproof material
The elegant, modern and ergonomic R9 products have various colors and types.
Available to choice, and are the result of superior industrial design experience
These characteristics allow the R9 product to be used in the most industrial environments and enable them to satisfy and sophisticated industrial application.
Mounting Systems
The R9 line offers a wide variety of products, contact blocks and power supplies.
All of them are completely interchangeable in a "easy-to-assemble" fashion thanks to an innovative flange mechanism designed to reduce the assembly time to a minimum.
Furthermore, to satisfy particular applications needs, a range of products, contact blocks and power supplies are available for base mounting.
Fitting and Positioning
According to the IEC529, all the R9 products contain a "U" shape device that seals it in a way that it meets the standards of the IP65 which makes it not only waterproof, but also oil-proof, and dustproof.
A locating tab on the product's body allows the correct positioning on panels with drills holes.
The tab also ensures panel stability because it prevents unwanted rotation during the panel mounting and maintenance procedures.
The tab can be removed with a screwdriver for applications where the holes do not have a notch.
Rear Locking and Back Mounting Procedure
R9 products are back mounting to the panel by a patented threaded locking ring.
The units can be assembled using a standard screwdriver.
Fast Mounting
All the R9 series rear panel devices are snap-on inserted.
The flange is securely fitted to the product, thus guaranteeing a quick coupling between the various parts.
For base mounting, the fitting is done directly on the base plate.
Each single block can be mounted or removed individually without interfering with the others.
In panel mounting, it is also possible to install or remove the snap-on flange together with the block.
The block and/or the flange can be disassembled using a standard screwdriver, which simplifies maintenance products.
Safety and Reliability
The R9 series contact blocks are designed to ensure maximum reliability in every condition and to monitor control circuits at low energy levers(12V-mA) without the use of special versions.
Thanks to manufacturing solutions such as:
Four switching points with double movable bridges (mechanically separated yet electrically connected).
High efficiency self-cleaning sliding contacts.
Silver contacts.
The R9 series contact blocks operate with high safety margins also at low energy level circuits and at increased operations without failures.
Reny Electric Ltd. Company, founded in 1975, which has more than 30 years experience in manufacturing and developing automatic electrical equipments.
We focus on manufacturing and designing push buttons, selector switches, joysticks, pilot lights, foot switches, buzzer.
Our products are sold at home and aboard, also well known as the most fast, economical, stable, reliable in the market.
