Product Specifications
| Prod Model: |
GM3188-15A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
DC 13.8V |
| Output Current: |
15A |
| Model: |
Gm3188-15A |
| Size: |
198*265*260mm |
| Charge Current: |
1A |
| Protect Function: |
Over Current, Over Voltage |
| Scope: |
Install One or Two Gm3188 Radio |
| Color: |
Black |
| Output Type: |
Single |
| Output Power: |
101 - 200W |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Input Voltage: |
220VAC or 110VAC |
Product Description
Why choose us ?
1.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
2. Over 21 years electroplating rectifier telecommunication power supply manufacture in China.
3.We are one of the limited liability company in our city.
4.We have 17 patents.

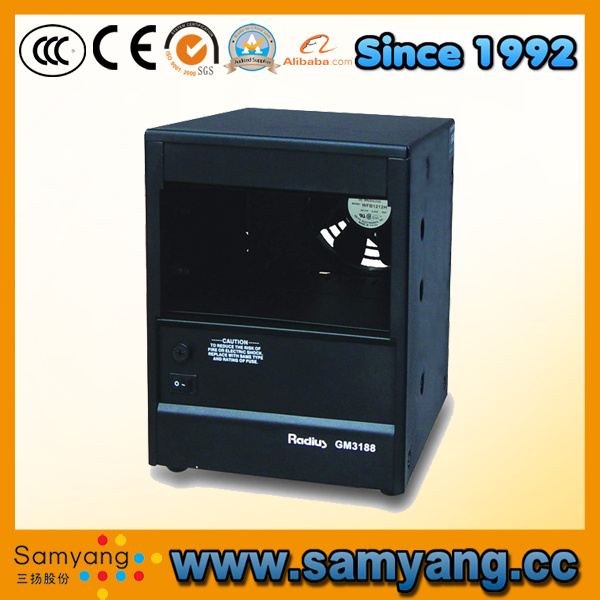

Repeater Power Supply for GM3188 Radio Motorola radio
Indicated parameters:
1,Ambient Temperature:-10degree—50degree
2,Input voltage: AC220V or AC110 ±10%
3,Output voltage:13.8V±0.2V
4,Working : intermission: <15A, continuum: <5A
5,Max current:16A—17A
6,Output over voltage protection :16.5V±1.5V
7,Reflex current:2A—3A
8,Source effect:≤5×10-4
9,Load effect:≤5×10-4
10,cycle and random excursion:≤15mVP-P
11,Charging battery voltage:12V
12,Charging current:1A±0.5A
13. Ripple: ≤ 10mV (P-P)
14,Output over current, over voltage protection
15,Automatically change to the battery supply if AC power is lose
16,Can install one or two GM3188 radio
17,Dimension: : 265× 198× 260(L× W× H).
Product details:
Product feature:
|
Ambient Temperature |
-10°C---50°C |
|
Input Voltage |
AC220V ±10% |
|
Output Voltage |
13.8V±0.2V |
|
Output Current |
15A |
|
Working |
intermission: <15A, continuum: <5A |
|
Output voltage stability |
≤1% |
|
Max current |
16A_17A |
|
Output over voltage protection |
16.5V±1.5V |
|
Reflex current |
2A_3A |
|
Source effect |
≤5×10-4 |
|
Load effect |
≤5×10-4 |
|
cycle and random excursion |
≤15mVP-P |
|
Charging battery voltage |
12V |
|
Charging current |
1A±0.2A |
|
Size |
265 * 191 * 244MM (L* W* H) |
|
Protect function |
Output over current, over voltage protection |
|
Function |
Automatically change to the battery supply if AC power is lose |
|
Feature |
Install two GM3188 radios |
