Residual Current Circuit Breaker (ID RCCB) , Electromegnetic Earth Leakage Circuit Breaker

Name: Residual Current Circuit Breaker (ID RCCB) , Electromegnetic Earth Leakage Circuit Breaker
Brand: china-manufacturer-directory.com
SKU: 708409395
Availability: InStock
Rating: 4.7 (135 reviews)

Supplier:	Yueqing Eidell Electric Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	60/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

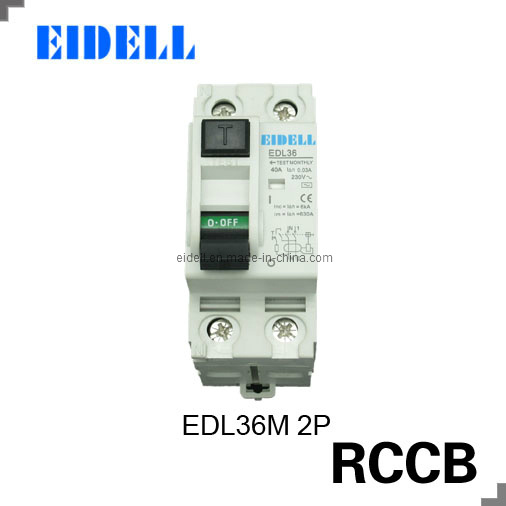

Prod Model:	ID(EDL36) 2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	16~100amper
Poles:	2 and 4 Poles
Voltage:	240V/415V 230/400V
Break Capacity:	6ka
Type:	Circuit Breaker
Function:	Overcurrent Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Installation:	DIN Rail Installation

Product Description

Specifications
1)ID Residual Current Circuit Breaker
2)functions of isolation, switching and earth leakage protection
3)CE, ISO9001
4)OEM

ID Residual Current Circuit Breaker, RCCB

General

Application
The ID RCCB residual current device provide the functions of isolation, switching and earth leakage protection of electrical circuits.
They have a residual current operated electromechanical release which operates without any auxiliary source of supply to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to a threshold of 10mA, 30mA, or 500mA.

Comply with standard: IEC1008

Rated current: 16, 25, 40, 63, 80, 100A

Rated voltage: 240/415V

Poles: 2, 4

Rated residual non-operating current In: 0.5In

Rated limit short circuit current: 6000A

PARAMETER	RATING
Type	Electro-magnetic
Number of poles	2P4P
Rated making and breaking capacity	630A
Rated Current(In)	25, 40, 63, 80, 100A
Rated Voltage(Un)	AC 2P: 230/240V 4P: 400/415V
Rated residual operating current( In)	30100300500mA
Rated residual non-operation Current( Ino)	0.5In
Residual operating current scope	0.5In~In
Residual current breaking time	≤ 0.3s
Residual current trip characteristics	A, AC
Ultimate short-circuit breaking capacity (Inc)	6000A
Endurance	≥ 4000
Connection Capacity	≤ 25mm 2
Connection terminal torque (Max. )	2.0Nm
Degree of protection	IP20
Standard	IEC/EN61008
