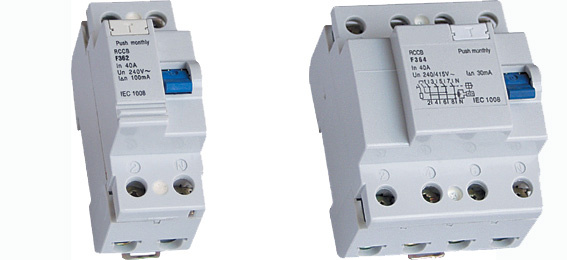

Residual Current Circuit Breaker Yhl360, CE (RCCB001)
Product Specifications
| Prod Model: |
RCCB001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Installation: |
Insert |
| Speed: |
High-Speed Circuit Breaker |
| Structure: |
Mini Circuit Breaker |
Product Description
The item is in comply with standard of IEC61008-1, applying to the circuit of AC 50/60Hz, 230V single phase, 400V three phases or below it for industrial and mining enterprise, trade building, commerce and family. It is mainly used for preventing electric fire and personal casual accident caused by personal electric shock or leakage of electri shock or leakage of electrified wire net, this is a current operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliablity. The function of the switch won't be influenced by ambient temperature and lighting. The mutual inductor of the item is used to test vector differential value of passing current, and prodeces a relevant output power and add it to the tripper is secondary winding, if the current of vector differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.
|
|
Standard |
|
IEC 61008-1 |
Electrical Features
|
Rated current In |
A |
16, 25, 32, 40, 63, 80, 100 |
|
Type |
|
A, AC, (s) |
|
Poles |
P |
2, 4 |
|
Rated voltage U |
V |
230/400 |
|
Insulation voltage U |
V |
500 |
|
Rated sensitivity I-n |
A |
0.01, 0.03, 0.1, 0.3 |
|
Short-circuit current I-c |
A |
4500/6000 |
|
Rated residual making and breaking capacity I-m |
V |
630 |
|
SCPD fuse |
A |
6000 |
|
Pollution degree |
|
2 |
|
Rated frequency |
Hz |
50/60 |
Mechanical Features
|
Electrical life |
t |
8000 |
|
Mechnical life |
t |
10000 |
|
Protection degree |
|
IP20 |
|
Ambient temperature |
º C |
-25~+40 |
|
Storage temperature |
º C |
-25~+70 |
Installation
|
Terminal connection type |
|
Terminal with clip |
|
Terminal size top/ bottom for cable |
mm2 |
25 |
|
|
AWG |
18-3 |
|
Terminal size top/bottom for busbar |
mm2 |
25 |
|
|
AWG |
18-3 |
|
Tighten torque |
N*m |
2.5 |
|
|
In-lbs. |
22 |
|
Mounting |
|
On DIN rail EN 60715(35mm) |
|
Connection |
|
From top and bottom |
