Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current(a):: |
6, 16, 20, 25, 32, 40 |
| Type: |
Circuit Breaker |
| Function: |
Overcurrent Protection |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
Product Description

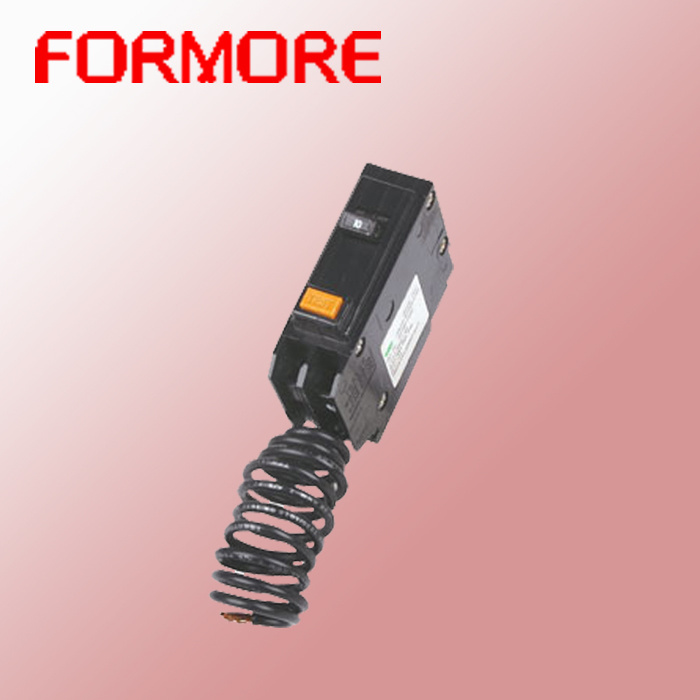

Residual Current Circuit Breaker:
1. Residual current device with overcurrent protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 10KA
4. Rated current(A): 6, 16, 20, 25, 32, 40, 50, 63A
5. Rated voltage: 230V AC
6. Rated frequency: 50Hz, 60Hz
7. Rated leakage operating current(mA): 30, 100, 300mA
8. AC and A types, B-C characteristic
9. Modular DIN Rail products 35mm
10. Tripping duration: Instantaneous≤ 0.1s
11. Electro-mechanical endurance: 4000 cycles
12. Connection terminal: Pillar terminal with clamp
13. Flexible conductor 10mm2
14. Rigid conductor 16mm2
15. Type: Electronic type
16. Pole No.: 1P+N
