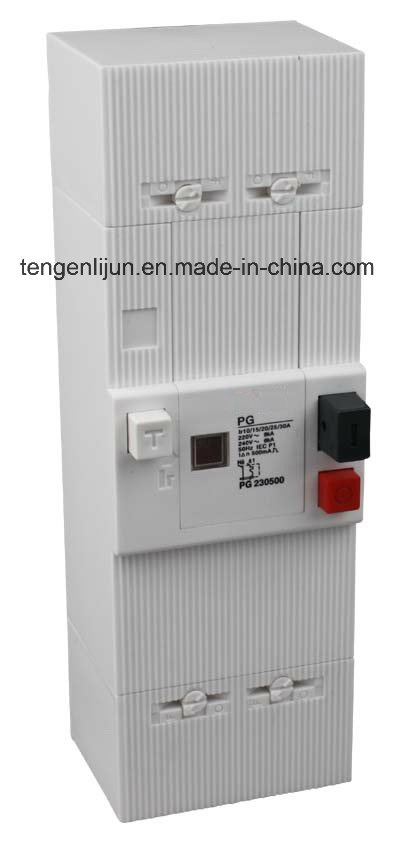

Residual Current Circuit Breaker
Product Specifications
| Prod Model: |
PG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Certification: |
ISO9001-2000 |
| Poles Number: |
2 and 4 |
Product Description
1.Electric ratings: Up to 63A,230V/2P, 400V/4P, AC50/60Hz;Application: for protection of circuit from residual current; User can select suitable current for better protection against overload and short circuit,The products comply with Standard: IEC/EN 61008-1.2.Main Technical Parameter| Type | PG |
|---|
| Pole | 2P | 4P |
| Rated current In(A) | 5~15A(5,10,15)A; 10~30A(10,15,20,25,30)A; 30~60A(30,45,60)A |
| Rated residual operating current In(mA) | 300, 500 |
| Rated residual non-operating current Ino(mA) | 0.5In |
| Voltage Un(V) | 150(220), 250(400) |
| Tripping time | <0.1s |
| Ambient temperature | -5oC~+50oC |
![]()
About usTengen group is a diversified industrial corporation engaged in developing, manufacturing and marketing a wide variety of products for the transmission, distribution, control and utilization of electricity as well as industrial automation and system software. It is headquartered in wenzhou, zhejiang province.
Tengen offers over 90 series of products with close to 10, 000 different specifications, and has the flexibility and resources to meet customer' S demands in the fast-changing global market. In addition, most of our products have CE and ccee approval, ensuring that our products meet the highest quality and safety standards. Tengen also holds ISO9001 and ISO14000 approval for management, and is an industry leader in research and development, quality control, as well as environmentally-conscious manufacturing.
Long Road Electric Co., Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electrical equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric Co., Ltd is committed to the production, marketing and service of smart high and low voltage electrical components, smart power systems, and is one of the most dynamic companies in China's smart electrical industry. The company has strong independent innovation capabilities, has a number of core technologies, and has obtained a number of patents, it has passed IS09001: 2008, 14000, OHSAS18000 and other certifications. Among them, the Internet of Things circuit breakers and DC power distribution products for photovoltaics and communications have a leading level in the industry. They have taken the lead in passing CE, CB, IEC, SGS, Nemko, SAA, SASO, TUV, CCC, Golden Sun, VDE etc. Certification authority.
With the joint efforts of all employees and the strong support of our customers, the company has achieved considerable development, continuously increasing its market share, and has become a high-quality supplier of intelligent high and low voltage electrical appliances. The company's rich product line can provide customers with one-stop system solutions, which greatly facilitates customers' selection and application.
First-class products, derived from advanced design concepts, sophisticated production equipment, strict testing methods, perfect quality assurance system, fast information feedback and excellent after-sales service. Providing users with first-class products and services is Long Road Electric constant pursuit.
Long Road Electric Co, Ltd regards quality of products as life. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 80 countries and regions.
Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
Business Type: Manufacturer/Factory
Business Range: Electrical & Electronics,Industrial Equipment & Components,Instruments & Meters,Service
Plant Area: >2000 Square Meters
Management System Certification: ISO 9001,ISO 14001,ISO 14000,OHSAS/ OHSMS 18001
International Commercial Terms: FOB, EXW, CIF, DAP
Terms of Payment: LC, T/T, D/P, Western Union
Average Lead Time: Peak season lead time: 3-6 monthsOff season lead time: 1-3 months
Number of Foreign Trading Staff: 11~20 People
Export Year: 2010-03-06
Export Percentage: 51%~70%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: No#215, Wei 11 Road, Economic Develop Zone Yueqing City Zhejiang Province, China P. C: 325600, Wenzhou, Zhejiang, China
R&D Capacity: OEM, ODM, Own Brand(Long Road), SUNRUN
No. of R&D Staff: 11-20 People
No. of Production Lines: 8
Annual Output Value: US$10 Million - US$50 Million
