Product Specifications
| Prod Model: |
RC 2P 4P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Antistop: |
Circuit Breakers |
| Workmanship: |
The Exquisite German Technology |
| Protection Degree: |
IP20 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CE |
| Structure: |
Earth Leakage Circuit Breaker |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
Product Description

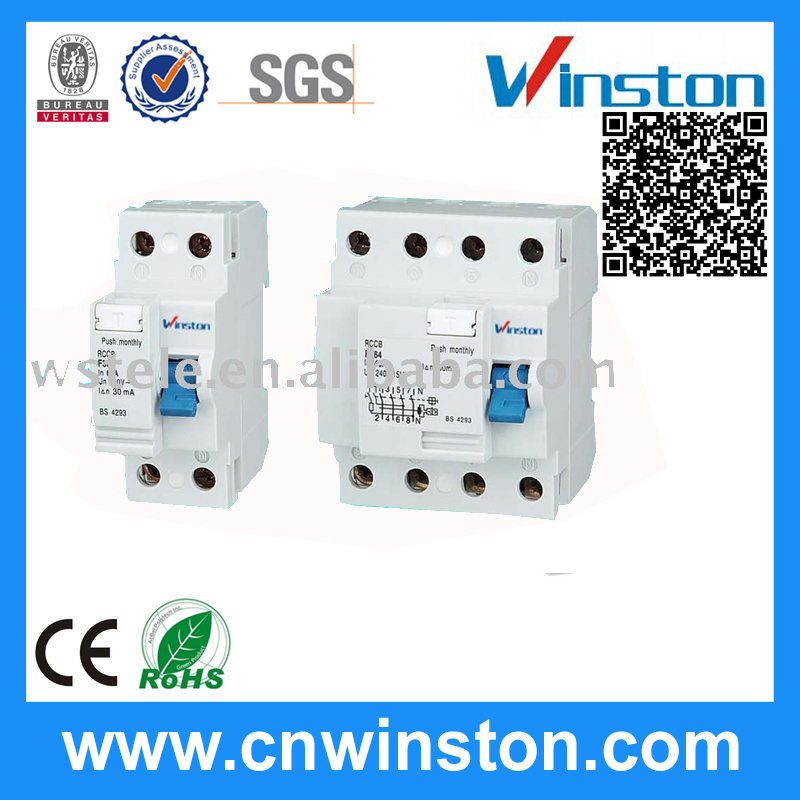

Residual current circuit breakers/RCCBs/RCDs are of new design, has following specifications:
1. Standard: IEC 1008, GB16916, BS EN61008
2. Rated voltage(Un): 2P: 230V AC
4P: 400V AC
3. Rated current(In): 25, 63A
4. Rated residual operating current(IΔ N): 30, 100, 300, 500mA
5. Rated residual non-operating current(IΔ No): 0.51Δ N
6. Residual current off-time: ≤ 0.1s
7. Minimum value of rated making and breaking capacity(Im): 3KA
8. Rated conditional short- circuit current (Inc):
In=25, 40AInc=1500A
In=63 AInc=3000A
9. Eudurance:
Onload: 2000 cycles
Offload: 2000 cycles
All our RCCBs and other circuit breakers are made under strict ISO9001 systems, most already get CE approval.
| Pole No. |
| 2 Pole | 4 Pole |
| Standard Conformity |
| IEC 61008-1 | IEC 61008-1 |
| Rated Current (In) | A | 16, 25, 40, 63, 80, 100 | 16, 25, 40, 63, 80, 100 |
| Sensitivity (In) | mA | 30, 100, 300, 500 | 30, 100, 300, 500 |
| Rated Voltage (Un) | Vac | 240 | 240 / 415 |
| Rated Insulation Voltage (Ui) | V | 660 | 660 |
| Rated Frequency | Hz | 50 | 50 |
| Type |
| A/AC | A/AC |
| Shortcircuit Withstand Capacity | kA | 6 | 6 |
| Residual Making Breaking Capacity | A | 10 In | 10 In |
| Ambient Temperature | o C | -25 to +40 | -25 to +40 |
| Shock Resistance | g | 20 | 20 |
| Vibration Resistance | g | 3 | 3 |
| Electrical Endurance/Mechanical | operations | 10000 | 10000 |
| Mounting |
| Din Rail (35 * 7.5) mm | Din Rail (35 * 7.5) mm |
| Degree of Protection |
| IP 20 | IP 20 |
| Terminal Capacity (max) | mm2 | 25 | 25 |
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
Why choose us?
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be providedyou upon receipt of your new inquiry ASAP.
3.Answer your question detailed
4.Solved the problem with you during using our products
5. Samples will be offered to you for our future cooperation
Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.
Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.
We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.
Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
