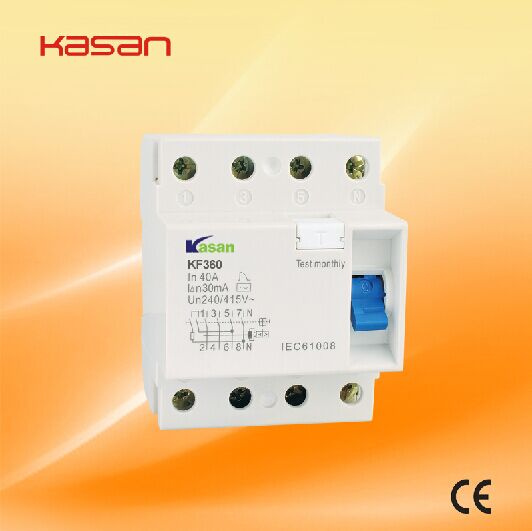

Residual Current Protective Circuit Breaker F360
Product Specifications
| Prod Model: |
F360 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard.: |
IEC/En61008 |
| Pole: |
2.4p |
| Cover: |
Fire Proof |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Poles Number: |
3 |
| Certification: |
CE |
Product Description
F360(F362,F364) series Residual Current Circuit Breaker without over current protection conforms to the standards of GB16916.1, IEC1008, BS4293 etc. It is used in the circuits of AC 50~60Hz, single phase 230V(220V), three phases 400V (380V) in industrial & mining enterprises, commercial buildings and housing for protection of personal electric shock hazard and electric equipment and for unfrequent switchover of
circuits under normal conditions.
specification
Construction and Feature |
| 1)Provides protection against earth fault/leakage current and function of isolation. |
| 2)High short-circuit current withstand capacity |
| 3)Applicable to terminal and pin/fork type busbar connection |
| 4)Fire resistant plastic parts eeendures abnormal heating and strong impact. |
| 5)Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity |
| 6)Independent of power supply and line voltage , and free from external interference, voltage fluctuation. |
| Technical Data |
| 7)Mode :Electro-magnetic type , electronic type |
| 8)Residual current characteristics : A , AC |
| 9)Pole No. : 2,4 |
| 10)Rated making and breaking capacity : 630A |
| 11)Rated current(A) : 1-63A |
| 12)Rated Voltage : 230/415V AC |
| 13)Rated frequency : 50/60Hz |
| 14)Rated residual operating current IΔn(A) : 0.03,0.1,0.3,0.5 |
| 15)Rated residual non operating current IΔno: 0.5IΔn |
| 16)Rated conditional short-circuit current Inc : 6KA |
| 17)Rated conditional residual short -circuit Current I Δ c : 6KA |
| 18)Tripping duration : Instantaneous tripping≤0.1s |
| 19)Residual tripping current range : 0.5I Δ n~IΔn |
| 20)Electro-mechanical enduarance : 4000 cycles |
| 21)Connection capacity : Rigid conductor 25mm2 |
| 22)Terminal connection Height : 12mm |
| 23)Connection terminal : Screw terminal, Pillar terminal with clamp . |
| 24)Fastening torque : 2.0Nm |
| 25)Installation : On symmetrical DIN rail 35mm, Panel mounting . |
