Product Specifications
| Prod Model: |
Refrigeration parts |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo |
| Material: |
Steel |
| Muffler Type: |
Rear Muffler |
| Deck: |
Single |
| Type: |
Vibration Absorber |
Product Description
Specifications
1.Forged copper connection
2.Advanced brazed welded, no leakage
3.Made of full stainless steel or copper bellows

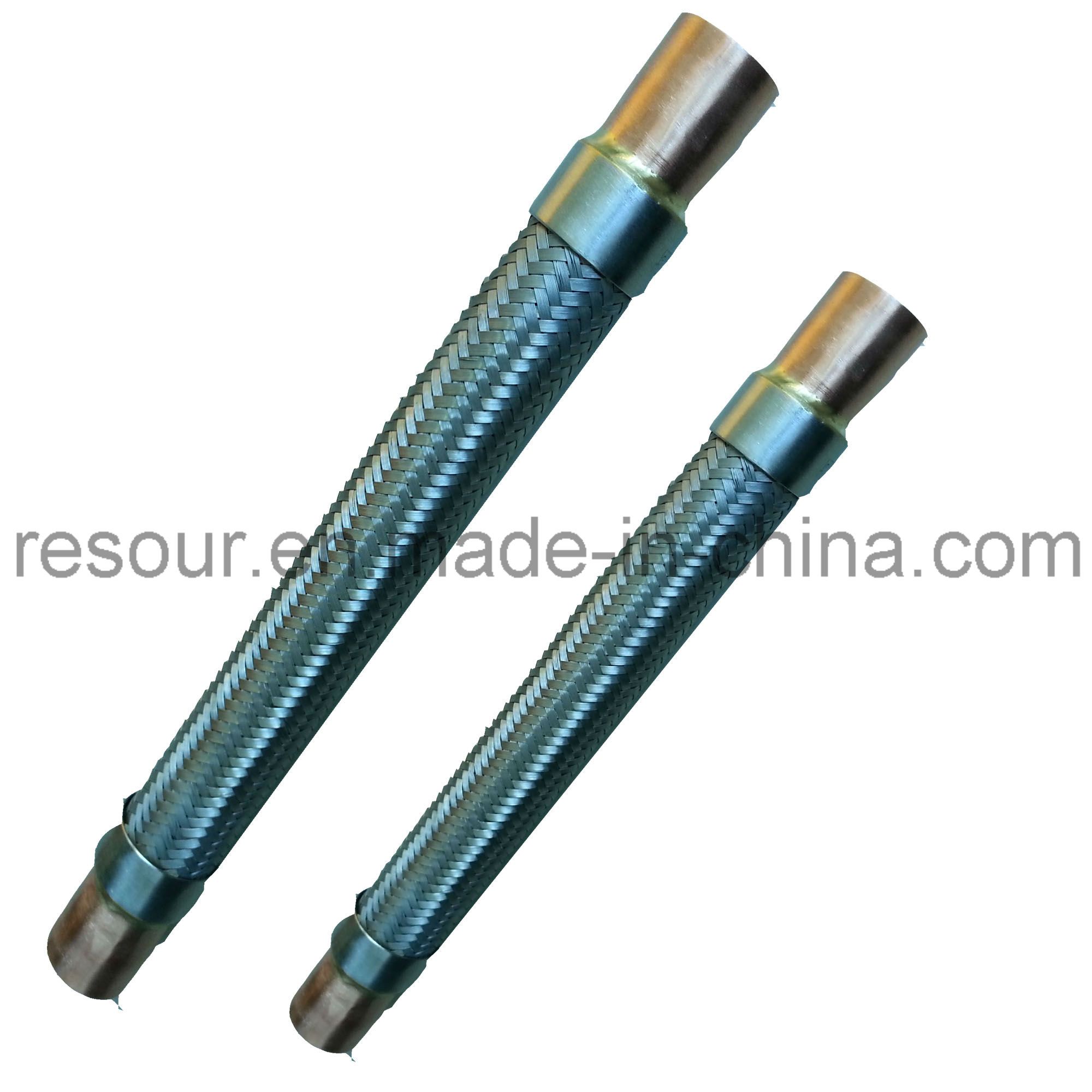

RESOUR Vibration Absorber For Refrigeration Unit
Application:
Used for connection between circulating tubes and compressors of air conditioner, refrigerators, congealers and etc to absorb vibration caused by the compressors and protect the whole tube system.
Feature:
1. The vibration absorbers are produced by deep pitch corrugated tubing for increased flexibility and vibration absorption, covered by high tensile wire braid for superior strength.
2. The tubing and braid are reinforced by ferrules at each end, and connected to a female copper tube end by high temperature of brazed alloys.
3. Each Vibration Absorber is tested for pressure and then carefully vacuum tested using a highly sensitive helium mass spectrometer leak detection device.
Technical Parameter:
1. Applicable refrigerants: HCFC and HFC.
2· ODS connection and various lengths are available.
3· Applicable medium temperature: -40°C~+150°C
| Model | SIZE | DIMENSIONS | MAX Working Pressure | Burst Pressure |
| A | B | C | D | E |
| (I.D) | (±3) | (±3) | (±6) | (±1.5) |
| Inch | mm | mm | mm | mm | mm | (psiG) | (psiG) |
| RS-VA-1 | 3/8" | 9.62 | 20 | 177.5 | 217.5 | 13 | 500 | 2500 |
| RS-VA-2 | 1/2" | 12.8 | 20 | 188.6 | 228.6 | 13 | 500 | 2500 |
| RS-VA-3 | 5/8" | 16.2 | 22 | 206.8 | 250.8 | 17 | 500 | 2500 |
| RS-VA-4 | 3/4 | 19.2 | 28 | 212.3 | 268.3 | 17 | 500 | 2500 |
| RS-VA-5 | 7/8 | 22.5 | 30 | 244.8 | 304.8 | 18 | 500 | 2500 |
| RS-VA-6 | 1-1/8 | 28.8 | 38 | 255.3 | 331.3 | 20 | 500 | 2500 |
| RS-VA-7 | 1-3/8 | 35.3 | 40 | 315 | 395 | 22 | 500 | 2500 |
| RS-VA-8 | 1-5/8 | 41.7 | 50 | 328.6 | 428.6 | 23 | 500 | 2500 |
| RS-VA-9 | 2-1/8 | 54.5 | 60 | 403.8 | 523.8 | 23 | 390 | 1950 |
| RS-VA-10 | 2-5/8 | 67 | 76 | 465.5 | 617.5 | 25 | 340 | 1700 |
| RS-VA-11 | 3-1/8 | 79.6 | 85 | 514.2 | 684.2 | 25 | 300 | 1500 |
| RS-VA-12 | 3-5/8 | 92.5 | 100 | 617.5 | 817.5 | 25 | 175 | 525 |
| RS-VA-13 | 4-1/8 | 104.9 | 110 | 616.6 | 836.6 | 25 | 175 | 525 |
please contact us to get more details.
