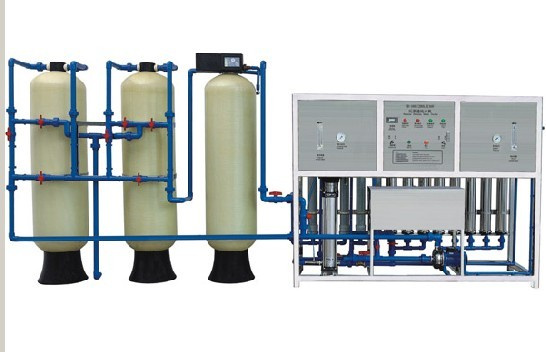

Reverse Osmosis Water Purification Machine RO-1000I (2000L/H)

Product Specifications

Prod Model:	RO-1000I(2000L/H)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Industrial
Capacity Of Pure Water:	2000L/H 25c
General Power:	4.75 Kw
Electrical Power:	AC 380V 8.8A 50Hz
RO Membranes:	CPA2 4040 8items (Single Grade)

Product Description

Description of Reverse Osmosis System Water Purification Machine: 1. What is reverse osmosis / RO membrane system Reverse osmosis is one of the most advanced technologies to purifier tap water, underground water, bore hole water, river water, sea water, brackish water in the world. It can remove more then 97% of deliquescent saline substance and 99% of colloid, microbe, particulate and organic substance in water. It is widely used in foodstuff, pharmaceutical, chemical industry, electronic industry for terminal process. It is a key for water purification machine. 2. The process of RO system Raw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- Security filter / PP sediment filter -- high pressure pump-- RO systemPure water tank-- UV/Ozone --Pure Water 1). Raw water pump-- provide the pressure to quartz sand filter/active carbon filter 2). Quartz filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc. 3). Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc. 4). Water Softener--using ion exchange resin to exchange "ions" of calcium and magnesium is the most common and the easiest method of removing hardness of water and render the water suitable for utility purpose 5). Security filter--It is also called cartridge Filter, prevent any deposition of large Particles, most of the bacteria, and viruses into the UF membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. 6). High pressure pump-- The high pressure pump is used for make sure there are enough water for satisfying designed production capacity. 7). RO (reverse osmosis) system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic Main Parameters: RO-1000I(2000L/H) Model: RO-1000I(2000L/H) Capacity of pure water: 2000L/H 25C General power: 4.75 KW Electrical power: AC 380V 8.8A 50Hz RO membranes: CPA2 4040 8items (single grade) Multi-stage pump: CDL4-220/4.0KW 1 item Beforehand filter: 450× 1650 2 items Ion exchange tube: 450× 1650 1 item Auto control valve: 180/440 1 item PP sediment membranes filter tube: 90× 1000 5items Booster pump: BLC70/0.75 KW 1 item Quartz sand filter: 250 Kg Active carbon filter: 125 Kg Cation: 100 L Functions: RO membranes auto wash and manual wash; RO membranes manual wash with medicine; Pure water high water level auto stop, low water level auto start; Multi-stage pump protected without water; Protected when no power, poor power, large electrical current, short circuit, creepage of electricity and so on. Size (mm): 4800× 700× 2050 Model RO-1000I (1000L/H) RO-1000I (2000L/H) RO-1000I (3000L/H) Capacity of output water 1000 Liters/ Hr 25 degree 2000 Liters/ Hr 25 degree 3000 Liters/ Hr 25 degree General power 5.25 KW 4.75KW 9.0KW Input Electrical power AC 380V 12A 50Hz AC 380V 8.8A 50Hz AC 380V 30A 50Hz RO membranes USA Hydranautics ESPA4040  6PCS Double pass USA Hydranautics CPA2 4040  8PCS Single pass USA Hydranautics ESPA 4040  10pcs Single pass High pressure pump CDL4-160/3.0 KW 1set CDL2-150/1.5 KW 1set CDL4-220/4.0KW 1 set CHL8-30/1.1kw 1 set Pretreatment filter (mm) dia450(diameter)×1650(height) 2 sets  FRP material dia450(diameter)×1650(height) 3 sets  FRP material Dia 500 ×1200mm ×1.5mm2 sets stainless steel 5 micro PP sediment filter dia90×1000  5PCS dia90×1000  5PCS dia 330×Height500mm×1.5 (8pcs pp) Booster pump BLC70/0.75 KW 1set China Lingxiao pump BLC70/0.75 KW 1set China Lingxiao pump CNP(China Nanfang Pump) CDL4-220/4.0 KW Active carbon 125kg 125kg 150kg Quartz sand 250kg 250kg 300kg Softener cation No 100L No PLC South KoreaLG South KoreaLG South KoreaLG Electric parts JapanOmron JapanOmron JapanOmron Size (cm) 320×70×197 480×70×205 295×104×178/250×85×180
