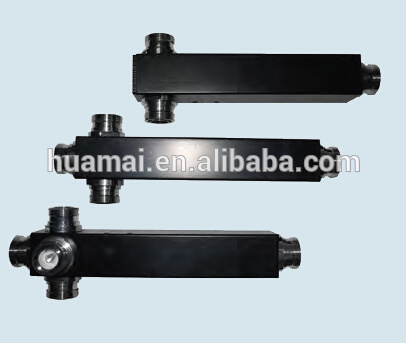

RF 4 Way Power Splitter / Divider 800-2700MHz DIN Female
| Price: |
US $ 13/Piece |
| Trade Terms: |
FOB |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
MSTE-N8025A-4-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
| Condition: |
Used |
Product Description
Packaging & Delivery
Packaging Details: | carton |
|---|
| Delivery Detail: | 7 days after get order contract |
|---|
RF 4 way Power Splitter 800-2700MHz N Female
？ Multiple-Band Frequency Ranges
？ 500 Watt Power Rating
？ High Reliability
？ Low Cost Design for ease of mounting
？ DIN-Female Connector
Characteristics |
General Specifications |
Connector Type |
N Female |
Color |
Grey or Black |
Electrical Specifications |
Operation Frequency Band |
800-2700MHz |
PIM3 (dBc) |
≤-150@+43dBmX2 |
Average Power, Maximum |
500W |
Impedance |
50Ω |
Split Loss |
6.0dB |
VSWR |
≤1.2 |
Mechanical Specifications |
Inner Contact Plating |
Silver |
Outer Trimetal Plating |
Trimetal |
Environment Specifications |
Application |
Indoor |
Operation Temperature |
-30ºC~+70ºC |
Relative Humidity |
Up to 100% |
Nanjing Huamai Technology Co., Ltd is a joint-stock and private-run high-tech enterprise, and engaged in the research and development, design, manufacture and sale for telecom distribution products, passive microwave products. Our company established in 1998 with registered capital RMB 72.5 million. Currently, there are 1200 employees, 35000 square meters building area in our company.
As a leading manufacturer of telecommunications telecommunication, Nanjing Huamai Technology is focusing on providing first products. We stand on two main industries, fiber optical telecommunications and wireless telecommunication. Fiber optic telecommunications products covers all necessary parts from OLT to ONU in full series of ODN networks, and microwave telecommunication products include indoor signal distribution system and passive microwave components.
With the development and upgrade of PON network technology in domestic market, our company seized the opportunity of the development of optical communication network in time. And established The Research Center with South-East University for photonic-integration in 2010, which is dedicated to photonic-integration chip for PLC. Through the introduction of advanced technology and the achievement of the overall structure transformation, it make our company become the largest photonic integrated chip production base in domestic and improve the comprehensive competiveness of our company.
Our company has passed the evaluation of ISO9001, ISO14001, ISO18001 systems and fiber optic products RoHS certification. With high quality and best services, our products are not only sold well in the Chinese market, but also exported over 40 countries and regions.
Main products
Our company covers following products: Telecommunication cabinet products, (including main optical distribution frame(MODF), optical distribution frame(ODF), digital distribution frame, fiber optical cross connection cabinet, fiber optic splice closure, fiber optic terminal box, fiber optic distribution box and network cabinets etc. )Integrated wiring system (broadband access and integrated distribution box, outdoor cabinet, integrated frame series etc. )Power distribution cabinet, microwave passive devices, GPS antenna front-end module communication antenna. Design, production and service of base station antenna; Optical passive components (PLC splitter, optical fiber connector, fiber splice-on connector, field assembly connector, WDM components etc. ) optical cable, the production and service of trunk amplifier.
