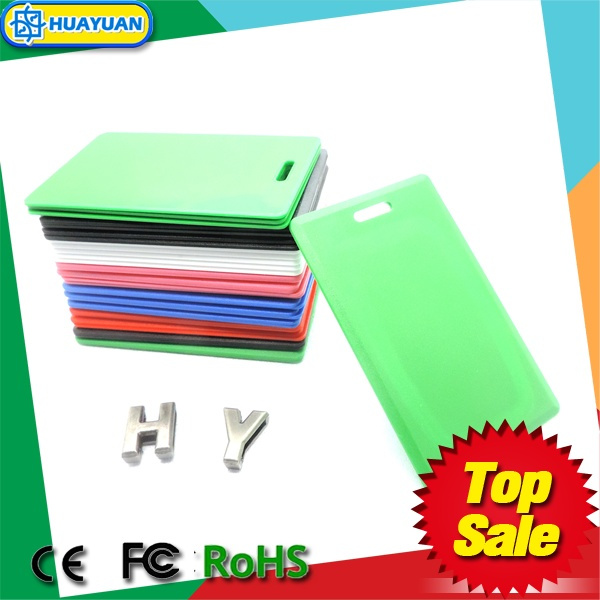

Product name: 125Khz RFID chromatic clamshell card low price
New arrival Multicolor RFID Clamshell card
With hard ABS clamsheel like case at one side, PVC layer at another side, it is an economic classic type of card for access control for more than twenty years. Enough space in card, enclosing up to 600 round cycle ofcopper wire antenna and connecting to COB (chip on board), it is a lost cost production in manual work especial for Low frequency RF badage.
Specidfication of RFID Clamshell card
IC type: |
EM4100, EM4200,EM4300, EM4500 serials; ATMEL T5577; NXP Hitag 1/2,; optional for any kind of RFID chip. |
Frequency: |
Operating frequency: 125KHz/134.2KHz |
Material: |
Hard clasmshell: ABS; Cover foil: = PVC |
Thermal: |
Operating: -30ºC and +65ºC |
Resistance: |
The card is designed for resisting normal hursh environment |
Printing: |
Silkscreen printing customized,
Engrave logo mark on clamsheel optional |
Optional: |
Magnetic button in the card for automatic Magnetic sneser on reader. |
Warranty Period: |
1 Year |
Product Description
Custom pre-printed artwork is available.
The proximity card can accept direct-print adhesive backed labels for use as a Photo ID card.
Key Features of the muti color Clamshell Card
Price competitive with all other card technologies.
Offers universal compatibility with all proximity card readers.
Provides durable packaging and consistent read range.
Provides an external number for easy identification and access control.
Supports formats up to 85 bits, with over 137 billion codes.
Custom pre-printed artwork available.
A PVC overlay allows for on-site photo ID using most direct image printers.
Thin enough to carry in a wallet or purse.
Related Poducts
Huayuan also have many replated products,please check below:
RFID card |
| Card type | RFID card/smart card/contactlessRFID card |
| Material: | PVC/PET/PETG |
| Size: | ISO CR80 Standard:85.5*54mm, 20*45mm, 30*50mm,or your customized |
| Thickness: | Standard:0.84mm, 0.3mm~1mm according to your request |
| Chips and frequency | LF(125KHz) | ISO11784/11785 chip |
| HF(13.56MHz) | ISO15693/14443A/18092 |
| UHF (860z-960MHz) | ISO18000-6C/EPC C1 GEN2 |
| Write cycle | 100000 times |
| Reading distance | LF,HF(1-10cm) | Up to the antenna, environment, size, material etc. |
| UHF(above 3m) |
| Craft | CMYK offset printing, Silk-screen printing,Thermal printing |
| Digital printing, Magnetic stripe, |
| Barcode, Golden/silver hot-stamping, Signature panel, |
| Series number printing, UV printing, |
| UID number printing, laser engrave QR code etc. |
| Gloosy, Matt, Frosted finish |
| Applications | Public transportation ( Metro card, Bus IC card etc.) |
| Access management |
| Event ticketing |
| Gaming, enterprises,bank,insurance,parking,school,library |
| Security and Identification |
| Packing | Standard export packing: 200pcs/white box, 5000pcs/ctn. G.W. 35KG |
| Packing way can according to your request |
PIC
Printing
HUAYUAN understands Printing is key issue to meet client's satisfactions. Therefore HUAYUAN prints cards strictly according to client's layout with Heidelberg printing machine. Keeping the consistency between printing effect and approved layout is always the priority to HUAYUAN.
QC:
Every single card will be carefully checked by machine or manual work before delivery.
Company Information
HAUYUAN had also established good and strategic partnership with many international leaders in Smart Card and RFID industry, with 20 years rich experience.To make sure our quality for clients, Our products must pass certification.
Our Business Scales: RFID / NFC Card, Tag, wristband, keyfob, Reader, etc.
Art craft
Available Crafts for Smart RFID card:
Hot stamp (gold/silver/red), Laser silver/gold, Laser Engraving, Ink jet printing, Scratch off panel, Barcode/QR code, Thermal printing, Hologram, Embossing, Adhesive sheet, UV ink, Hologram, Hole punch, etc.
Perso Printing:
New Product
Here is our new Metallic pearl card, it is pvc pearl material with perso printing, with cheaper price than previous art craft, very fashion and beautiful, suitable for promotion, when people get this kind card, must value it, How do you think?
Even though it is with metallic, but RFID can read, Welcome you guys to discuss more with me.
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
