Product Specifications
| Prod Model: |
RG6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor Material: |
Copper |
| Application: |
Coaxial Cable |
| Type: |
Coaxial Cable |
Product Description

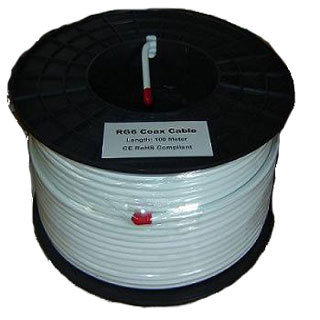

RG6 Coaxial Cable
Construction:
Inner Conductor: 1.02± 0.02mm Copper Clad Steel (20%)
Dielectric: 4.57± 0.05mm Foam PE
Shield: Bonded Aluminum PET
Braid Coverage: 0.16mm *16*6(80%)AL-Mg Alloy
Shield: Aluminum PET Aluminum
Jacket: 6.80± 0.05 mm PVC
Jelly/APD: Per Customized
Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
|
Attenuation Performance [@68 ° F. (20 ° C)] |
|
Frequency(MHz) |
Maximum (dB/100ft) |
Maximum (dB/100m) |
|
5 |
0.58 |
1.90 |
|
55 |
1.60 |
5.25 |
|
211 |
2.87 |
9.41 |
|
250 |
3.10 |
10.16 |
|
300 |
3.43 |
11.25 |
|
350 |
3.72 |
12.20 |
|
400 |
4.00 |
13.11 |
|
450 |
4.26 |
13.97 |
|
500 |
4.55 |
14.92 |
|
550 |
4.71 |
15.44 |
|
600 |
5.05 |
16.56 |
|
750 |
5.59 |
18.33 |
|
865 |
7.50 |
19.51 |
|
1000 |
6.54 |
21.44 |
Hangzhou Lin'an Guangda Cable Co., Ltd, established in 2006, is specialized manufacturing high quality coaxial cables, which have been widely used in broadcasting network, satellite system installation, CATV, CCTV and HDTV. We have been exporting to more than 20 countries and regions, our cables are well-selled in North America.
Employee: More than 200, team of highly qualified and skilled engineers and employees
Main products: Coaxial cable RG59 series, RG6 series and RG11 series, with standard shield, Tri-shield and Quad shield, also messenger cable and combined Coax/Power cable are available.
Monthly capacity: 20, 000kms.
Equipments: Agilent network analyzer, HP-8714E network analyzer, retardant tester, capacitance measuring tester, Oxygen index tester, Micro-computer tensile strength tester, scalar analyzer, withstand voltage tester, insulated resistance tester
Certificates: UL, CUL, CSA, ETL, CE, RoHS, REACH, ISO9001
