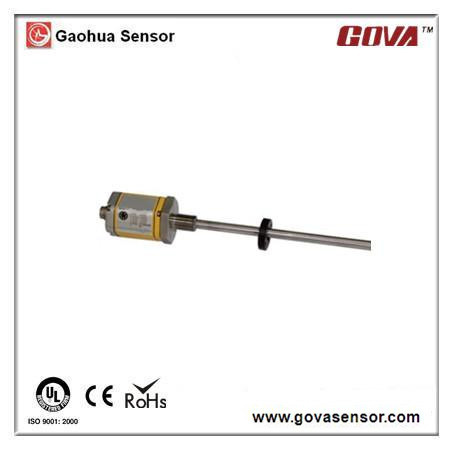

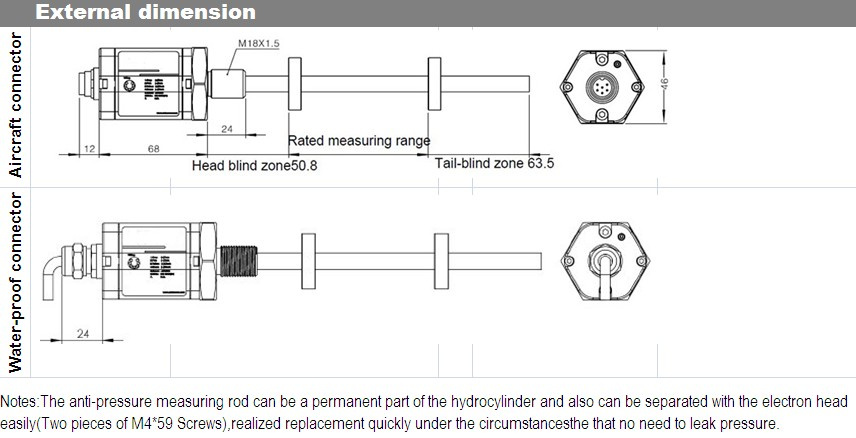

RH-Analog Linear Position Sensor
Feature
>Sturdy,reliable ,oil proof and stain resistance.
>Absolute location output,no need to return to zero.
>Non-contact measurement,no physical deterioration forever.
>High resolution,analog output 16 binary digit D/A,infinite resolution.
>Nonlinearity degree,<±0.01%F.S.
>Repeatability precision,> ±0.001% F.S.
>LED for sensor diagnostics
>Modular design,convenience to replace.
| Parameter Measured |
| Measurement range | 25-7600mm |
| Output signal | 0~20mADC / 4~20mADC (min./max. load:0/500 Ohm) |
| 0~10VDC / -10~+10VDC (min.load>5k Ohm) |
| Resolution | Analog output 16 binary digit D/A |
| Nonlinearity degree | <±0.01% F.S.(min.±50μm) |
| Repeatability precision | <±0.001% F.S.(min.±1μm) |
| Refresh time | 0.5ms(F.S<1m) |
| 1.0ms(1m |
| 2.0ms(2m |
| 4.0ms(4m |
| Structure&Material |
| Head | Aluminium alloy |
| External tube for protection | Stainless steel 304L |
| Flange fixed | Stainless steel 304L |
| Electric feature |
|
| Outgoing line | Water-proof connector,or 6 lamp pith aircraft connector |
| Input voltage | 24VDC(-15/+20%) |
| Working current | <50mA(changing depend on F.S.) |
| Polarity protection | max.-30VDC |
| Overvoltage protection | max36VDC |
| Insulating ability | 500V(between the signal GND and the housing) |
| Fault indication | Red & green LED pilot lamp. |
| Working condition |
| Magnetic speed | Random |
| Ambient temperature | "-40ºC~+85ºC |
| Humidity/Dew point | Humidity 90%,No dew |
| Temperature coefficient | <30ppm/ºC |
| Grade of electrical protection | IP67 |
| Anti-pressure ability | 35MPa(Continuously)/70MPa(Peak value) |
