Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Renhotec |
| Place Of Origin: |
Guangdong.China |
| Model Number: |
Renhotec-610-0003 |
| Connector Type: |
BNC Connector |
| Gender: |
Female |
| Color: |
Black |
| Material: |
Customized |
| Angle: |
Right Angle |
| Pin Contact: |
Brass |
| Insulator: |
PTFE |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Clamping Type |
Product Description

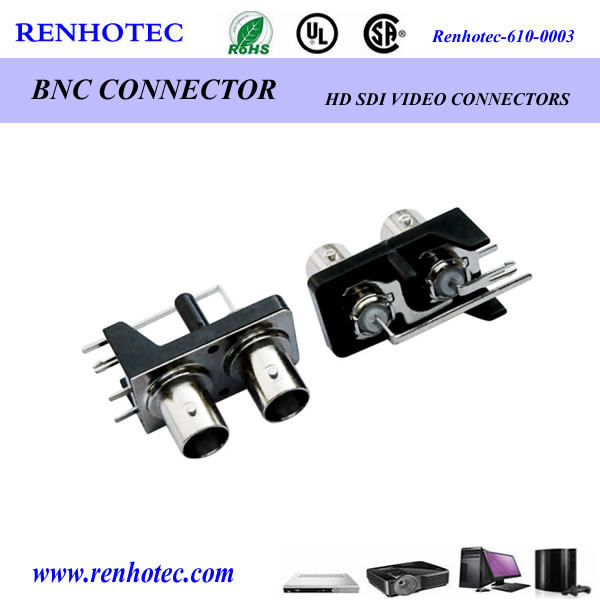

Right Angle BNC Connector PCB Mount Connector
The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
Renhotec offers many types of BNC connector. Panel Mount BNC Male Connector/ BNC Male cable connector/ Flange Type BNC Connectors/Chassis Mount BNC Connector/ multiport BNC Female Connector/ Straight Right Angle BNC Connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Impendance | 50ohm, 75ohm |
| Frenquency Range | DC-4GHZ |
| Working Voltage | 500V r.m.s at sea level |
| Workstandinging Voltage | 1500V r.m.s at sea level |
| Center Contact Resistance | ≤1.5Mohm |
| Outer Contact Resistance | ≤1Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltagge Standing Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass.........................Nickel |
| Insulator | Delrin.........................Natural |
| Contact Pin | Brass.........................Gold |
| Ferrule | Copper......................Nickel |
| Suitable cables |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
Packing:
Normal packing: 100 pcs per tray or polybag ,1000pcs per carton.
Private packing and label service are available as per your requirement.
Shipping:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Welcome to contact us! We are the factory Manufactures of electronic components in China, Your best connector parner!
