Product Specifications
| Prod Model: |
220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Range: |
0~50kn |
| Test Range: |
2%~100% of Max. Load |
| Load Accuracy: |
1 Grade, Priors to ±1% |
| Power Supply: |
AC220V, 50Hz |
| Dimensions: |
840×660×2500mm |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |

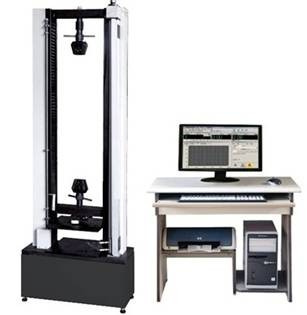

Product Description
Features:
Panasonic (Japanese) AC servo motor, high precision screw without clearance
High precision photoelectric encoder to accurately determine the displacement
Highly automated, can perform different test standards by using different clamps
Software analysis function: Tensile strength, bending strength, yield strength, elongation, peeling strength, etc.
Test result with automatic storage
With professional software, can select several test curves to printout: Stress-strain, load-strain, load- time, load-displacement, displacement-time, deformation-time, etc.
Safety protection function: Limitation protection, over-load protection, over-current protection, over-voltage protection, etc.
Low noise, high efficiency.
| Technical Specification |
| Model | 220 |
| Load range | 0~50kN |
| Test range | 2%~100% of max. load |
| Load accuracy | 1 grade, priors to ±1% |
| Power supply | AC220V, 50Hz |
| Dimensions | 840×660×2500mm |
| Weight | 500kg |
| Standard Configuration |
| No. | Item | Quantity |
1. | Main machine | 1set |
2. | Deformation test system | 1set |
3. | Clamp for ring stiffness test | 1set |
4. | Software for ring stiffness test | 1set |
5. | Packing list | 1pc |
6. | Quality certificate | 1pc |
7. | User manual | 1pc |
| Optional Configuration |
| No. | Item |
| 1 | Computer |
| 2 | Printer |
| 3 | Tensile clamp |
| 4 | Compression clamp |
| 5 | Bending clamp |
| 6 | Other clamp |
