Product Specifications
| Prod Model: |
HXH45R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulation: |
PE |
| Jacket: |
PVC |
| No.of Conducto: |
4p8c |
| Gauge: |
28AWG |
| Conductor O.D: |
7*0.18mm |
| Connector: |
RJ45-RJ45 |
| Regular Color: |
Blue, Coffee |
| Usage: |
Computer |
| FOB Port: |
Shenzhen and HK |
| Warranty: |
One Year |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
RoHS |
| Model: |
Hxh |
Product Description

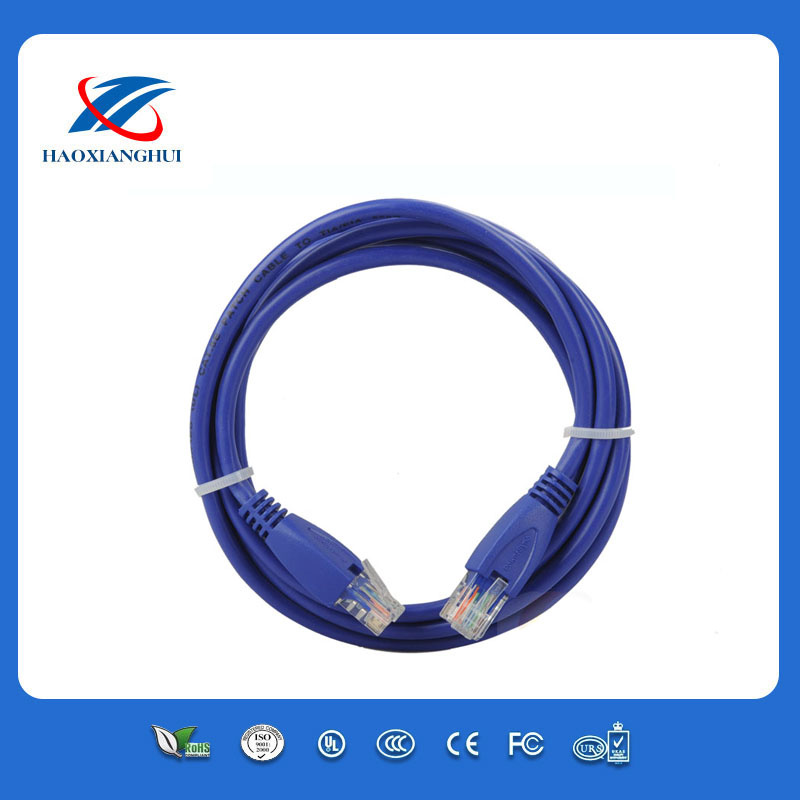

RJ45 Computer Networking Cord Ethernet Patch Cable
Packaging & Delivery
Packaging Details: | carton size: 40*30*26cm |
| Delivery Detail: | within 2-3 weeks |
Specifications
Network cable manufacturer
Conductor:CU/ CCA/CCAU
Cheapest factory price
ROHS compliance
CAT5/ CAT5E/ CAT6 structured network cabling
Specification:
Conductor: 24AWG,26AWG,28AWG available
Insulation: High-density PVC
Jacket:PVC, PE OR LSZH
Enhance Connector: RJ45 8P8C Gold Plating 3 u"-50u''
Diameter of insulated conductor: 0.98 ± 0.05 mm (0.039" ± 0.002")
Jacket color: blue, black, green, grey, purple, pink, orange, red optional
Electrical Specifications:
Dielectric strength |
2.5KV dc-2seconds |
Conductor resistance |
Max 9.38ohm/100M at 20°C |
Insulation Resistance |
500VDC 50MΩ |
Max. ring resistance |
16.8 ohm/100M at 20°C |
Max. mutual capacitance |
560 pf/100M |
Max. capacity unbalance |
330 pf/100M |
Standard impedance |
100±15 ohm between 1Mhz and 100Mhz |
Minimum bending radius |
50mm |
Working temperatures |
-20~60°C |
Fluke Test on DTX1800(USA) |
100% pass 90m Fluke Test |
Features:
(1)Solid OFC , Copper , CCA Conductor Allows High Performance .
(2)Fast and Reliable Connection.
(3)Well Twisted Pairs with Bright Color PE.
(4)Smooth Jacket for Easy Pulling in Tight Space
(5)Color in Light Grey , Dark Grey , Blue , White or as per your Requirement.
(6)Flammability rating for PVC and LSZH cords: IEC 60332-6
Shipping Information:
We guarantee to ship out within five to seven days after the confirmation of your payment.(Except Holiday).
In order to ensure you receive your order tax free upon import, we will declare small sample order as a 'GIFT' with a lower value. This lower price does not reflect the total price you paid or the market value of the product. And it may not apply to countries with different tariff rules. Any import charges or fees are the buyer's responsibility.
Delivery time is approximately15 to 20 working days (excluding Saturday & Sunday, Public Holiday) to most destinations.
We are not responsible for any accidents, delays or other issue aroused by the shipping service.For item's safety, insurance is highly recommended.
Please confirm and make sure the shipping address is correct. We are not responsible for any wrong or undeliverable .
SHEN CITY GOOD PHASE HUI ELECTRONICS Co., Ltd was established in 2000 and located in Shenzhen City. Our company covers 5600 square meters and 500 professional technicians and employees.
With strong technical capabilities, complete set of equipment and facilities, advanced technology and perfect testing and inspecting measures, we specialize in produce HDMI CABLE, VGA CABLE, USB CABLE, CABLE for iPhone, DVI CABLE, SATA CABLE and so on.
We can also undertake OEM orders of processing various special fiber optic cables. Our products sell well in domestic and foreign market and are widely used by many famous corporations.
We have set up a functional modern business management system and carried out ISO9001: 2000 quality management system for many years. We are authorized with independent import and export rights. Our products have obtained many product safety certificates including CCC (China) and UL (USA). We are always insisting on the operation principle of "your satisfaction is our pursuit", and the tenet of "Development, Innovation, Practical and Honest".
We will try our best to satisfy customers' requests. We sincerely welcome all clients to cooperate with us hand in hand for a wonderful future!
