Product Specifications
Prod Model: |
6C-BIDI-0380A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
6COM |
Product Name: |

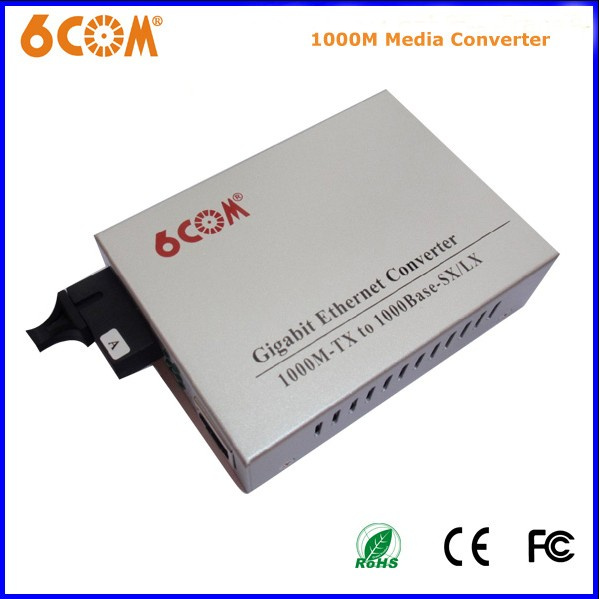

Media Converter |
Model Number: |
6c-Bidi-0380A |
Wavelength: |
1550nm Tx/1590nm Rx |
Connector Type: |
Sc |
RJ45: |
1-RJ45 |
Temperature: |
0~+70 |
Fiber Mode: |
Single-Mode Dual Fiber |
Certificates: |
CE RoHS FCC |
Distance: |
80km |
Type: |
Fiber Transceiver |
Wiring Devices: |
Wired |
Product Description
1.Wavelength 1510nm TX/1590nm RX
2.Distance 80Km
3.Single-mode dual fiber
4.CE, RoHS, FCC
Features
In conformity to IEEE 802.3 10 Base-T standard.
In conformity to IEEE 802.3u 100 Base-TX/FX standard.
Max. 2M buffer memory built in chip.
Back pressure flow control for full duplex
IEEE802.3 X and half duplex.
Automatic identification of MDI/MDI-X cross line.
High-performance1.4Gbps memory bandwidth.
In conformity to safety code of FCC and 15 CLASS B and CE MARK.
Applications
Optical fiber communications systems;
Optical fiber access network;
Optical fiber CATV.
Optical fiber test equipments;
Optical fiber data communications;
LAN
Item No. |
Description |
6C-BIDI-0380A |
Single-mode single fiber,80km |
