Robot Palletizer for The Paint Filling Machine
Product Specifications
| Prod Model: |
YGZX-1-2-20L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stacking Speed: 15 Barrel/M: |
Card Board Placement: 10 Card Boards Each Time |
| Usage: |
Produce Packing Belt |
| Driven Type: |
Electric |
| Applicable Industry: |
Commodity |
| Packaging Type: |
Barrel |
| Packaging Material: |
Composite Materials |
| Packaging Technology: |
Shockproof Packaging |
| Soft And Hardness: |
Semi-Rigid Package |
| Application: |
Oil |
Product Description
| stacking speed | 15 barrel/minute,2×(4×4)or 2×(4+4+4+3) barrels |
| automatic card board placement | place at least 10 card boards each time |

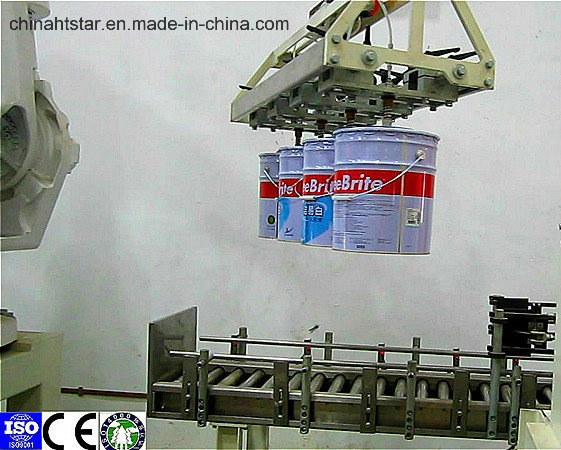

Anti-explosion stacking unit: mainly consist of heavy barrel grouping conveyor line, feeding tray, stacking position conveyor line, hoist, barrel clutching mechanism, heavy stack storing line, pneumatic system, anti-explosion electric control system and others, which can be used to perform functions such as heavy barrel storage, arrangement, stacking, feeding storage and conveyance. When heavy barrels go through hoist and clutching mechanism, they will be stacked on trays by way of 4/4/4/4 or 4/3/4/3 for each layer by two rows. When finished, they will be conveyed to heavy stack storing line where they will be moved by forklift. When they are moved by forklift, empty stack will stand by for stacking. Stacking warehouse can store 10 stacking rows, while heavy stack storing line can store two heavy stacks. Stacking unit is controlled by PLC and human-machine dialogue is achieved by text display.
20L two-head automatic filling line is a volumetric line controlled by PLC, which can perform functions such as automatic barrel loading, automatic barrel distributing, automatic labeling, automatic barrel feeding, automatic filling, automatic weighing, automatic cap loading, automatic cap distributing, automatic cap scraping, automatic cap pressing, automatic tray distributing, automatic stacking and automatic conveyance. It features reliable performance and touch-on user-friendly interface, which allows operations such as parameter configuration, online display, fault prompt, and whole interlocking.
Beijing Aerostandard Technology Co., Ltd Belong to the 702 Institute of First Academy of China Aerospace Science and Technology Corporation. In order to implement the central principle of "conversion of military products to goods for civil use", in the early 1989, we succeeded in developing a fully automatic explosion-proof liquid filling line, which was then followed by the formation of series of filling lines from 1L to 1000L, The Filling materials include inflammable and explosive products, toxic chemical products, coatings, lubricants and other liquid materials. The models are divided into fully automatic type, semi-automatic type, conventional type, explosion-proof type, linear type, rotary type, weighing type, volumetric type and so on. The processes include filling, cap sorting, cap screwing or pressing, box packing, stacking and other selections for users.
In 1994, we were identified as state-level popularized project by State Science Commission, became one well-known brand in the filling market at home and abroad and were highly praised by users. Our product quality is controlled by the military quality assurance system and ISO9000 quality certification system. We have a very strong after-sales service team, and can relieve your worry if you select this aerospace brand.
