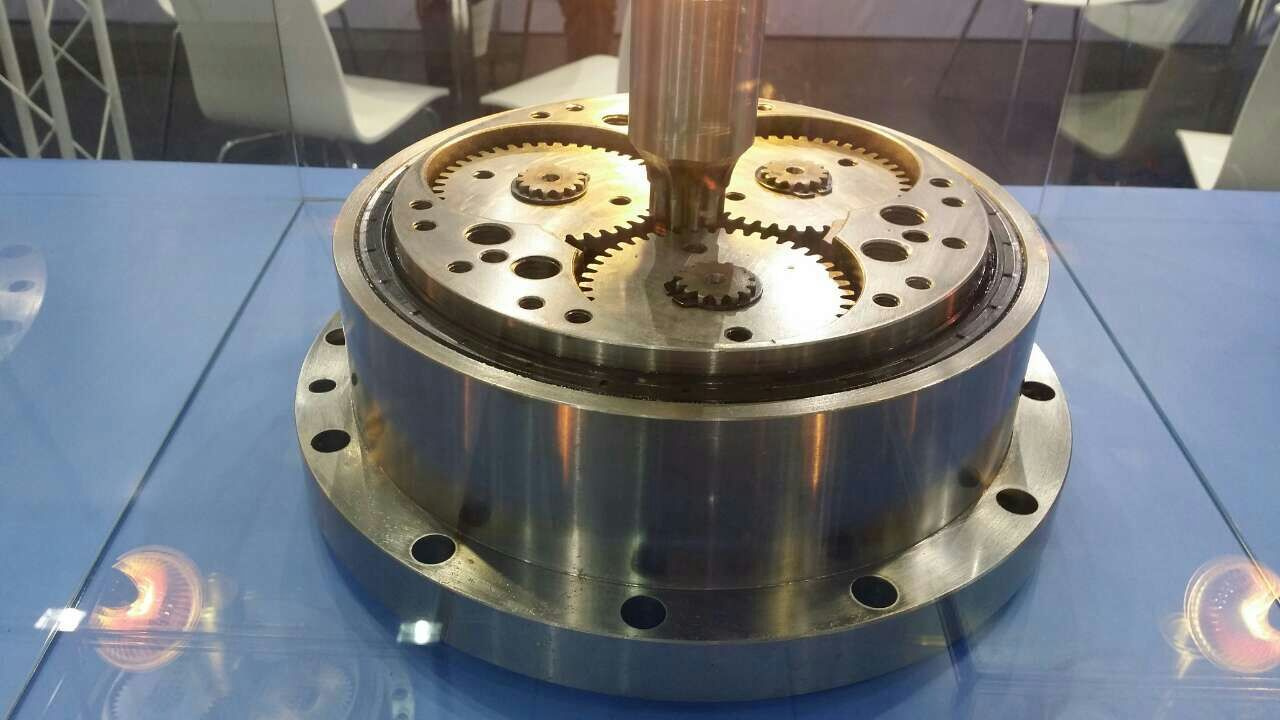

Robotic RV Reduction Gear

Name: Robotic RV Reduction Gear
Brand: china-manufacturer-directory.com
SKU: 769987135
Availability: InStock
Rating: 4.9 (51 reviews)

Supplier:	Wuhan Jinghua Speed Reducer Manufacturing Co., Ltd.
Price:	US $ 500-2000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,FCA

Product Specifications

Prod Model:	RV-20E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance:	High Precision and Durable
RV Series:	E Series
Backlash:	1-3 Arc -Min
Efficiency At Transmission:	80-90%
Lifetime:	5000 Hours Under Rated Power
Mounting Position:	Horizontal Mounted,Vertical Mounted
Manufacturing Method:	Cut Gear
Toothed Portion Shape:	Curved Gear
Type:	Circular Gear

Product Description

	Robot RV Reducer Specifications for JHRV-C Series,JHRV-E Series
JHRV-C Series	Output speed (r/min)			5		10		15		20		25		30		40		50		60		Bending torque rigidity representation value	permissible Bending torque	The maximum permissible torque momently	permissible highest output speed	Start, stop permissible torque	The maximum permissible torque momently	idling	Spring constant representation value	inertia bending Torque(I=GD2/4)Reducer monomer	inertia bending Torque(I=GD2/4)Center of standard gear	Weight Reducer monomer
	Model		Speed ratio of a discrete reduction gear (R1)	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity
				Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm/arc.min.(kgf-m/arc.min)	Nm (kgf-m)	Nm (kgf-m)	r/min	Nm (kgf-m)	Nm (kgf-m)	MAX arc.min	Nm/arc.min.(kgf-m/arc.min)	kg-	kg-	Kgs
	JHRV-10C		28.5	136 (13.9)	0.09	111 (11.3)	0.16	98 (10)	0.21	90 (9.17)	0.25	84 (8.58)	0.29	80 (8.12)	0.34	73 (7.45)	0.41	68 (6.97)	0.47	65 (6.6)	0.54	421 (43)	686 (70)	1372 (140)	80	245 (25)	490 (50)	1	47 (4.8)	1.34 x 10^-5	0.678 x 10^-3	4.6
	JHRV-27C		35.38	368 (37.5)	0.26	299 (30.5)	0.42	265 (27)	0.55	243 (24.8)	0.68	227 (23.2)	0.79	215 (21.9)	0.90	197 (20.1)	1.10	184 (18.8)	1.29	174 (17.8)	1.46	1068 (109)	980 (100)	1960 (200)	60	662 (67.5)	1323 (135)	1	147 (15)	0.628 x 10^-4	0.563 x 10^-3	8.5
	JHRV-50C		33.46	681 (69.5)	0.48	554 (56.5)	0.77	490 (50)	1.03	450 (45.9)	1.26	420 (42.9)	1.47	398 (40.6)	1.67	366 (37.3)	2.04	341 (34.8)	2.38			1960 (200)	1764 (180)	3528 (360)	50	1225 (125)	Bolt Fastening 2450(250) Hole bolt Fastening 1960(200)	1	255 (26)	1.82 x 10^-4	0.363 x 10^-2	14.6
	JHRV-100C		36	1661 (169)	1.16	1353 (138)	1.89	1198 (120)	2.51	1078 (110)	3.01	968 (100)	3.38	930 (95)	3.90	877 (90)	4.90					4219 (430)	3675 (370)	7350 (750)	35	2940 (300)	Bolt Fastening 7350(730) Hole bolt Fastening 5650(560)	1	760 (76)	0.57x 10^-3	1.19x 10^-2	23.5
	JHRV-200C		37.28	2724 (278)	1.9	2215 (226)	3.09	1961 (200)	4.11	1803 (184)	5.04	1686 (172)	5.88	1597 (163)	6.69							9800 (1000)	8820 (900)	17640 (1800)	30	4900 (500)	Bolt Fastening 2450(250) Hole bolt Fastening 1960(200)	1	980 (100)	0.995x 10^-3	1.94x 10^-2	55.6
	JHRV-320C		35.61	4361 (445)	3.04	3538 (361)	4.94	3136 (320)	6.57	2881 (294)	8.05	2690 (275)	9.41									12740 (1300)	20580 (2100)	39200 (4000)	25	7840 (800)	15680 (1600)	1	1960 (200)	0.68 x 10^-2	0.405x 10^-1	79.5
	JHRV-500C		38.59	6811 (695)	4.75	5537 (56.5)	7.73	4900 (500)	10.26	4498 (459)	1256											24500 (2500)	34300 (3500)	78400 (8000)	20	12250 (1250)	24500 (2500)	1	3430 (350)	0.98x 10^-2		154



JHRV-E Series	Output speed (r/min)			5		10		15		20		25		30		40		50		60		Bending torque rigidity representation value	permissible Bending torque	The maximum permissible torque momently	permissible highest output speed	Start, stop permissible torque	The maximum permissible torque momently	idling	Spring constant representation value	Tooth Width	inertia bending Torque(I=GD²/4)Reducer monomer	Weight Reducer monomer
	Model	Speed Ratio		Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity	Output torque	Input capacity
		Shaft Rotation(R)	Shell Rotation	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm (kgf-m)	kW	Nm/arc.min.(kgf-m/arc.min)	Nm (kgf-m)	Nm (kgf-m)	r/min	Nm (kgf-m)	Nm (kgf-m)	MAX arc.min	Nm/arc.min.(kgf-m/arc.min)	Mm	kg-	Kgs
	JHRV-6E	49	48	101 (10.3)	0.07	81 (8.34)	0.11	72 (7.39)	0.15	66 (6.78)	0.19	62 (6.34)	0.22	58 (6.00)	0.25	54 (5.50)	0.3	50(5.15)	0.35	47 (4.87)	0.4	117 (12)	196 (20)	392 (40)	100	117 (12)	294 (30)	1.5	20 (2)	6	3.75x10^-6	2.5
		58.78	57.78																												2.60x10^-6
		71	70																												1.84x10^-6
		86.71	85.71																												1.63x10^-6
		107.69	106.69																												1.09x10^-6
																															0.79x10^-6
	JHRV-20E	69	68	231 (23.6)	0.16	188 (19.2)	0.26	167 (17)	0.35	15.3 (15.6)	0.43	143 (14.6)	0.5	135 (13.6)	0.57	124 (12.7)	0.7	115(11.8)	0.81	110(11.2)	0.92	372 (38)	882 (90)	1764 (180)	75	412 (42)	833 (85)	1	49 (5)	8	1.08x10^-5	4.7
		81	80																												0.65x10^-5
		96	95																												0.45x10^-5
		115.78	114.78																												0.37x10^-5
		141	140																												0.29x10^-5
		177	176																												0.24x10^-5
	JHRV-40E	69	68	572 (58.4)	0.4	165 (47.4)	0.65	412 (42.0)	0.86	377 (38.5)	1.05	353 (36.0)	1.23	334 (34.1)	1.4	307 (31.3)	1.71	287(29.3)	2	271(27.7)	2.27	931 (95)	1666 (170)	3332 (340)	70	1029 (105)	2058 (210)	1	108 (11)	10	3.75x10^-5	9.3
		80.2	79.2																												2.40x10^-5
		93.89	92.89																												1.72x10^-5
		111	110																												1.43x10^-5
		133	132																												1.03x10^-5
		163	162
	JHRV-80E	59.67	58.67	1088 (111)	0.07	885 (90.3)	1.24	784 (80.0)	1.64	719 (73.4)	2.01	672 (68.6)	2.35	637 (65.0)	2.67	584(59.6)	3.26	546(55.7)	3.81	517(52.8)	4.33	1176 (120)	Bolt Fastening 2156(220) Pin gear 1735(177)	Bolt Fastening 4312(440) Pin gear 2156(220)	70	1950 (200)	Bolt Fastening 3920(400) Pin gear 3185(325)	1	196 (20)	10	8.28x10^-5	Bolt Fastening 13.1 Pin gear 12.7
		80.2	79.2																												6.65x10^-5
		111	110																												4.40x10^-5
		133	132																												3.53x10^-5
		162.33	161.33																												2.63x10^-5

	JHRV-110E	75.8	74.8	1499 (153)	1.05	1215 (124)	1.7	1078(110)	2.26	990(101)	2.76	925 (94.4)	3.23	875 (89.3)	0.07	804(82.0)	4.49					1470 (150)	2940 (300)	5800 (600)	50	2695 (275)	5390 (550)	1	294 (30)	13	1.08x10^-4	17.4
		89	88																												0.73x10^-4
		105.5	104.5																												0.45x10^-4
		126.71	125.71																												0.40x10^-4
		155	154
		195	194
	JHRV-160E	76.5	75.5	2176 (222)	1.52	1774 (181)	2.48	1568(160)	3.28	1441(147)	4.02	1343 (137)	4.69	1274 (130)	5.34							2940 (300)	3920 (400)	Bolt Fastening 7840(800) Pin gear 6762(690)	45	3920(400)	Bolt Fastening 7840(800) Pin gear 6615(675)	1	392 (40)	15	1.96x10^-4	26.4
		91	90																												1.51x10^-4
		109.57	108.57																												1.11x10^-4
		134.33	133.33																												0.90x10^-4
		169	168																												0.76x10-⁴
		187	186
	JHRV-320E	*2(85.44)	*2(84.44)	4361 (445)	3.04	3538 (361)	4.94	3136(320)	6.57	2881(294)	8.05	2695(275)	9.41	2548 (260)	10.7							4900 (500)	Bolt Fastening 7056(720) Pin gear 6174(630)	Bolt Fastening 14112(1440) Pin gear 10976(1120)	35	7840(800)	Bolt Fastening 15680(1600) Pin gear 12250(1250)	1	980 (100)	16	5.23x10^-4	26.4
		101	100																												4.00x10^-4
		121	120																												3.28x10^-4
		126.67	125.67																												2.95x10^-4
		2(147.67)	2(146.67)																												2.63x10-⁴
		185	184																												2.01x10-⁴
		194.33	193.33																												1.79x10-4
	JHRV-450E	*2(89.89)	*2(88.89)	6135 (626)	4.28	4978 (508)	6.95	4410(450)	9.24	4047(413)	11.3	3783(386)	13.2									7448(760)	8820(900)	Bolt Fastening 17640(1800) Pin gear 13524(1380)	25	11025(1125)	Bolt Fastening 22050(2250) Pin gear 18620(1900)	1	1176(120)	18	8.93x10^-4	66.4
		106	105																												6.95x10^-4
		126.71	125.71																												5.75x10^-4
		154.33	153.33																												5.18x10^-4
		193	192																												4.08x10-⁴
		201	200																												3.58x10-⁴
																															3.03x10-4

Our Jinghua Robot RV Reducer's quality same with Nabtesco's
Our Jinghua Factory expert at high precision Speed Reducer for 30 years in china, our Robot RV reducer's quality is the best in china.
Siasun Robot Inc, Elfort Robot Inc, Nachi china factory,Comau Robot Inc are our factory customers,our customers are top in the world.
Choose us can let you get more profits and Cost down your costs, I hope we can establish good long-term business relations

RV-E Series Robotic RV reducer:

Robotic RV reducer is a high precision and durable gear reducer adopted the reduction mechanism of planetcentric.

Characteristic:
1. high rigidity and overload
2. compact structure, large transmission ratio, high transmission efficiency
3. Small backlash, rotating vibration and inertia
4. Good acceleration capabilities, operate smoothly and obtain the correct position

Transmission Type:

It is made up of the first level of involve cylindrical gear planetary reduction mechanism and second level of cycloidal pinwheel planetary reduction mechanism

Applications:

1. Industrial robots (welding, stowage, loading)
2. High-end CNC equipment (machine, pipe bending machine)
3. Turntable, displacement machine
4. The printer
5. Radar antenna positioning device
6. Solar power systems
