Product Specifications
| Prod Model: |
PE-800X1060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Type: |
Beneficiation Machinery |
Product Description

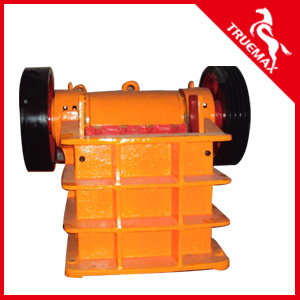

Rock Jaw Crusher
1. Our jaw crusher has features of great crushing ratio, even granularity, easy maintenance and less operating cost etc.
2. Our jaw crusher is widely used in the industries of mining, metallurgy, building material, highway, railway, water conservancy and chemistry etc.
3. Our jaw crusher can crush various material with compressive strength less than 320Mpa.
4. Also called stone jaw crusher, jaw breaker, jaw crushers, stone crusher
|
Technical Specification: |
|
Models |
Max. Feed Size (mm) |
Adjustable Range of Discharge Opening(mm) |
Crushing Capacity(m3/h) |
Electric Motor Power(kW) |
Weight (excluding Motor) (t) |
|
PE-250× 400 |
210 |
20-60 |
3-13 |
15 |
2.8 |
|
PE-250× 500 |
210 |
20-80 |
5.7-31 |
18.5 |
3.25 |
|
PE-400× 600 |
340 |
40-100 |
10-34 |
30 |
6.5 |
|
PE-500× 750 |
425 |
50-100 |
28.5-62.5 |
55 |
10.3 |
|
PE-600× 900 |
500 |
65-160 |
30-75 |
55 |
15.5 |
|
PE-750× 1060 |
630 |
80-140 |
72-130 |
110 |
28 |
|
PE-800× 1060 |
640 |
100-200 |
85-143 |
110 |
30 |
|
PE-870× 1060 |
660 |
200-260 |
181-210 |
110 |
30.5 |
|
PE-900× 1200 |
750 |
95-165 |
87-164 |
110 |
50 |
|
PE-1000× 1200 |
850 |
195-265 |
197-214 |
110 |
51 |
|
PE-1200× 1500 |
1020 |
150-300 |
250-500 |
160 |
100.9 |
|
PEV-600× 900 |
500 |
70-130 |
53-106 |
75 |
13 |
|
PEV-750× 1060 |
650 |
80-140 |
72-140 |
110 |
24.2 |
|
PEX-150× 750 |
120 |
18-48 |
5-16 |
15 |
3.5 |
|
PEX-250× 750 |
210 |
25-60 |
8-22 |
22 |
4.9 |
|
PEX-250× 1000 |
210 |
25-60 |
10-32 |
30 |
6.5 |
|
PEX-250× 1200 |
210 |
25-60 |
13-38 |
37 |
7.7 |
|
PEX-300× 1300 |
250 |
20-90 |
10-65 |
75 |
11 |
