Product Specifications
Prod Model: |
Pioneer-RW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Pioneer |
Style: |
Full Automatic and Continuous |
Usage: |
Produce Wall, Roof, Door, Cold Room Panel |
Length Of Double Belt Machine: |
18-36m |
Core Material: |
PU, EPS, Rockwool, Phenolic Aldehyde |
Controlling System: |
PLC |
Power Supply: |
380V/50Hz/3 Phase( or Customized) |
Color: |
Customized |
Type: |
Insulated Building Material Making Machine |
Certification: |
ISO9001: 2000, CE |
Product Description

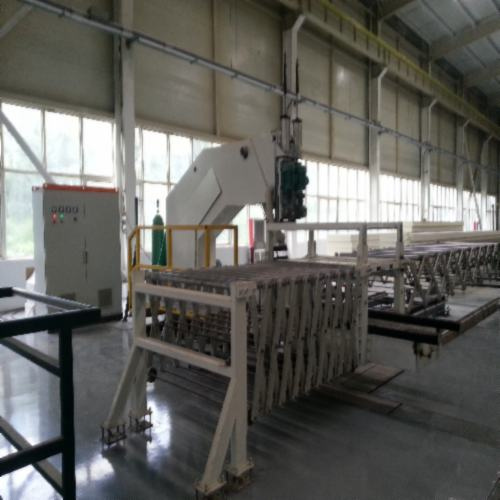

Rock wool sandwich panel making machine
Pioneer is a professional manufacturer of machine for insulated sandwich panel, it also owned
More than 16 years of sandwich panel production production experience. So pioneer is more
Understand the sandwich panel processing crafts, so not only provide u with the advanced sandwich
Panel production line, but also the set of sandwich panel production crafts and the superior sales-after
Service. We will sent our experienced engineer to ur factory to teach ur works to operate the machine.
1. Brief introduction:
Rockwool sandwich panel production line could make the EPS core and Rockwool sandwich panel. This
Sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof
And wall sandwich panel with core of polystyrene foam and rockwool material. Due to its simple
Operation, this forming machine is widely used in the construction of steel structure enclosures,
Warehouse, workshop, cold storages, and mobile buildings. In order to satisfy various customer
Requirements, we design and manufacture rockwool sandwich panel lines in different specs, models
And configurations.
2. Application:
Making both roof and wall sandwich panel with core of polystyrene foam and rockwool material. Due to its
Simple operation, this forming machine is widely used in the construction of steel structure enclosures,
Warehouse, workshop, cold storages, and mobile buildings. In order to satisfy various customer
Requirements
3. Components of rock wool sandwich panel making machine
1. Decoiler
2. Film covering machine
3. Roll forming mahcine
4. Heating system
5. Rockwool system
6. Double belt conveying machine
7. Flying cutter
8. Sandwich panel cooling machine
9. Automatic stacker
10. Auto packing machine
4. Features
1. The decoiler is with hydraulic feeding car, the bearing capcacity is 5T, 7.5T, 10T.
2. There will add the film covering machine to protect the panel surface from scratch.
3. We could design the roll forming machine according to ur panels drawings, and the line could
Produce the different shape and usage sandwich panel, such as the wall panel, roof pamel,
Garage door panel. The material of rollers are with superior material and processing to
Ensure the quality.
4. The width of finished panel could be adjusted from 435mm to 1150mm.
5. The length of double belt machine is 18-36M, it is according to ut requirement for the producing
Speed of whole line. The adjustable thickness could up to 200mm.
6. Auto tracking cuting is with band saw and circular saw, so that the interface of roof panel also could
Be cutting. The cutting length is according to ur request.
7. The stacker also could stacking the roof panel that with corrugated by overturning the panels.
8. There will be setted with cushion blocks inserting device to make the carrying of forklift.
Size of roll forming machine |
45000*3000*2800mm |
Suitable feeding width |
1000mm/1200mm |
Main motor power |
32KW |
Working speed |
0-4.5m/min |
Controlling system |
PLC |
Thickness of steel plate |
0.3-0.8mm |
Power source |
AC380V/50-60HX |
Bearing capacity of decoiler |
5T/7.5T/10T |
Number of forming rollers |
13rows according to customers' panel shape |
Out diameter of shaft |
70 mm |
Big frame |
300 channel steel |
composite mainframe |
Squar Steel tube 80*160 Glue shaft: 150 19roots |
Shanghai Pioneer Precision Machinery Co., Ltd focuses on sandwich panel production line and roll forming machine research, manufacturing and sales. With international advanced design software, experienced engineer and first-class production and processing equipments, we offer customers all of our best service to meet together any individual production requirement.
Based on more than ten years production experience of sandwich panel and cold roll forming profile, PIONEER have developed and produced new-type of sandwich panel production line and cold roll forming machine. With Usage of several patents and high-quality components, the whole production line features full-automation control, high efficiency, maintenance free and long service life.
Experienced in production of sandwich panel and cold roll forming profile, Pioneer will not only manufacture high-quality production line but also offer its service (installation, debugging and training) and a whole set of production technology. Meanwhile, we could guarantee the production line will under operation within the Minimum raw material and time.
Pioneer adheres to the philosophy of double win and quality live, will devote itself to develop and manufacture the professional full automatic equipment to boost the intelligentized manufacturing.
