The E5302 Rod Pump Controller is an intelligent controller developed by ECHO Technologies for the needs of oil and gas production. It is a combination of oil exploration, automation, communication, and computer technologies. It features well data acquisition, dynamometer graph, well condition analysis, and remote pump controlling. The E5302 RPC is a highly reliable controller and easy to use.
The E5302 supports various communication methods. It can be used as an unattended rod pump control system, monitoring well condition, improving production efficiency, providing reliable operation, and saving cost.

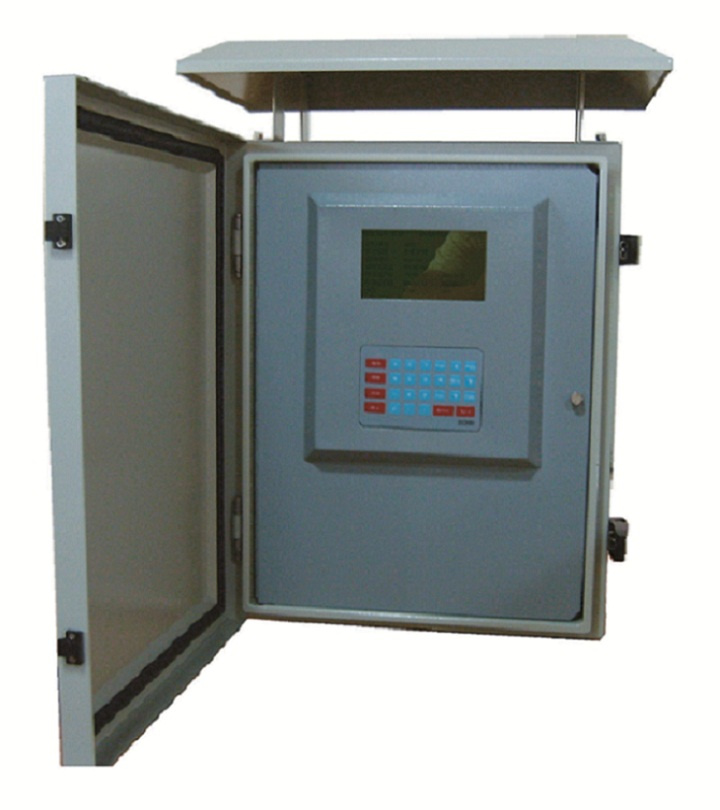

The E5302 is comprised of a controller and protection cabinet which is specifically designed for rain, sun and dust proof. With combinations of rod load sensor, rod position sensor and other instruments, the E5302 provides comprehensive information including dynamometer graph, pressure, temperature, motor voltage and motor current. The E5302 also provides wireless communication port for working with wireless field instruments to save cabling cost. The E5302 can work as independent local controller or act as a remote substation for a SCADA system.

Features
1. Monitor rod pump operation and periodically collect dynamometer, pressure, temperature and fluid level data.
2. An advanced algorithm used to control the rod pump operating at the optimized condition to improve energy efficiency.
3. Open IEC1131-3 programming environment for users to develop their specific application.
4. With an embedded RF module, the E5302 can communicate with wireless dynamometer sensor, wireless pressure transmitter, wireless temperature transmitter to build up a cost-effective wireless data acquisition system.
5. Provide three serial communication ports and one Ethernet port. It can be connected to many communication devices including AP, Radio, and GPRS DTU.
6. Support industrial standard Modbus RTU and E4100 protocols.
7. Remote controlled by central computer system.
8. Can be configured on-site by using a handheld field communicator. It can also be configured remotely by host computer.
9. Is specifically designed for harsh environment applications. The operating temperature is from -40º C to 70º C.
10. All power, communication ports and signal terminals are protected and insulated from main control circuit.

Processor	32-bit CPU, 32MHz. Embedded Watchdog and RTC
RS232 Communication
Channel	2
Connector	DB-9P
Baud Rate	2400, 4800, 9600, 19200, 38400, 57600
Parity	None, Odd or Even
Data Bit	7 or 8 Bits
Stop Bit	1 or 2 Bits
Duplex	Half or Full with RTS/CTS handshake
Cable Length	Max 15.2 meter
Protocols	MODBUS RTU, MODBUS ASCII, User Define
Communication Mode	Slave, Master
RS485 Communication
Channel	1
Connector	Terminal block
Baud Rate	2400, 4800, 9600, 19200, 38400, 57600
Parity	None, Odd or Even
Data Bit	7 or 8 Bits
Stop Bit	1 or 2 Bits
Duplex	Half or Full with RTS/CTS handshake
Cable Length	Max 1200 meter
Protocols	MODBUS RTU, MODBUS ASCII, User Define
Communication Mode	Slave, Master
Ethernet Communication
Connector	RJ45
Data Rate	10 M Bases T
Protocols	Modbus TCP , Modbus in TCP, Modbus in UDP
Communication Mode	Slave
Analog Inputs
Channel	8
Input range	4~20mA
Input Impedance	169Ω
Resolution	16-bit
Converter type	Successive Approximation
Accuracy	±0.1% of full scale at 25º ±0.5% of full scale over temperature range
Digital Inputs
Channel	8
Input range	8~30VDC
Standard input current	5mA@12VDC, 12mA@24VDC
Digital Outputs
Channel	4
Output Type	Relay
Output Rate	24V 8A /220VAC 12A
3-Phase Power Measurement
Input voltage range	0~220V
Input current range	0~5A
Communication	1RS485/RS232
Output data	3-phase voltage, 3-phase current, active power, reactive power, power factor
Display	LCD with 320*240 resolution
Keypad	32 keys
Environment
Operating temperature	-40ºC~+70º,
Operating humidity	5~95%RH(non-condensing)
Power Supply	220V 50Hz

Business Areas

Beijing ECHO Technologies Co., Ltd. (hereinafter to be referred to as 'ECHO') is a professional manufacturer of leading-edge yet highly cost-effective RTU products in China. It has been delivering industrial automation products and solutions for a broad range of industries such as oil and gas, water and wastewater, utilities, and environment protection sectors for over 15 years. ECHO also engineers hardware, software and firmware for OEM/ODM applications, from modifications of existing products to customer designed systems. Working with a network of certified distributors and partners, ECHO offers world-class industrial RTU products to system integrators and value-added resellers all over the world. Clients place great trust in ECHO's products and solutions, which are backed by ISO9001 and ISO14001 certification.

Product Features

1. High performance 32-bit CPU with embedded real-time operating system (RTOS)

2. Extensive communication ports and protocols such as Modbus RTU/ASCII/TCP, DNP3

3. Open programming environment, supporting all IEC61131-3 languages including LD, FBD, IL, ST and SFC

4. Built-in watchdog timer, helping to protect your application from erroneous outputs

5. All the terminal blocks are isolated from the main control circuit

6. Low power consumption design, ideally for solar-powered installations

7. Wide operating temperature range, well suited for harsh environment applications: -40º C~+70º C

8. Industry-standard design, using DIN rail for mounting, easy to install on-site

9. I/O points expandable, economical and easy for use

Applications and Solutions

Remote Terminal Unit (RTU) is the basic unit of Supervisory Control and Data Acquisition (SCADA) system. By acquiring the data on site, SCADA system can monitor and control the production system with its production units remotely and dispersedly distributed. Composed of several to hundreds of I/O points, RTU can be installed near the measuring site to monitor and control the field signals and industrial equipments. RTU has two basic functions: Data acquisition and processing, data transmission. However, most RTUs have many more advanced functions such as PID control, logic control and flow accumulation, computing etc.

Based on its features and functions, ECHO's RTU can be used in any kind of automation and control systems, such as SCADA, DCS, or FGS. In many industries listed but not limited as below. With years of industry expertise, ECHO can provide you total solutions to all your needs.

1. Oil and gas well heads monitoring and control

2. Oil and gas pipeline supervision, metering and control

3. Natural gas and heating distribution

4. Water and wastewater treatment plants

5. Street lights monitoring and control

6. Environment protection

7. Other systems or device where temperature, pressure, flow etc. Need to be supervised and controlled
