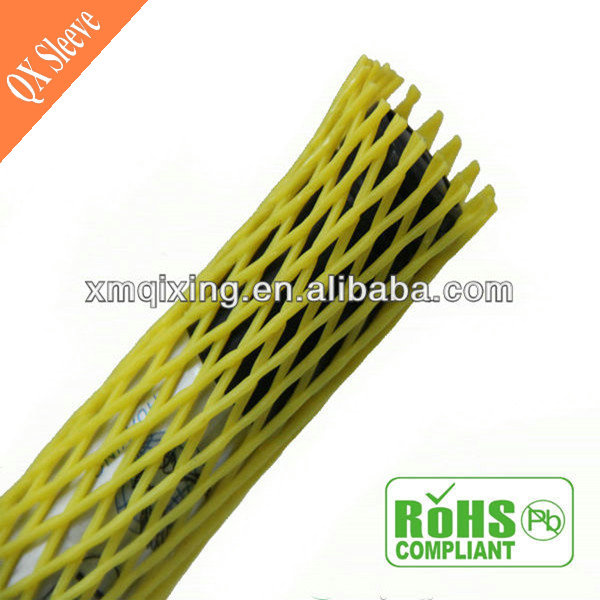

RoHS Expandable Protective PE Flexible Plastic Net

Product Specifications

Prod Model:	CFC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	10mm-235mm
Material Type:	Polyethylene or Polypropilene (PE or PP)
Standard Color:	Transparent ,White
Item:	RoHS PE Flexible Plastic Net
Operating Range:	-20c to +85c
Feature:	Expanded 2-5 Times Than The Natural Size
Certificate:	RoHS
Style:	Flexible Plastic Protection Net
Application:	Switch Baseplate
Type:	Insulation Sleeve
Chemistry:	Organic Insulation
Material:	Plastic
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Certification:	RoHS
Color:	Blue
Brand:	Qx

Product Description

ROHS Expandable Protective PE Flexible plastic net


Product Description
FPN-PE FPN-PP the flexible plastic net is extruded from PE or PP raw material.It has excellent flexibility and expandability,it can be expanded 2 to 5 times than the natural size.It is widely used for protecting delicate and precision parts away from damage and loss through manufacture,storage and transporting.

Product Features
1.light weight
2.excellent expansibility
3.distortion resistance
4.elaborate surface
5.precut avaliable
6.anti acid,alkali and other chemical resistance


Technical data:
1. Material:                   PP,PE
2. Operating range:      -20°C-+85°C
3. Certificate:                RoHS
4. Standard color:       transparent, white

Application
Widely used for wine bottle sieeves,cable protection,gas cylinder sleeves,precision parts protection and rose wrap etc.

PE expandable Flexible plastice net

Datasheet:

PE Material      part No	PP Material       part No	Nominal size (W)	Expanded range  (I to O)	Packing (L)
FPN-PE-15	FPN-PP-15	10-15	8-20	100M/Spool
FPN-PE-20	FPN-PP-20	15-20	10-25	100M/Spool
FPN-PE-25	FPN-PP-25	20-25	15-30	100M/Spool
FPN-PE-30	FPN-PP-30	25-30	20-35	100M/Spool
FPN-PE-35	FPN-PP-35	30-35	20-40	100M/Spool
FPN-PE-40	FPN-PP-40	35-40	30-45	100M/Spool
FPN-PE-45	FPN-PP-45	45-50	30-50	100M/Spool
FPN-PE-50	FPN-PP-50	50-55	35-55	100M/Spool
FPN-PE-55	FPN-PP-55	55-60	40-60	100M/Spool

                                                                                                                                                           Uint:mm

Notes:
1.Nominal size indicates the flat width.

2.The part No. will be followed by BK,YL,GN,RD and so on to indicate the color of product.

3.Special package,sizes and colors can be supplied upon request.

4.All numeric date shows average or typical values, not including customized sizes.


After-sale service:
 1.free reason for return within 7 days after received the goods.

2.product use gundance.

3.product quality tracking.

4.terrfic after-sales service:24 hours*365 days.

PE Flexible Netting


Offer Extra Service:
1. Cutting to the length you need
2. Free sample

PE Flexible plastic protection net

Trade Condition

Trade terms: FOB,CIF,EXW,CFR

Payment trems: T/T,L/C,Western Unnion,Paypal,Escrow,MoneyGram

Leadtime: 7-10 days

Sample time: 3-5 days

Package: Export carton or according to your requirements

Shipping: By sea,by air or by express
