| Price: | US $ 0.05-1/Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500/Meter |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Introduction:
RoHS Plastic split Flexible corrugated electrical conduit pipes offers you wide range technical properties for your cable and wire management applications against not only mechnical damage but also the influnces of UV radiation,weathering and chemicals.
The flexible body allows for the cables in the corner and elbow.We also supply the split style for easy installation and removal .
Product Feature:
a. Highly abrasion resistance
b. Resist acids
c. Solvents and fuels resistant
d. Resistant to UL radiation
e. Insulative and protective, Against mechanical damage
f. Flexibility, Light weight
g. Easy to install and remove
h. Split style & Not split style
Technical Data:
1. Material: PE/PP/PA
2. Operating range: PE: -40ºC to +90ºC
PA: -40ºC to +130ºC
PP: -30ºC to +110ºC
3. Standard color: Black and Grey
4. Certification: ROHS
Application:
a. Protecting wires and cables harness in automotive, equipment, railway etc.
b. Used for protecting the hydraulic hoses.
c. Used in the fields of electrics communication, automobile for connection insulation and rust-proof of metal product.

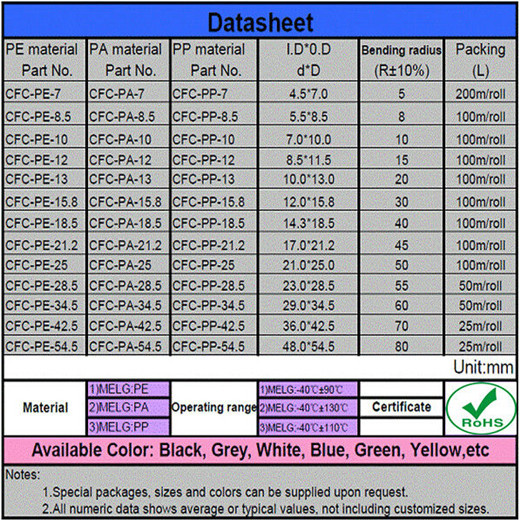

Detail Pictures:
| Prod Model: | CFC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: | Flexible Plastic Split Wire Loom Tubing |
| Available Size: | 4.5mm ID to 48mm ID |
| Standard Color: | Black |
| Free Sample: | Yes |
| Cittomg Servoce: | Yes |
| Available Colors: | Black, White, Blue, Red,etc |
| Shipping Way: | by Sea,Air, Express |
| Package: | 200m/100m/50m/25m Per Roll |
| Application: | Cable, Wires, Automatic Equiqment,etc |
| Type: | Insulation Sleeve |
| Chemistry: | Organic Insulation |
| Material: | Plastic |
| Thermal Rating: | E 120 |
| Maximum Voltage: | <10KV |
| Brand: | Qx |
| Certification: | RoHS |
| Color: | Black, Colored |
