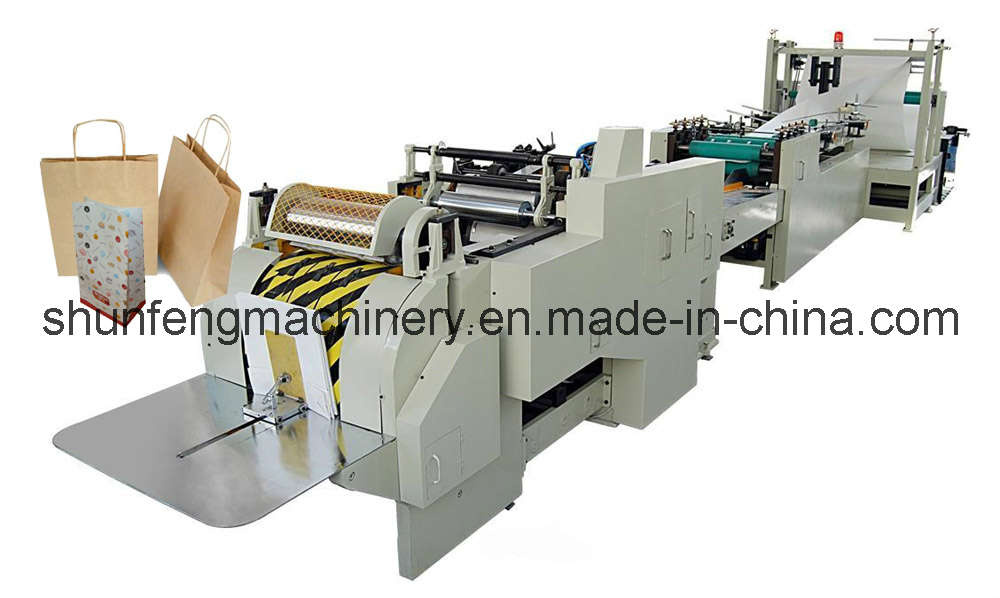

Roll Feeding Square Bottom Paper Bag Making Machine
Introduction:
We successfully developed the square bottom type of paper bag making machine with roll paper or printed roll paper. This machine features a continuous function of automatic paper suction, gluing, creasing, bottom sticking and bag formation at a stroke. The machine has automatic force controlling machine and the fuction of color marking tracking. All the operation procedures are controlled by PLC, saving Label force. This is an ideal equipment for making paper bag for shopping, loading foods and so on.
|
Type |
SF-330 |
|
Paper Roll Width |
550mm -980mm |
|
Paper Thickness |
70-140g |
|
Bag Width |
150-330mm |
|
Bag Length |
250-450mm |
|
Bottom Size |
80-150mm |
|
Speed |
40-80bags/min |
|
Total Power |
12Kw |
|
Weight of Machine |
8000kg |
|
Overall Dimension(LxWxH) |
11000mm× 1500mm× 1700mm |
Ruian Shunfeng Packaging Machinery Company was founded in 1995, located in Zhejiang Ruian city. On the base of plastic packaging machines of China. It has a long historical standing and a large scale and specializing in plastic packaging machines and equipments.
We are engaged in manufacturing Complete sets of plastic packaging machines and equipments such as Film Blowing Machine, Co-extrusion Film Blowing Machine; Rotogravure Printing Machine or Flexographic Printing Machine; Bag-making Machine, Non Woven Bag Making Machine; Paper Bag Making Machine; Recycle Machine; Laminating Machine; Slitting and Rewinding Machine; Air Bubble Film Machine; Stretching Cling Film Machine, Laminating and Coating Machine, Label Printing Machine; Self-adhesive Label Die Cutting and Slitting Machine. Our products sell well at home and widely exported to lots of countries and regions. And they are favoured by domestic and oversea customers all along.
The products in our factory has passed ISO9001 certification and CE Certification. And Shunfeng enterprise has been awarded the honor of high-new technology enterprise, administrati- on example enterprise.
In the ten years, based on the enterprise theory of "Seeking existence through quality, seeking market through honesty and development through technology. " We pay attention to customers' needs, reinforce product research and development and perfect after-sale service. We insist on "Shunfeng can not develop without customers' success. "
We sincerely welcome the guests from home and abroad to visit for creating a brilliant future together.
