Roll Stand for Paper Low Price High Quality (MJRS-1)
| Price: |
US $ 11600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |

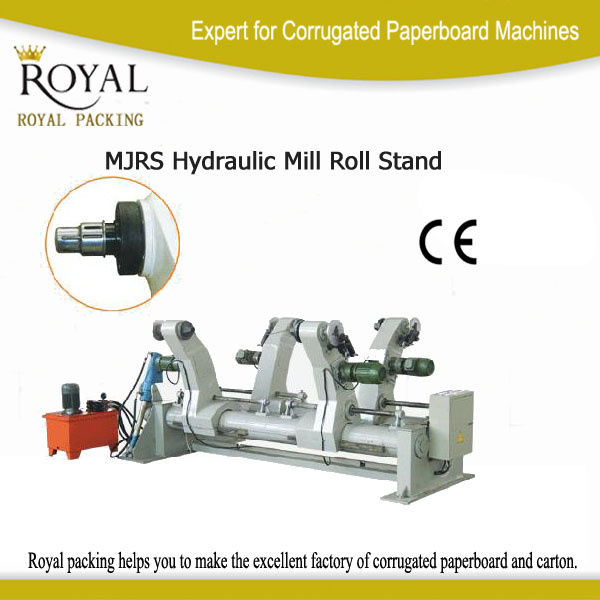

Hydraulic shaft-less mill roll stand
Main technical paragram:
| Note | Name | Technical parameters |
| 1 | Effective working width | 2000mm |
| 2 | Mill roll stand action mode | Full hydraulic action |
| 3 | Paper diameter | Max:1500mm Min:350mm |
| 4 | Single side maximum load | Max :3000kg |
| 5 | Main shaft diameter | Φ240mm |
| 6 | Hydraulic cylinder operating range (swing) | Φ100mm×460mm |
| 7 | Hydraulic cylinder diameter (clamping) | Φ63mm×720mm |
| 8 | Hydraulic station motor power | 5.5kw |
Structure features:
1. Symmetric structure ,it can support two roll paper at the same time ,can change paper roller with non-stop machine.
2. Hydraulic control for paper mill roller up-dowm, clamp-open and centring.
3. Multi-point brake which is imports Italy and bulge head, reduce paper waste.
Main outsourcing parts, raw materials and origin:
1. Rotary shaft: high quality thick-walled seamless steel Origin: Chengdu
2. Wallboard of two side and arms: HT200 casting Origin: Hebei
3. Connecting channel: 280mm Origin: Angang
4. Bearing: HRB, famous brand in China
5. Electric components: Zhejiang CHINT brand
6. Pneumatic components: AirTAC , Zaozhuang Origin: Taiwan, Shandong
7. Hydraulic part: North Hydraulic Group (Huade) Location: Beijing, Shandong
| Prod Model: |
MJRS-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Axis Dia.: |
240mm |
| Maximum Support Weight: |
3t. |
| Maximum Working Width: |
2000mm |
| Mill Roll Stand Action Mode: |
Full Hydraulic Action |
| Paper Diameter: |
Max:1500mm Min:350mm |
| Hydraulic Cylinder Operating Range (Swin: |
100mm×460mm |
| Hydraulic Cylinder Diameter: |
63mm×720mm |
| Hydraulic Station Motor Power: |
5.5kw |
| Type: |
Carton Packaging Machinery |
| Automatic Grade: |
Automatic |
ROYAL is mainly engaged in the R and D, Design, Produce and Trade of Corrugated Paperboard production machinery and Carton Machinery, Pharmaceutical Equipment, API & Intermediate, Custom Synthesis. We are located in Hangzhou city, Zhejiang Province. Neighboring Shanghai port, Ningbo port, Hangzhou Xiaoshan Int'l Airport and Shanghai Pudong Int'l Airport, our office is 700m from the biggest fast train station in Asia (Hangzhou Dong Station), the transportation and environment are excellent!
We are mainly focus on:
1. Corrugated paperboard machinery, Packing Machinery, Single Facer line, Flexo printing machine, folder gluer, Stitcher, Laminating machine, Rotary Die-cutting machine, Flat Die-cutting machine, Slitting and rewinding machine, Paperboard sheeter, A4 paper production line, and all related spare parts.
2. Pharmaceutical Machinery: Distilled water machine, Reverse Osmosis, Frame filter press, Pure steam Generator, MVR, CIP system, Mixing tank, Mixer machine, Sterilizer, Centrifuge, MEE and so on.
3. API, Pharmaceutical Intermediate, Custom synthesis service.
4. Export agent ---- Specially we have Kunlun bank account for Iran business.
We have two own factory in Hebei Province and Ningbo city, China. We have high quality employee team, we have special engineers, and special operators for export work of machines. We are now cooperated with many special factories who produce good quality machines to fulfill our products library. With good quality products and high efficiency service, and the competitive prices, our products are welcomed by many users. ROYAL is happy to offer the technological service for you all the time.
ROYAL has Import and Export Office in Hangzhou and have established well market channels both domestically and overseas. And we have our Sales branch in Tehran city, Iran, In Amman city, Jordan. ROYAL products are exported to many countries such as USA, Germany, Mexico, Korea, Dominica, Italy, Austrilia, Russia, Iran, Jordan, Sudan, Egypt, Samoa, Vietnam, India, Turkey and so on. Our products are popular in the world market, and enjoy a good reputation from our customers. Based on the Technology, Developed by Innovation, joining hands with friends, ROYAL highly welcomes friends from all over the world to cooperate with us, and share our development and progress together.
ROYAL ---- Your Best Partner In China!
