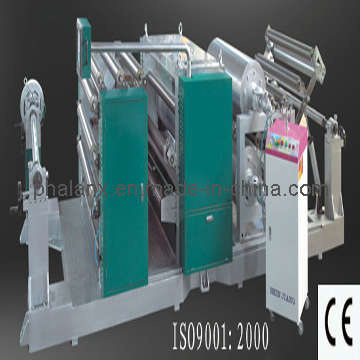

Roll to Roll Paper Embossing Machine (YWJ-B)

Name: Roll to Roll Paper Embossing Machine (YWJ-B)
Brand: china-manufacturer-directory.com
SKU: 688576175
Availability: InStock
Rating: 4.8 (104 reviews)

Supplier:	Shanghai Phalanx Industrial Corporation., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process:	Finishing Process Machine
Usage:	Packing Paper Machine
Type:	Paper Embossing Machine

Product Description

Our roll to roll embossing machine is the NO. 1 in China with high reputation of good quality. Such machine further extends the application range of printing and packaging equipment, the B type machine is applicable for various surface embossing process on all kinds of paper products (e. G. Compound paper, cards and book covers etc), al-compound materials and leather products and so on, resulting in an aesthetic effect on the surfaces with three-dimensional sense and obtaining delicate printing and packaging products and for decorative purpose, also can embossing watermark invoice paper for security use.
Equipment: Equipped with lift device. It's easy for loading and changing rollers.

Embosser design data
Type of embosser	roll to roll machine
Max operating speed	80m/min
Max diameter of unwind reel	1200 mm or 1500mm
Max width of unwind reel	1000mm or 1500mm
Core inside diameter of unwind roll	3” or 6”
Max diameter of rewind reel	1200mm or 1500mm
Max width of rewind reel	1000mm or 1500mm
Core inside diameter of rewind roll	3” or 6”
Most common wound roll sizes	31”
Net trim after winder	no trim
YWJ-B Type Roll Embossing Machine
Model	YWJ1150B	YWJ1600B
Max Embossing Speed	80m/min	80m/min
Max. Embossing Width	1000mm	1500mm
Paper Range	30-400g/m2	30-400g/m2
Operation Pressure	2-15Mpa	2-15Mpa
Motor Power	5.5kw	11kw
Heating Power	18kw	18kw
Heating Scope	> 100º C	> 100º C
Drying Temperature	≤ 150º C	≤ 150º C
Pneumatic Pressure	1.0Mpa	1.0Mpa

Shanghai Phalanx Industrial Corp. Ltd. is a professional machinery manufacturer and export agent.

We invested several factories and also be the sole export agent of more than 50 factories which can provide below good quality machines:

1. Paper processing machines, such as embossing, dyeing, laminating etc.
2. Book binding and sewing machines
3. Corrugated carton printing and processing machines
4. Pre-printing machines
5. Food packing and water filling machines
6. Plastic processing & packing & printing machines
