Roller Cutting Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

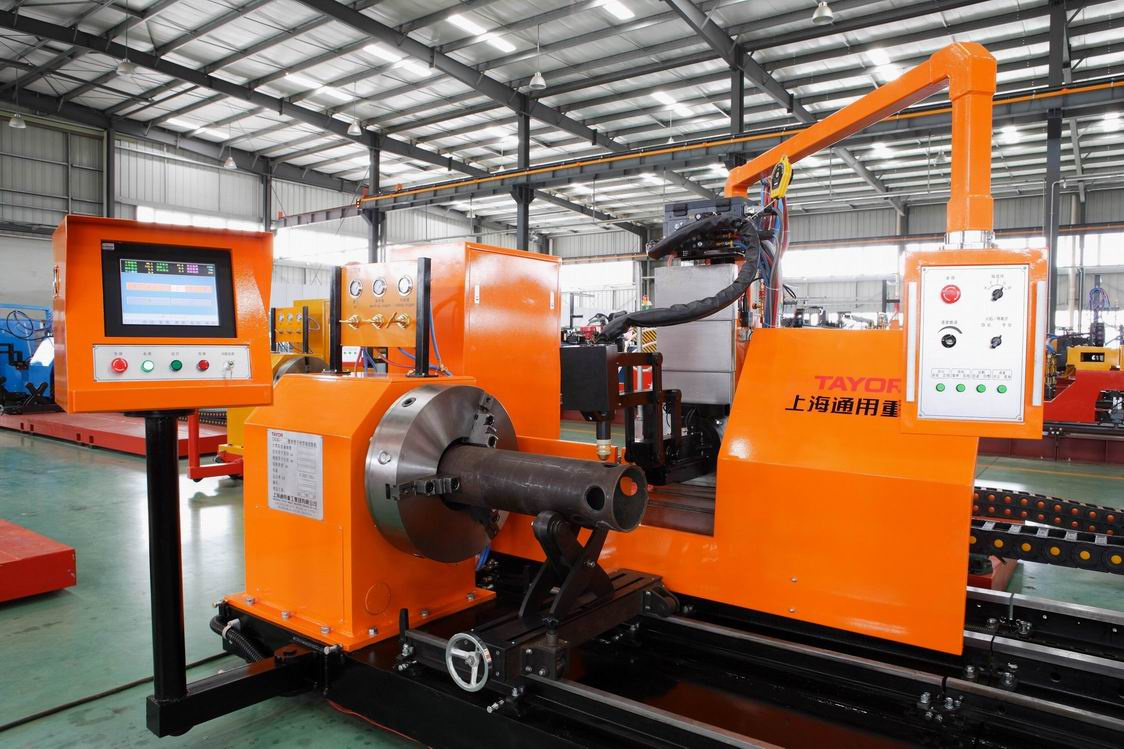

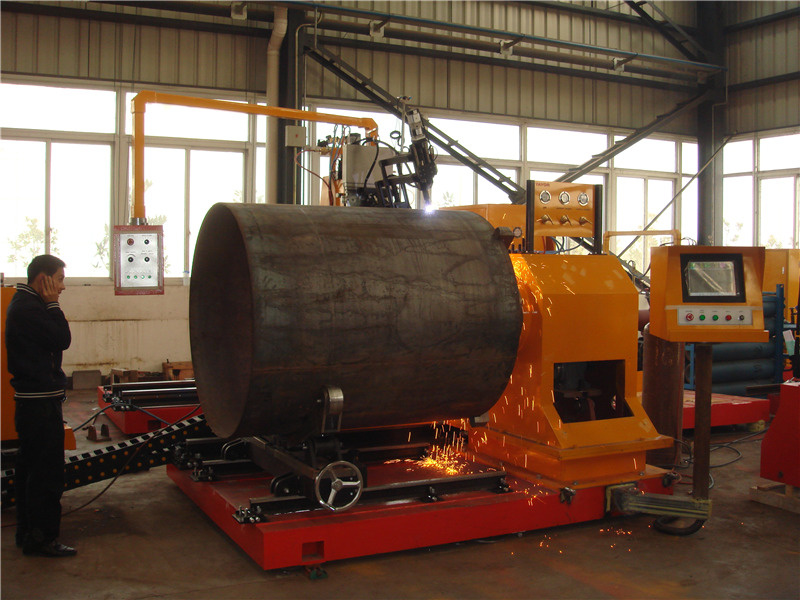

CNC cutting machine, cnc tube cutting, Pipe Waver, CNC steel profile cutting machinery, CNC plasma cutter, CNC pipe cuttingCNC pipe profile cutting machine are user friendly to realize various of cutting shapes and bevel cutting.CNC Pipe profile Cutting Machine is a kind of equipment that can automatically calculate and cut the intersection line hole, intersection line end, elbow (shrimp joint) for various steel pipes and nonferrous metal pipes. This machine is used widely in the cutting of pipeline components in such industries as construction, chemical, ship-building, machinery engineering, metallurgy, electricity etc. In the past, this kind of processing was mainly performed with backward and complicated operation techniques such as prototype making, lineation, manual proofing, manual cutting, manual polishing etc. It is very convenient for CNCXG series of CNC Pipe profile Cutting Machine to process this kind of work without calculation, programming but inputting the pipe radius, intersection angle, etc. for the pipe intersection system, then the machine can automatically cut the intersection line, intersection line hole and welding bevel of the pipe.
|
Cutting Technical Data |
|
Model |
CNCXG |
|
Cutting Pipe Diameter (mm) |
50-630 |
60-800 |
100-1000 |
200-1250 |
|
Pipe length(mm) |
2000-12000 |
|
Cutting Thickness(mm) |
Plasma:1-25mm |
|
Plasma max beveling angle |
≤45° |
|
Flame max beveling angle |
≤60° |
|
Basic components |
|
|
Pipe Chuck |
3 jaws concentric chuck |
|
Cutting Mode |
Plasma |
|
Number of Control Axes |
2\3\4\5\6 |
|
Driving Motor |
Panasonic |
|
NC Controller |
Advantech |
|
Plasma Power |
Thermadyne, Kjellberg, Hypertherm, ESAB |
|
Other Specifications |
|
Working temperature |
- 10°C -45°C |
|
Humidity |
<90%, no condensation |
|
Surroundings |
Ventilation, no big shake |
|
Power voltage |
3×380V±10% or up by user's local condition |
|
Operation language |
English or Chinese |
|
Options |
|
Option Item |
Heating and cooling systems, |
|
Programming software |
|
integration dust extraction |
| Prod Model: |
CNCXG800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Steel Plate Or Pipe: |
CNC Steel Plate Cutting |
| Suitable Material: |
Stainless Steel, Mild Steel |
| Cutting Function: |
CNC Beveling Cutting Machine |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
| Type For Fold-bending Machine: |
Steel Cutting Machine |
