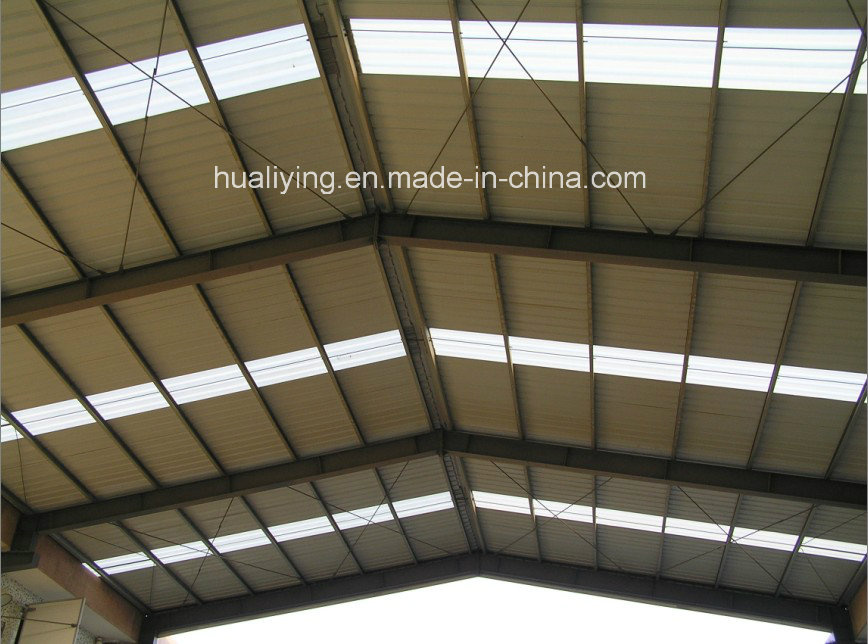

Roofing Structure for Workshop/Warehouse

We are engaged in design, manufacturing, fabrication and after-sale services to meet different oversea customer's requriements. We have been exporting our steel structure to New Zealand, Australia, North America, Indonisia, MID-East and Western Europe etc.

Decription:
Corrosion resistance, excellent weather resistance, light weight, easy installation, easy maintenance.
Easy to install, easy to maintenance, fire proof, good insulation, nice appearance
Oversea market & domestic market
1. Certificate: ISO 9001: 2008, CE
2. Material: Q235B & Q345B
3. Design according to customer's requirement
4. Manufacture with high/recognized quality control.
5. Engineer helps to instruct installation
6. Easy to assemble and dismantle
7. Main materials: H beam beam/C purlin/Z purlin/Sandwich panel/Corrugated steel sheet
8. Life: Over 35 years
9. Nice appearance, easy to maintenance
We can provide construction service or engineering instruction overseas. We can produce more than 1000 tons of steel structure in on month. Thus we can build about 40, 000m2 of steel structure building in one month with the making of matching sandwich panels.

. Opinions	1)We can supply all kinds of steel structures, steel building, metal building, modular house,   steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.
	2)We can also make and develop new parts according to customers' drawings and detailed dimensions.
2.Specifications	1)Size: MOQ is 100m2, width X length X eave height, roof slope
	2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
	3) Base: Cement and steel foundation bolts
	4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section!
	5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
	6) C or z purlin: Size from C120~C320, Z100~Z200
	7) Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick,(1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm,
	8)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc
	9)Surface: Two lays of Anti-rust Painting!
	10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ!
3. Design Parameters	If you need we design for you, pls supply us the following parameter together with detail size:
	1)Live load on roof(KN/M2)
	2)Wind speed(KM/H)
	3)Snow load (KG/M2)
	4)Earthquake load if have 5) Demands for doors and windows
	6)Crane  (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
