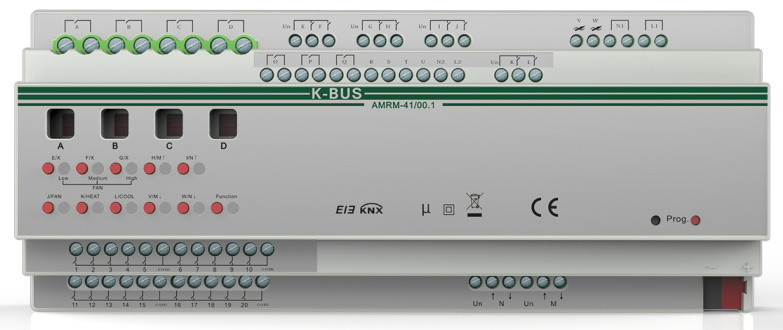

Product Specifications
| Prod Model: |
AMRM-41/00.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Brand Name: |
K-Bus |
| Working Voltage: |
21-30V DC |
| Working Current: |
<12mA |
| Standby Power Consumption: |
<360MW |
| Installation: |
35mm DIN Rail |
| Dimension: |
90 Mm*216 Mm*63mm |
| Task: |
Program |
| Structure: |
Open-Loop |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
Knx |
| Condition: |
New |
| Customized: |
Non-Customized |
Product Description
Detailed Functions:
The room controller compact design enables cover most requirements of the electrical installation of the residential and building control systems and integrate most inputs and output interfaces for a single room automatic control as well as covers all standard functions for a single room control. It offers the following
functions:
1.Switch lighting
2. Control heating/cooling
3. Control fan coil
4. Control blind or shutter
5. Switching of electrical sockets and loads
Detailed Spec:
Item | Parameter | Detailed Spec |
Supply
| Bus voltage | 21~30V DC |
| Current consumption, EIB | <12mA |
| Power consumption, EIB | <360mW |
| Auxiliary supply | 100~240V AC |
| Power consumption of Auxiliary supply | <3W |
| Power consumption, Output 16A | <2W |
| Power consumption, Output 6A | <3W |
| Power consumption, dimmer 1A | <2W |
| Power consumption, HVAC 1A | <1W |
| The max. power consumption of the device | <11.36W |
Connections
| EIB/KNX | Via bus connection terminals(red/black) |
| Outputs, 16A | Screw terminals |
| The device of the upper Inputs/Output | Screw terminals |
| Operation/display | Programming button/ red LED | For assignment of the physical address |
| Green LED flashing | The application layer works normally |
| Housing | IP 20 | EN 60 529 |
| Temperature range | Operation | -5ºC...+45ºC |
| Storage | -25ºC...+55ºC A24 |
| Transport | -25ºC...+70ºC |
Ambient conditions
| Max. air humidity | <93%,except dewing |
| Design | Modular installation device (MDRC) |
| Housing/colour | Plastic housing, grey |
Installation
| On 35mm DIN-Rail | To EN 60 715 |
| Dimension | 90 mm ×216 mm ×63mm |
| Weight | 1KG |
| Input | 20 channels | Can be individually parameterized per Input
|
Application Scenes:
Our K-bus system is based on KNX system,which is a worldwide standard for automation control system. With it's COMFORT,SAFTEY,CONVIENIENCE,SAVING,win praise from all over the world.Widely used in many buildings:such as home , office, hotel, hospital, school, stadium, supermakert,government etc.
Why choose us?
KNX
In order to transfer control data to all building management components, a system is required that does away with the problems of isolated devices by ensuring that all components communicate via one common language: in short, a system such as the manufacturer and application domains independent KNX Bus. This standard is based upon more than 20 years of experience in the market, amongst others with predecessor systems to KNX: EIB, EHS and BatiBUS. Via the KNX medium to which all bus devices are connected (twisted pair, radio frequency, power line or IP/Ethernet), they are able to exchange information.
Bus devices can either be sensors or actuators needed for the control of building management equipment such as: lighting, blinds / shutters, security systems, energy management, heating, ventilation and air-conditioning systems, signaling and monitoring systems, interfaces to service and building control systems, remote control, metering, audio / video control, white goods, etc.
All these functions can be controlled, monitored and signaled via a uniform system without the need for extra control centers.
Guangzhou Video-star Group (abbreviated as GVS) was established in 1999. GVS has been devoting itself to providing its clients with high-quality intelligent home and building control system as well as video door phone products for years. Meanwhile, the group also supplies architectural integration solution for intelligent communities. With painstaking work, GVS has become one of the largest and most outstanding manufacturer and solution provider among its competitors of intelligent building and safety industry worldwide.
Besides, the group is a also a leading manufacturer of CRT modules, TFT modules, CCD cameras and other related security products and PCBA OEM business.
Since 1999, we have imported 3 complete SMT production lines from Korea and other machines such as high speed component placers, screen printers, reflow ovens and automatic wave soldering system. Up to now, we have achieved an annual production capacity of 3, 000, 000 pieces of CRT modules and TFT modules.
We have already obtained the certification of ISO9001 international quality management system and our products have obtained the CE & RoHS Approval. With the principle of "top quality and credit", we will continue to offer high quality products and highly efficient services to our customers.
The group strives to providing its customers with top-ranking intelligent solution by employing independent R&D, innovative technology and superior service. GVS was, is and will be an exploring role for a securer, greener, more comfortable and more intelligent life.
We welcome inquiries and business contacts from clients home and abroad.
