Product Specifications
| Prod Model: |
CGFD 16-12-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Rotary Automatic Small Carbonated Soft Drink Filli |
| Capacity: |
3000bhp |
| Suitable Bottle: |
0.3-2L Plastic Bottle |
| Cap Type: |
28mm or 30mm Plastic Screw Cap |
| Material: |
Food Stage Stainless Steel 304 |
| Control System: |
PLC, Touch Screen |
| Electrical Brand: |
Simens,Omron,Ect |
| Customize: |
Available |
| Service: |
Turnkey Service |
| Warranty: |
1 Year |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Dosing Device: |
Capacity Cup |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
Product Description
Rotary Automatic Small Carbonated Soft Drink Filling Machine
Product Description--Rotary Automatic Small Carbonated Soft Drink Filling MachineThis rotary automatic small carbonated soft drink filling machine works harmoniously with air-conveyor belt (chain plate conveyor belt is optional), it holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.
This rotary automatic small carbonated soft drink filling machine is used to fill aerated beverage filling machine into pet bottle and with screw caps capping function.
This rotary automatic small carbonated soft drink filling machine integrated three function:
1. rinse the empty pet bottle,
2. filling the rinsed bottles,

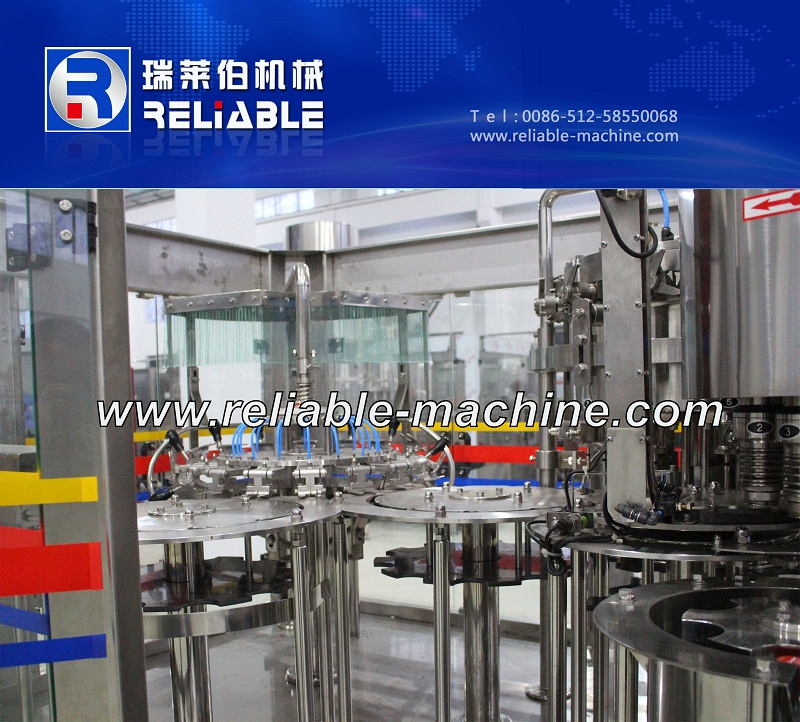

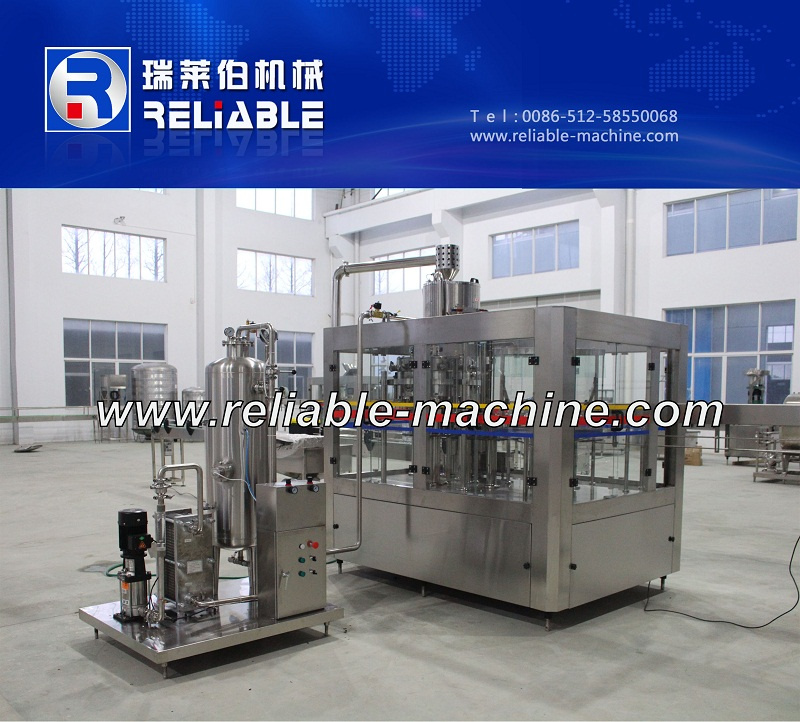

3. capping the filled bottlesProduct Images--Rotary Automatic Small Carbonated Soft Drink Filling Machine
Specification--Rotary Automatic Small Carbonated Soft Drink Filling Machine
Model | CGFD8-8-3 | CGFD16-12-6 | CGFD18-18-6 | CGFD24-24-8 | CGFD32-32-10 | CGFD40-40-10 | CGFD50-50-15 |
| Washing No | 8 | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 3 | 6 | 6 | 8 | 10 | 12 | 15 |
| Production Capacity(500ml b/h) | 1200-1500 | 2500 | 3500-4000
| 7000-7500
| 8000-10000
| 10000
| 12000
|
| Install Capacity(KW) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
| Overall size | 2250*1800*2400 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 | 5450*3210*2400 |
Character--Rotary Automatic Small Carbonated Soft Drink Filling Machine1.It adopts human-machine touch screen control and PLC computerized control.
2.All the parts contacting with material are made from Food Stage SUS304 stainless steel.
3.The primary electric components and pneumatic components introduce international famous products, such as Mitsubishi,Omron and so on.
4.It has a function of high filling precision, reliable capping and low material loss.
5.It can achieve the replacement of different bottles only by exchanging equivalent parts.Company Information--Rotary Automatic Small Carbonated Soft Drink Filling MachineWe are specialized in beverage machine. We offer varies stand-alone devices(such as Processing System, Water Treatment System, Blow Molding System, Filling System, UVT System, Secondary Packing System). Our company has years of design experience and numbers of proprietary technologies. Most of elements employ foreign advanced products. Long warranty time and good service will make you satisfied. Regular processing reports will tell you the production process roundly. We are Reliable-Machine Co.,Ltd. We can be your reliable supplier.The sample service
1.We can send you the video of the running machine.
2.You are always welcome to come to visit our factory, and you may see the operation of the machines here. We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
Customized service
1.We can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.At the same time we will give you our professional suggestion .
After-sales service
1.We will provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.We provide one year warranty with spare parts free.
Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers.
Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
