Rotary Drying Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

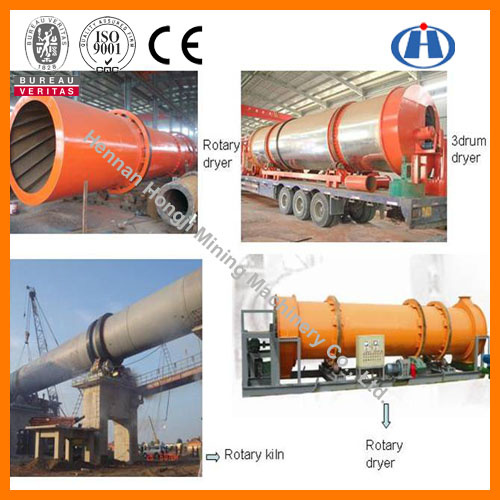

Detailed Product Description of Hongji Rotary dryer:
Rotary dryer, Rotary sand drier, drier, Rotary Dryers
Rotary dryer also named as Drying Machine and Drier.
Drier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc. Its principle of operation: The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.
Rotary dryer is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries. Its advantages are as follows: High dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
Rotary dryer is used for drying materials with a certain humidity or granularity in milling of ores, building materials, metallurgy and chemical industries. Gyro drying machinery has a strong adaptability of materials and it can dry various materials. The operation is very simple and liable. For this reason, it is used widely.
Indirect heat transfer Rotary dryer:
It is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; Therefore, it has been widely used.
Export country of the Rotary dryer:
India, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, Australia, the Middle East and other countries and areas.
Main Technical Parameters of the Rotary dryer:
Specific-ations(m)
|
Capacity(t/h)
|
Main motor
|
Main gear box
|
Weight(t)
|
Power(kw)
|
Model
|
Model
|
Speed reduction ratio
|
ø 1.2*10
|
2.5
|
7.5
|
Y160M-R3
|
ZL50-16-I
|
-----
|
13.5
|
ø 1.5*12
|
3.3-4.9
|
10
|
Y160L-6-B3
|
JZQ500-III-2F
|
-----
|
18.9
|
ø 1.5*15
|
4-6
|
18.5
|
Y200L1-6
|
JZQ500-III-2F
|
-----
|
21
|
ø 1.8*12
|
4-6
|
18.5
|
Y160L-6
|
ZQ50-16II-2
|
16.46
|
22.83
|
ø 2.2*12
|
7-12
|
18.5
|
Y200L7-6
|
JZQ650-III
|
31.5
|
37.6
|
ø 2.2*14
|
7-12
|
22
|
Y200L7-6
|
JZQ650-III
|
31.5
|
40
|
ø 2.2*16
|
12
|
30
|
Y225M-6
|
JZQ750-III
|
31.5
|
45
|
ø 2.4*14
|
12
|
30
|
Y250M-6
|
JZQ750-III
|
31.5
|
51
|
ø 2.4*18
|
10-13
|
37
|
Y250M-6
|
ZL85-13-I
|
27.16
|
54
|
ø 2.4*20
|
10-14
|
37
|
Y250N-6
|
ZL85-13-I
|
27.16
|
54.14
|
ø 3*20
|
25
|
55
|
Y250M-4
|
ZL100-16-I
|
41.52
|
78
|
ø 3*25
|
32-36
|
75
|
YR280M-4
|
ZL100-16-I
|
41.52
|
104.9
|
| Prod Model: |
OD1.5*12, OD1.5*15, OD1.8*12, OD2.2*12, OD2.2*14 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
I. About us:
Located in Zhengzhou, China, Henan Hongji Mine Machinery Co., Ltd. is a joint-stock enterprise, specializing in R&D, manufacture, and sales of large and medium-sized Mining Machinery (Crushing machinery, seperation/ore benefication machinery, screen and so on), NPK Fertilizer Equipment, and Building Material plants like Quick Lime Plant and Cement Plant. Our customers' satisfaction is our ultimate goal, and in order to achieve this, we strive to consistently provide high-quality products at the lowest prices.
II. Our products:
As the largest mine machinery manufacturing enterprise in Zhengzhou, we provide environment-friendly Mining machines, including flotation machines, classifying equipment, magnetic plants, ball mills, spiral classifiers, vibrating screens, crusher, sand making machines, and dryers, NPK Fertilizer Machines including Mixer, Rotary Dryer, Pelletizer, Coating Machine, Drum Screen, Bagging machineetc. These products have received ISO9001: 2000 certification and SGS certification, and are popular in Vietnam, Myanmar, Bengal, Laos, Philippines, Peru, Iran, India, etc.
We also provide preferential wearing parts when you purchase our products.
III. Applications:
Our products are widely used in the production operations of crushing plants, cement plants, lime plants, and concentrating mills. Their specific applications are as follows:
Ball mills grind many types of ore and other materials, and are widely used in mining, the chemical industry, etc.
Spiral classifiers are used in the distribution of ore, the grading of ore and fine silt in gravity mills, and for grading granularity of ore pulp in metal ore-dressing processes. They are also useful for de-sliming and dehydrating in the ore-washing process.
Vibrating screens can be used for grading materials in coal dressing, metallurgy, mining, power stations, construction and chemical industries, etc.
Rotary kilns are suitable for mechanical, physical, and chemical treatments of solid materials. They are applicable in the building industry, metallurgy industry, chemical industry, etc.
IV. Quality and Cost Control:
To ensure the quality of our products, we have formed cooperation with scientific research institutes in European countries, thus enabling us to introduce internationally advanced processing techniques and production lines to our operation. In addition, our incoming raw materials and our finished products are inspected 4 times before they are accepted or sold. We purchase our raw materials in large quantities, which help to reduce costs. We also save on labor costs by training our staff in-house. These steps and more enable us to provide crushing machines, mining machines, sand making machines, rolling mills, and cement equipment at a lower price than other manufacturers in this field.
V. Customer Services:
1. Pre-sale services:
We will happily assist you in getting the information you need to make a decision on which products best fit your needs. We want you to feel good about your purchase.
We can design and manufacture products as per your special requirements.
If required, we can train your technical personnel for you.
2. Services during the sale:
We strictly adhere to the principle of "the customer first". Your needs and concerns will be addressed to your complete satisfaction.
We can help clients to draft solutions to their specific situations.
3. After-sale services:
Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.
If needed, we can help you to install your equipment and train your operators on-site.
Inspection personnel will be sent to examine your equipment regularly.
If there is any problem, we will take measures to solve it immediately, on-site.
Technical exchanging is also provided for you.
For larger items, we can provide additional maintenance.
