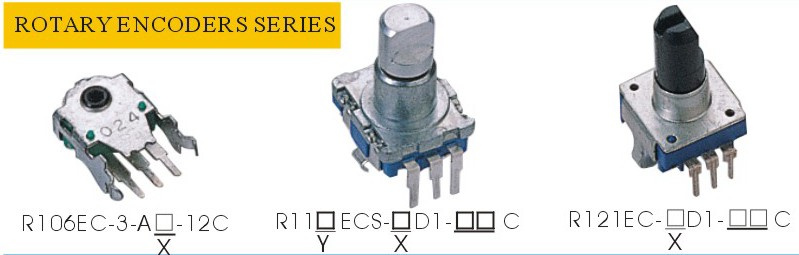

Product Specifications
| Prod Model: |
R11_EC-_A1- |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rotary Encoder |
| Working Principle: |
Incremental |
| Readout Mode: |
Contact |
Product Description
2014 Electronic Component Used For Remote Control, equipemnt, devices Made In China Rotary Potentiometer/ encoder / tact switch / trimmer potentiometer / slide potentiometer with Competitive price and Best Quality
Mechanical characteristics:
Total rotational angle: 360 centigrade
Click torque: 5-19mN. M(51-194gf. Cm)
Push pull strength: 80N(8kgf)
Electrical characteristics:
Ratings: 5V DC, 10mA
Withstand voltage: 300V AC
Insulation resistance: More than 100M Ohm at DC 300V
Contact resistance: 1 Ohm max.
Resolution: A. B 20(30) Pulses/Rotation
Phase-difference: 0.25T+_0.1T(must be measured without detent)
Durability:
Rotational life: 15, 000 cycles
Packing:
MOQ; 1500PCS
100PCS/Bag, 500PCS/Plastic Box, 3000PCS/Carton
Dimension of Carton: 47cm× 35cm× 40cm
Sample:
1. Sample: We can provide free samples for most of items.
2. Samples time: Need 3-5 days to preparing the samples,
Except some especially items.
Quality Guarantee:
1. Strictly quality Check before leave factory
2. We have ISO9001 ROHS certificates.
Advantage:
1. We are en end manufacturer
2. New design Accepted: As your requirement
3. Good Quality: Strict quality control and good reputation
5. Fast & Cheap Delivery: Big discount from express agent
(Long-term Contract with DHL, FedEx, EMS, UPS, TNT)
Electronics China (Huizhou) Co., Ltd. [formerly Mika Electronics ] was established in 1988 and represents a SinoForeign joint venture withthe ECCGroup-the major shareholder. The Company s pecializ es inthe manufacture of a wide range of pass IV e components including Carbon Potentiometers, Rotary Encoders and Tactile Switches with ISO9000 Certification. Todaythefactory encompass es an area of 12, 000 s quare meters employing 300fully-trained staff. Most of the high precis ion equipment has been importedfromGermany, U. S. A, Slov enia and Taiwan. Ins trumental in the success of the Company has beenthe very s trong emphasis put on good management and of the expansion of our production capacity.
We also offer as a managing principle Quality, Service, Price&Value-or what we term QSPV-and invite you if you were considering of outsourcing, or wanting to do low-cost development in China that we forge a partnership and build a strong relationship that can be backed up with our 20 years experience in the industry. The company utilizes a wide network of contacts & suppliers across China and when called upon Chinese language search engines to locate obsolete or allocated product {or products} to help you save time and money.
We also offer as part of our commitment to you the following services:
1. Flexibility with minimum order requirements.
2. Scheduled deliveries.
3. Consolidated shipments either by air or sea.
4. Full product datasheets.
5. Technical support.
6. Simple ordering procedure: Email, fax or mail.
7. Competitive shipping rate
Please contact ustoday inthe very s trictes t of confidence with a detailed overv iew of your product specification, order
Quantity and/or other requirements. Enquiries must accompanyfull and precise detailed information including
Specifications, drawings and/or hyperlink.
