Product Specifications
| Prod Model: |
KD-2258 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Top |
| Accuracy: |
Plus-Minus5% |
| Sample Size: |
60*50mm |
| Sample Retraction: |
0-28mm |
| Port: |
Ningbo/Shanghai |
| Delivery Time: |
10 Days After Receve The Payment |
Product Description
Detailed Product Description
Slice thickness range: 0.5 to 60um
Machine size: 500*460*300mm
Machine weight: 23.3 kg
Slice thickness: Selection

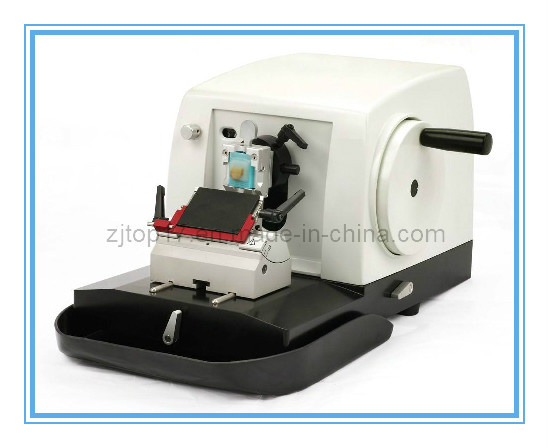

Name: Rotary microtome
Model: KD-2258
Rotary microtome is the new generation of slicing machine to adapt to modern histopathological examination needs. This machine adopts imported roller guide, high-precision roller screw, has reasonable design, compact, high precision, stable and reliable, is the ideal product of the modern histopathology sectioning.
1. Performance:
1. The machine is designed into the ergonomic design, comfortable and long time operation with no sense of fatigue
2. Using either standard section or disposable section can be obtained in ideal section
3. Clamp sample can be arbitrary three-dimensional axle locking, to adjust the angle of tangent plane of the sample
4. On the right side of the operation hand wheel can be locked, with maximum security and convenience
5. Specimen retracting function, specimen system can exchange
6. Tool post can be longitudinal, lateral movement, without the use of finger contact slice knife
7. The tool post and blade are equipped with built-in red safety guard bar, covering the blade length, to protect the safety of users; The pushing blade rod can be conveniently replaced blade.
8. Convenient N steel tool post and E type disposable blade knife rest
9. The seal box cover without disassembly, convenient cleaning
10. Large capacity and convenient disassembly of the waste trough
2. Technical parameter
1. Slice thickness range: 0.5- 60μ M
2. Slice thickness selection:
0.5~2μ M 0.5μ M increments
2~20μ M 1μ M increments
20~60μ M 5μ M increments
3. Specimen orienting system: Axes X and Y 8°
| Accuracy | ± 5% |
| Section adjustable minimum graduation value | 0.5 μm |
| Maximum sample size | 60 x 50mm |
| Horizontal specimen stroke | 28mm |
| Vertical specimen stroke | 60mm |
| Sample retraction | 0 ~ 28mm |
| Machine size | 500x460x300mm |
| Shaving slice thickness | 1 ~ 60 μ M |
